Air Conditioning (A/C) Compressor - 3.5L Ti-VCT: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft® PAG Refrigerant Compressor Oil YN-12-D | WSH-M1C231-B |

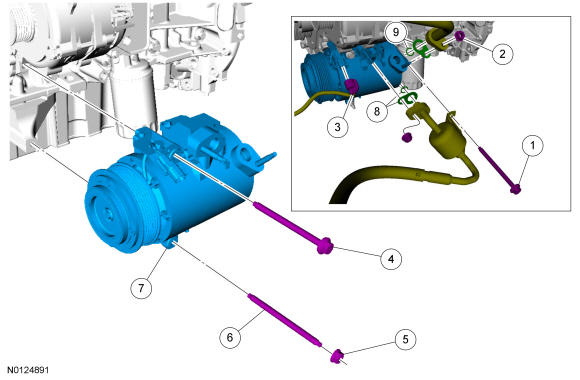

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W714077 | Rear A/C compressor bolt | - | - | 25 Nm (18 lb-ft) |
| 2 | W520413 | A/C compressor fitting nut (2 required) | - | - | 20 Nm (177 lb-in) |
| 3 | - | A/C clutch field coil electrical connector (part of 14300) | - | - | - |
| 4 | W714077 | Upper A/C compressor bolt | - | - | 25 Nm (18 lb-ft) |
| 5 | W520413 | A/C compressor nut | - | - | 25 Nm (18 lb-ft) |
| 6 | W712610 | A/C compressor stud | - | - | 9 Nm (80 lb-in) |
| 7 | 19703 | A/C compressor | - | - | - |
| 8 | 19B596 | O-ring seal and gasket seal kit | - | - | - |
| 9 | 19B596 | O-ring seal and gasket seal kit | - | - | - |
