Blower Motor Speed Control: Removal

  1. 1.

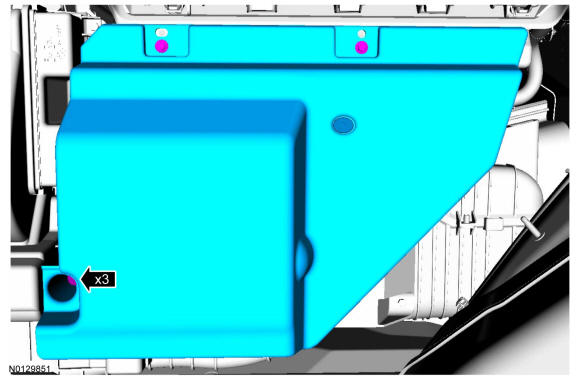

    Remove the 3 RH lower instrument panel insulator retainers and the RH lower instrument panel insulator.
GFD36894Courtesy of FORD MOTOR COMPANY

  1. 2.

    Disconnect the blower motor speed control electrical connector.

  1. 3.

    Remove the 2 blower motor speed control screws.

  1. 4.

    Remove the blower motor speed control.
