Compressor to Condenser Discharge Line - 3.5L Ti-VCT: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft® PAG Refrigerant Compressor Oil YN-12-D | WSH-M1C231-B |

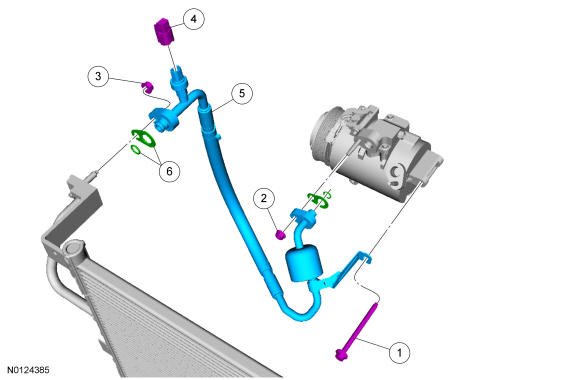

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W714077 | Rear A/C compressor bolt | - | - | 25 Nm (18 lb-ft) |
| 2 | W520413 | A/C compressor discharge fitting nut | - | - | 20 Nm (177 lb-in) |
| 3 | W520413 | A/C condenser inlet fitting nut | - | - | 20 Nm (177 lb-in) |
| 4 | - | A/C pressure transducer electrical connector (part of 14290) | - | - | - |
| 5 | 19972 | Compressor-to-condenser discharge line | - | - | - |
| 6 | 19B596 | O-ring seal and gasket seal kit (2 required) | - | - | - |
