Condenser Core - 2.0L GTDI, 3.5L GTDI: Removal
WARNING:
Before beginning any service procedure in this service information, refer to SAFETY WARNINGS
- 1.NOTE: The O-ring seals used on this vehicle are not interchangeable with all similarly sized O-ring seals used on other Ford products. Use only the O-ring seals specified for this vehicle.
- 2.
Recover the refrigerant. Refer to Air Conditioning (A/C) System Recovery, Evacuation and Charging .
- 3.
Remove the radiator. REFER to Engine Cooling , Radiator - 2.0L GTDI, 3.5L GTDI.
- 4.

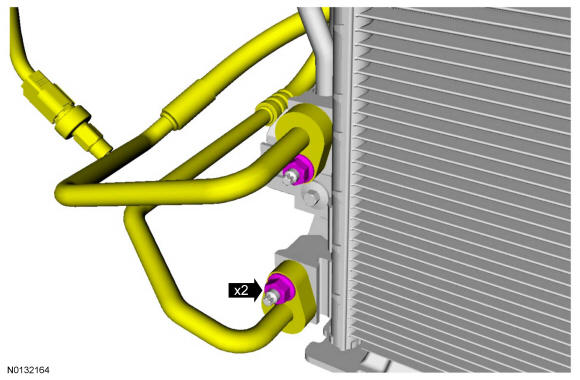

Remove the condenser outlet and inlet fitting bolts and disconnect the fittings.- To install, tighten to 15 Nm (133 lb-in).
- Discard the O-ring seals.
- 5.

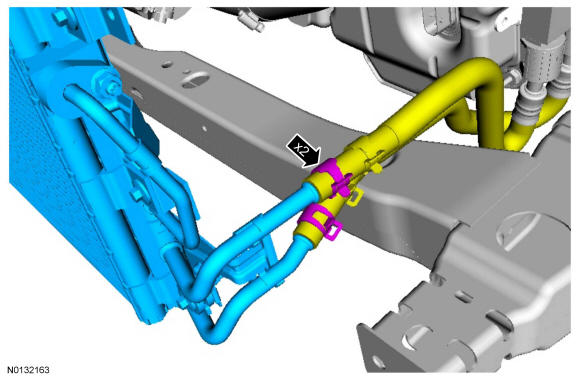

Remove the condenser.- Release the 2 transmission cooler hose clamps and disconnect the lines from the condenser core.
