Condenser Core - 3.5L Ti-VCT: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft® PAG Refrigerant Compressor Oil YN-12-D | WSH-M1C231-B |

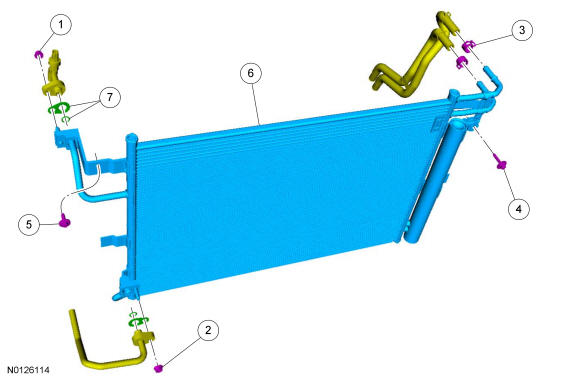

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W520413 | Condenser inlet fitting nut | - | - | 15 Nm (133 lb-in) |
| 2 | W520413 | Condenser outlet fitting nut | - | - | 15 Nm (133 lb-in) |
| 3 | - | Transmission cooler hose clamp (2 required) (part of 7R081) | - | - | - |
| 4 | W707393 | Condenser bolt | - | - | 6 Nm (53 lb-in) |
| 5 | W503924 | Condenser bolt | - | - | 6 Nm (53 lb-in) |
| 6 | 19712 | Condenser core | - | - | - |
| 7 | 19B596 | O-ring seal and gasket seal kit (2 required) | - | - | - |
