Heater Core: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

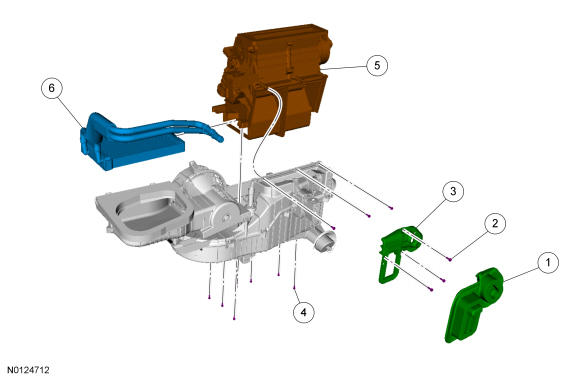

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 19B588 | Dash panel seal | - | - | - |
| 2 | W701696 | Heater core tube bracket screw (3 required) | - | - | - |
| 3 | 18A456 | Heater core tube bracket | - | - | - |
| 4 | W701696 | Plenum chamber screw (10 required) | - | - | - |
| 5 | 18471 | Plenum chamber | - | - | - |
| 6 | 18476 | Heater core | - | - | - |
