Heater Core and Evaporator Core Housing: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft® PAG Refrigerant Compressor Oil YN-12-D | WSH-M1C231-B |

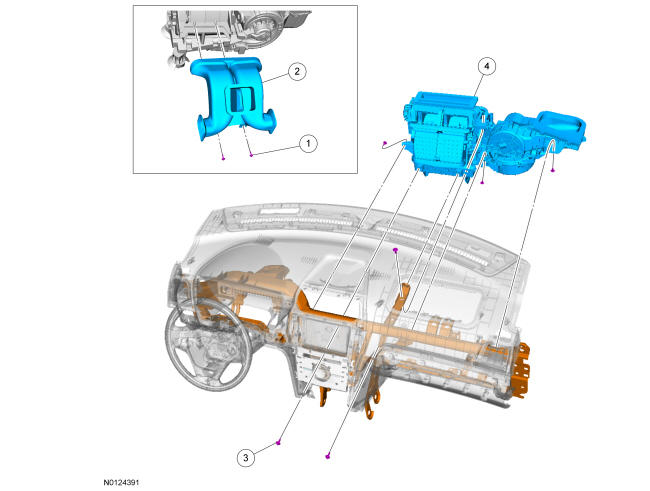

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W707607 | Floor duct screw (2 required) | - | - | - |
| 2 | 18C433 | Floor duct | - | - | - |
| 3 | N807316 | Heater core and evaporator core housing bolt (6 required) | - | - | 7 Nm (62 lb-in) |
| 4 | 19850 | Heater core and evaporator core housing | - | - | - |
