Heating Ventilation Air Conditioning (HVAC) Module: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

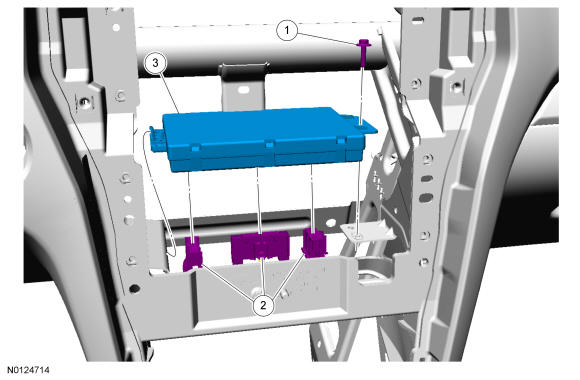

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W707628 | HVAC module screw | - | - | - |
| 2 | - | HVAC electrical connector (3 required) (part of 14401) | - | - | - |
| 3 | 19980 | HVAC module | - | - | - |
