Connector End View (C3154C) - AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE
Connector: C3154C
Description
AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE
Color
GY
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VME01 (GN-VT) |
18 |
CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 1 |
|
|
2 |
VME02 (VT) |
18 |
CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
* |
* |
Not Used |
|
|
5 |
SBP05 (GY-RD) |
16 |
FUSE - 5 OR CIRCUIT BREAKER |
|
|
6 |
SBP05 (GY-RD) |
16 |
FUSE - 5 OR CIRCUIT BREAKER |
|
|
7 |
* |
* |
Not Used |
|
|
8 |
* |
* |
Not Used |
|
|
9 |
RME01 (GY) |
18 |
CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 1 |
|
|
10 |
RME02 (YE) |
18 |
CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 |
|
|
11 |
* |
* |
Not Used |
|
|
12 |
* |
* |
Not Used |
|
|
13 |
GD348 (BK-YE) |
16 |
GROUND - PILLAR C OR QUARTER PANEL RIGHT |
|
|
14 |
GD348 (BK-YE) |
16 |
GROUND - PILLAR C OR QUARTER PANEL RIGHT |
|
|
15 |
* |
* |
Not Used |
|
|
16 |
* |
* |
Not Used |
|

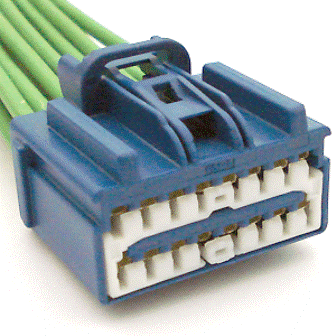

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-959 |
Service Part Number: 3U2Z-14S411-BDAB Gauge: 14 Pin material: Silver Cavities: 16 Vehicle Uses Radio - Amplifier |
