Connector End View (C3239) - FUEL PUMP CONTROL MODULE
Connector: C3239
Description
FUEL PUMP CONTROL MODULE
Color
DK GY
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CE608 (VT-GN) |
12 |
VPWR FUEL |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
VE225 (YE-OG) |
20 |
FUEL PUMP COMMAND (FPC) |
|
|
4 |
GD348 (BK-YE) |
12 |
GROUND - PILLAR C OR QUARTER PANEL RIGHT |
|
|
5 |
CE515 (YE-GY) |
12 |
FUEL PUMP POWER (FPPWR) |
|
|
6 |
CR167 (YE-VT) |
22 |
EVENT NOTIFICATION SIGNAL (ENS) |
|
|
7 |
VE518 (BN-WH) |
20 |
MONITOR - FUEL PUMP (FPM) |
|
|
8 |
RE515 (WH-BN) |
12 |
FUEL PUMP RETURN (FPRTN) |
|

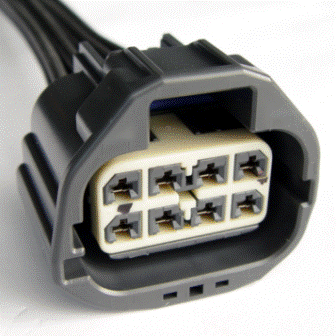

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-521 |
Service Part Number: 3U2Z-14S411-TZA Gauge: 12 Pin material: Tin Cavities: 8 Vehicle Uses Fuel Pump/Sending Unit Motor - Power Window - LH - Front Motor - Power Window - LH - Rear Motor - Power Window - RH - Front Motor - Power Window - RH - Rear Relay - Fuel Pump |
