Driver Airbag: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

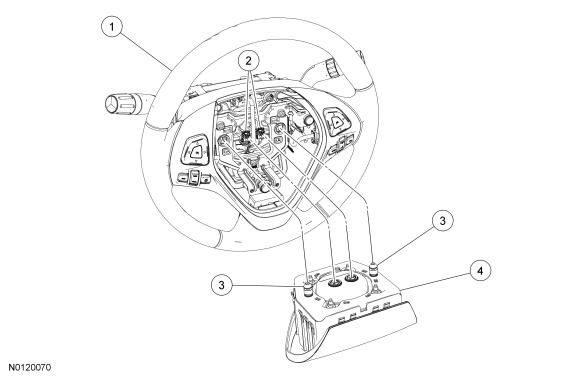

Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 3600 | Steering wheel |
| 2 | - | Driver air bag module electrical connectors (part of 14A664) |
| 3 | - | Driver air bag module locking pins (part of 043B13) |
| 4 | 043B13 | Driver air bag module |
