Front Impact Severity Sensor: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

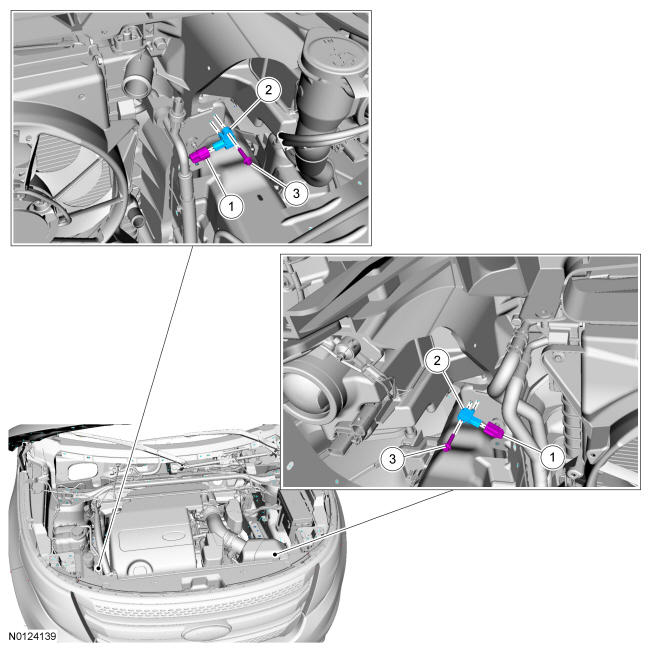

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | Front impact severity sensor electrical connector (part of 14290) | - | - | - |
| 2 | 14B345 | Front impact severity sensor | - | - | - |
| 3 | W505256 | Front impact severity sensor bolt | - | - | 12 Nm (106 lb-in) |
