Occupant Classification System (OCS) Sensor: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

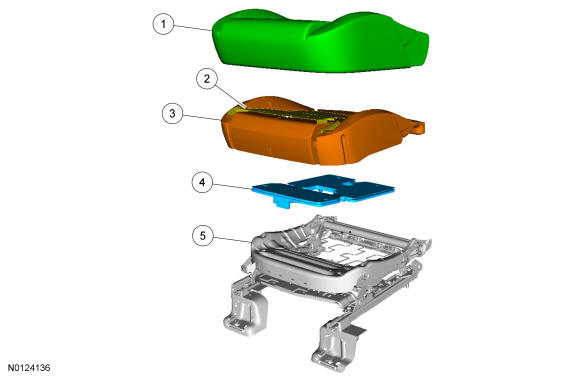

OE OCS
| Item | Part Number | Description |
|---|---|---|
| 1 | 62900 | Cushion cover |
| 2 | - | Cushion heater mat (part of OE OCS) (if equipped) |
| 3 | - | Cushion foam pad (part of OE OCS) |
| 4 | - | OCS (bladder and sensor/module) (part of OE) |
| 5 | 61710 | Seat track |

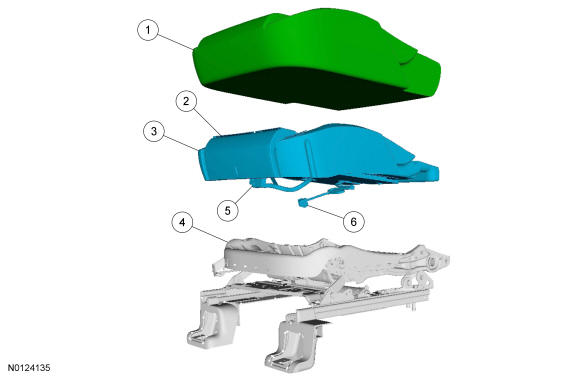

OCS Service Kit
| Item | Part Number | Description |
|---|---|---|
| 1 | 62900 | Cushion cover |
| 2 | - | Cushion heater mat (part of 632A22) (if equipped) |
| 3 | 632A22 | OCS |
| 4 | 61710 | Seat track |
| 5 | - | OCS sensor/module (part of 632A22) |
| 6 | - | Cushion heater mat electrical connector (part of 632A22) (if equipped) |

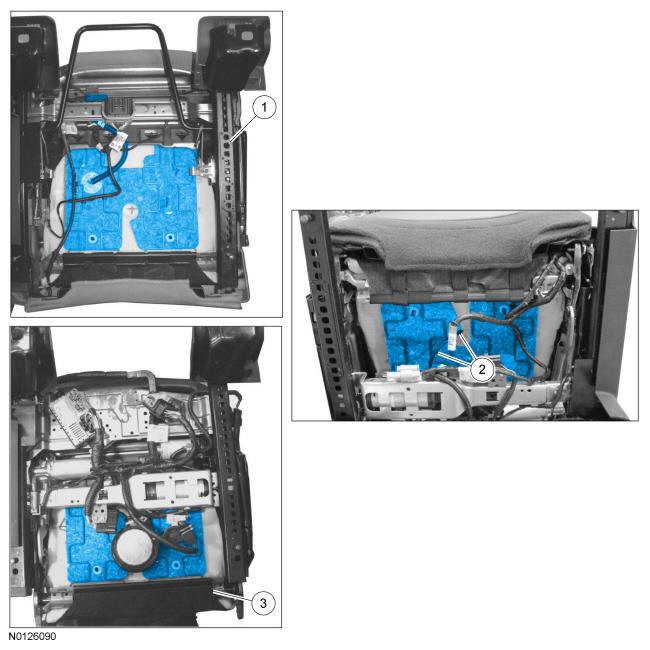

OCS Service Kit Identification
| Item | Part Number | Description |
|---|---|---|
| 1 | - | OCS without heated or climate controlled seat option |
| 2 | - | Occupant Classification System (OCS) with heated seat option and heater mat wire harness pigtail through the cushion foam pad |
| 3 | - | Occupant Classification System (OCS) with climate controlled seat option |
