Passenger Airbag: Installation

1.

WARNING: Before installing the passenger air bag module assembly:
- Inspect the passenger air bag module and instrument panel/deployment chute cavity for any damage or foreign material.
- Remove any foreign material from the passenger air bag module and instrument panel/deployment chute cavity.
- Install new parts if damaged.

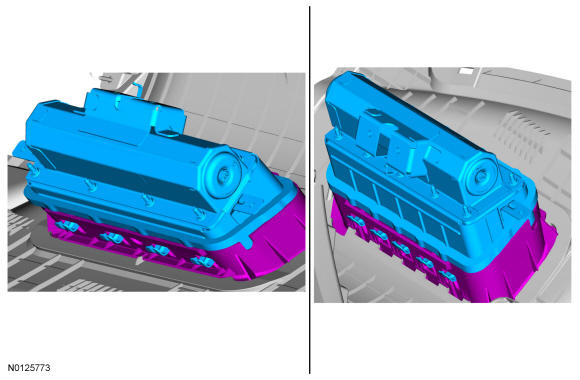

Failure to follow these instructions may result in the passenger air bag deploying incorrectly, which increases the risk of serious personal injury or death in a crash. Position the passenger air bag module into the deployment chute engaging all the hook retainers.

GFD37856

Courtesy of FORD MOTOR COMPANY

2.

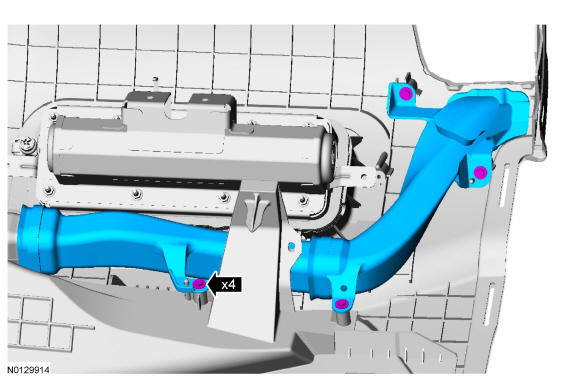

GFD37854

Courtesy of FORD MOTOR COMPANY

3.

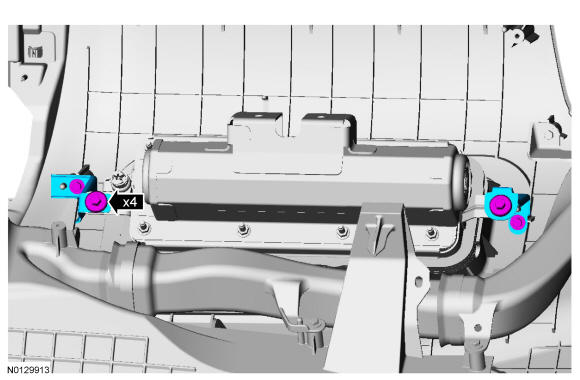

GFD37853

Courtesy of FORD MOTOR COMPANY

4.

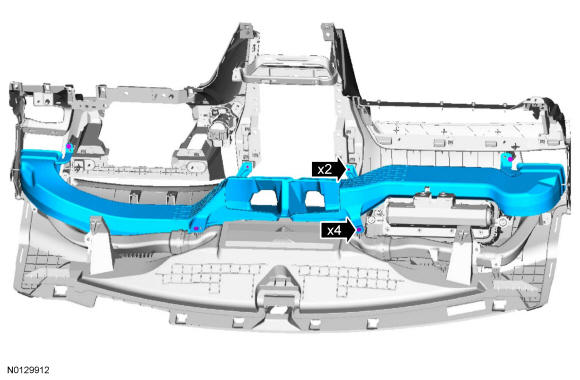

GFD37852

Courtesy of FORD MOTOR COMPANY

5.

Install the instrument panel upper section. REFER to Instrument Panel and Console .

6.

Repower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering - With Intelligent Access (IA) or Supplemental Restraint System (SRS) Depowering and Repowering - Without Intelligent Access (IA) .
