Safety Canopy - Vehicles Built up to 30 July 2012: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

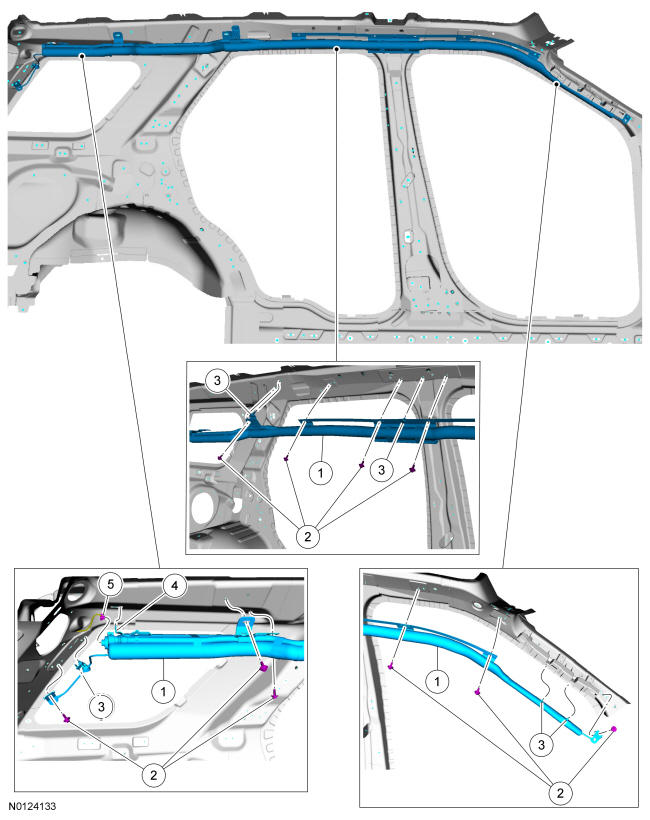

RH Safety Canopy Module
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 042D94 | Safety Canopy module | - | - | - |
| 2 | W706681 | Safety Canopy module bolts | - | - | 11 Nm (97 lb-in) |
| 3 | - | Pin-type retainers (part of 042D94) | - | - | - |
| 4 | - | Safety Canopy module T-hook (part of 042D94) | - | - | - |
| 5 | - | Safety Canopy module electrical connector (part of 14A005) | - | - | - |

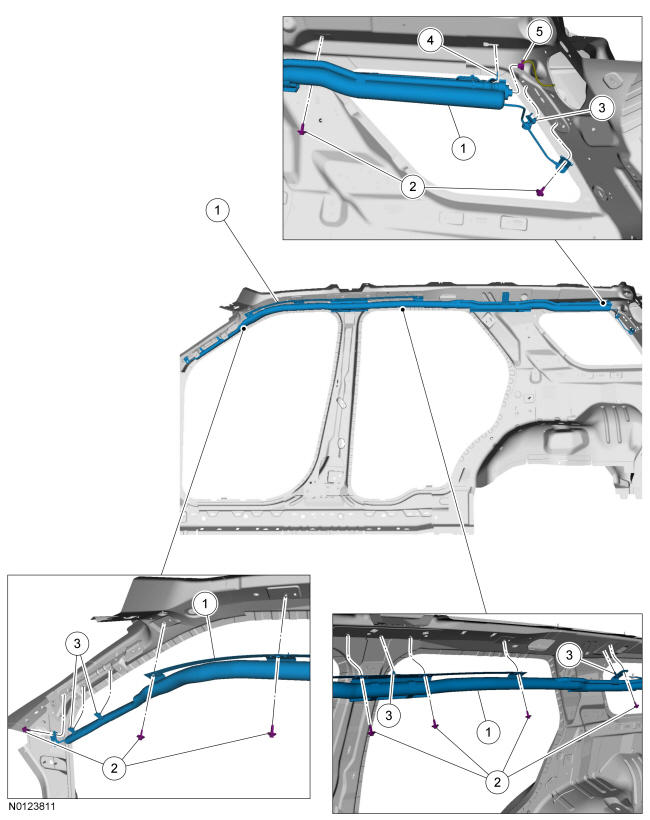

LH Safety Canopy Module
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 042D95 | Safety Canopy module | - | - | - |
| 2 | W706681 | Safety Canopy module bolts | - | - | 11 Nm (97 lb-in) |
| 3 | - | Pin-type retainers (part of 042D95) | - | - | - |
| 4 | - | Safety Canopy module T-hook (part of 042D95) | - | - | - |
| 5 | - | Safety Canopy module electrical connector (part of 14A005) | - | - | - |
