Seat Position Sensor: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

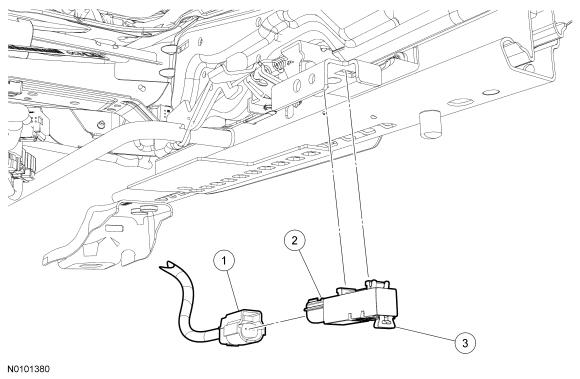

Exploded View
NOTE:
RH shown in illustration, LH similar.
NOTE:
Manual seat shown in illustration, power seat similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Seat position sensor electrical connector (part of 14D230 RH 14D231 LH) |
| 2 | 14B416 | Seat position sensor |
| 3 | - | Seat position sensor locking tab (part of 14B416) |
