Side Airbag: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

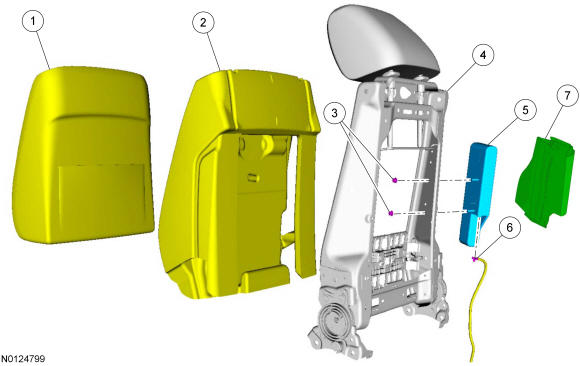

Exploded View

GFD37872Courtesy of FORD MOTOR COMPANY
Item Service Part Number Description Tool Number Material Name Notes
1 64416 RH 64417 LH Backrest cover - - -
2 64810 RH 64811 LH Backrest foam pad - - -
3 W520111 Side air bag module nuts - - 10 Nm (89 lb-in)
4 61018 Backrest frame - - -
5 611D10 RH 611D11 LH Side air bag module - - -
6 14C687 Side air bag module jumper harness - - -
7 610E38 Side air bag module deployment chute - - -
