Connector End View (C3265A) - DUAL CLIMATE CONTROLLED SEAT MODULE (DCSM)
Connector: C3265A
Description
DUAL CLIMATE CONTROLLED SEAT MODULE (DCSM)
Color
BK
Harness
14D230
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
A |
CHS07 (GY-BU) |
14 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER |
|
|
B |
RHS07 (BU) |
14 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER |
|
|
C |
CHS06 (BU-BN) |
14 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER |
|
|
D |
RHS06 (WH) |
14 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER |
|
|
E |
CBX01 (GN-RD) |
14 |
FUSE - 28 OR CIRCUIT BREAKER |
|
|
F |
CBX01 (GN-RD) |
14 |
FUSE - 28 OR CIRCUIT BREAKER |
|
|
G |
CHS02 (YE-BU) |
14 |
CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER |
|
|
H |
RHS02 (BU-OG) |
14 |
CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER |
|
|
J |
CHS01 (GY-VT) |
14 |
CTRL MOD. - HOT/COLD SEAT # DRIVER BACK HEATER |
|
|
K |
RHS01 (WH-VT) |
14 |
CTRL MOD. - HOT/COLD SEAT # DRIVER BACK HEATER |
|
|
L |
* |
* |
Not Used |
|
|
M |
GD903 (BK-WH) |
14 |
GROUND - PILLAR C OR QUARTER PANEL RIGHT |
|

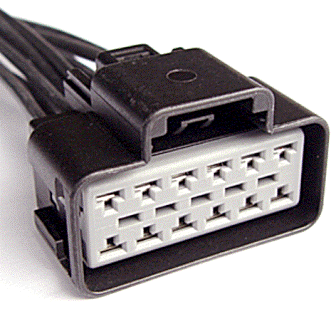

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-928 |
Service Part Number: 3U2Z-14S411-ZMB Gauge: 12 Pin material: Tin Cavities: 12 Vehicle Uses Module - Climate Control Seat Switch - Seat (driver) Switch - Seat (passenger) |
