Side Impact Sensor - C-Pillar: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

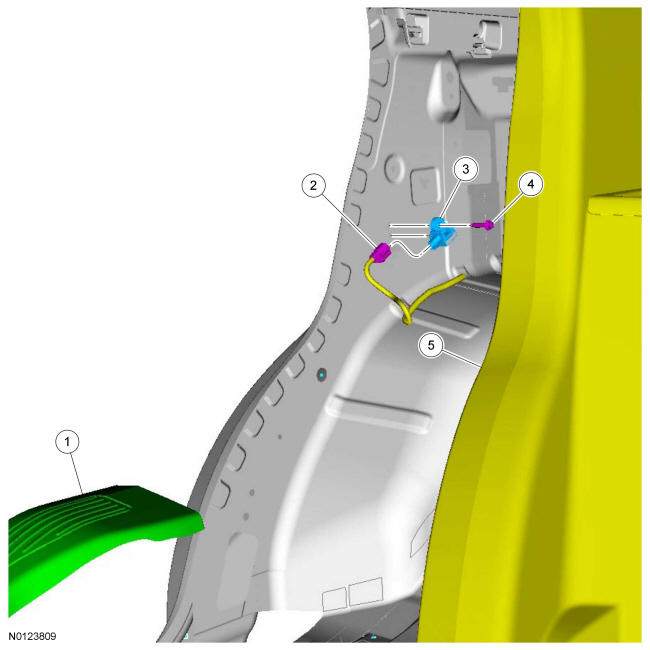

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 13228 RH 13229 LH | Rear door scuff plate | - | - | - |
| 2 | - | Side impact sensor electrical connector (part of 14A005) | - | - | - |
| 3 | 14B435 | Side impact sensor | - | - | - |
| 4 | W505256 | Side impact sensor bolt | - | - | 12 Nm (106 lb-in) |
| 5 | 31012 RH 31013 LH | Quarter trim panel | - | - | - |
