Side Impact Sensor - Front Door: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

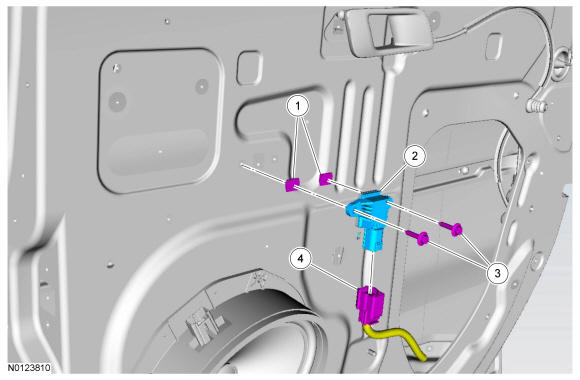

Exploded View

GFD37887Courtesy of FORD MOTOR COMPANY
Item Service Part Number Description Tool Number Material Name Notes
1 W713617 Insert nuts - - -
2 14B345 Side impact sensor - - -
3 W705314 Side impact sensor bolts - - 2 Nm (18 lb-in)
4 - Side impact sensor electrical connector (part of 14630 RH 14631 LH - - -
