Connector End View (C3265B) - DUAL CLIMATE CONTROLLED SEAT MODULE (DCSM)
Connector: C3265B
Description
DUAL CLIMATE CONTROLLED SEAT MODULE (DCSM)
Color
BK
Harness
14D230
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
* |
* |
Not Used |
|
|
2 |
VHS27 (WH-OG) |
18 |
SENSOR - CUSHION TEMP. PASSENGER |
|
|
3 |
RHS10 (BU-OG) |
18 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR CUSHION TEMP. |
|
|
4 |
VHS36 (YE-BU) |
18 |
SENSOR - BACK TEMP. PASSENGER |
|
|
5 |
RHS20 (GN-BU) |
18 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR BACK TEMP. |
|
|
6 |
* |
* |
Not Used |
|
|
7 |
VHS26 (VT) |
20 |
SENSOR - CUSHION TEMP. DRIVER |
|
|
8 |
RHS05 (YE-VT) |
20 |
CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP. |
|
|
9 |
CHS14 (GN) |
20 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER INDICATOR HIGH |
|
|
10 |
CHS29 (WH-BU) |
20 |
SWITCH - SEAT HEATER FRONT DRIVER SIDE |
|

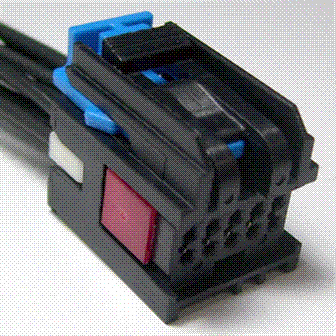

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1174 |
Service Part Number: AU2Z-14S411-BLA Gauge: 20 Pin material: Tin Cavities: 10 Vehicle Uses Module - Climate Control Seat |
