Connector End View (C3265C) - DUAL CLIMATE CONTROLLED SEAT MODULE (DCSM)
Connector: C3265C
Description
DUAL CLIMATE CONTROLLED SEAT MODULE (DCSM)
Color
BK
Harness
14D230
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VDB06 (GY-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
|
|
2 |
VDB07 (VT-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
|
|
3 |
VHS23 (BN-BU) |
18 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION BLOWER SPEED CONTROL |
|
|
4 |
VHS21 (BU-WH) |
18 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK BLOWER SPEED CONTROL |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
* |
* |
Not Used |
|
|
7 |
RHS08 (VT-WH) |
18 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN |
|
|
8 |
CHS08 (BN-YE) |
18 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN |
|
|
9 |
* |
* |
Not Used |
|
|
10 |
* |
* |
Not Used |
|
|
11 |
VHS18 (BN-GN) |
20 |
CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION BLOWER SPEED CONTROL |
|
|
12 |
CHS09 (GY) |
20 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER INDICATOR LOW |
|
|
13 |
* |
* |
Not Used |
|
|
14 |
* |
* |
Not Used |
|
|
15 |
RHS03 (GY-OG) |
18 |
CTRL MOD. - HOT/COLD SEAT # DRIVER FAN |
|
|
16 |
CHS03 (GN-BN) |
18 |
CTRL MOD. - HOT/COLD SEAT # DRIVER FAN |
|

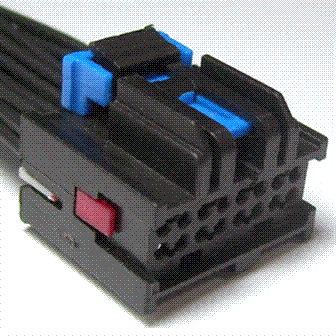

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1165 |
Service Part Number: AU2Z-14S411-BGA Gauge: 20 Pin material: Tin Cavities: 16 Vehicle Uses Module - Climate Control Seat |
