Connector End View (C3267) - PARKING AID MODULE (PAM)
Connector: C3267
Description
PARKING AID MODULE (PAM)
Color
BK
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CBP34 (VT-BN) |
20 |
FUSE - 34 OR CIRCUIT BREAKER |
|
|
2 |
CMP09 (BN-BU) |
20 |
CTRL MOD. - PARKING AID # SOUNDER REAR |
|
|
3 |
VDB04 (WH-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
|
|
4 |
GD351 (BK-GN) |
20 |
GROUND - PILLAR D RIGHT |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
RMP09 (BU-GN) |
20 |
CTRL MOD. - PARKING AID # SOUNDER REAR |
|
|
7 |
VMP20 (GY-OG) |
20 |
SENSOR - PARKING AID # AUTOPARK FRONT LEFT SIDE |
|
|
8 |
VMP21 (WH-BN) |
20 |
SENSOR - PARKING AID # AUTOPARK FRONT RIGHT SIDE |
|
|
9 |
LMP07 (BU-WH) |
22 |
CTRL MOD. - PARKING AID # SENSORS REAR |
|
|
10 |
CMP18 (GN-BN) |
22 |
SWITCH - PARKING AID |
|
|
11 |
VDB05 (WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
|
|
12 |
RMP07 (GN-WH) |
22 |
CTRL MOD. - PARKING AID # SENSORS REAR |
|
|
13 |
VMP16 (YE-GY) |
22 |
SENSOR - PARKING AID # REAR # (RIGHT INNER) |
|
|
14 |
VMP14 (WH-OG) |
22 |
SENSOR - PARKING AID # REAR # (LEFT INNER OR MIDDLE) |
|
|
15 |
VMP15 (YE-GN) |
22 |
SENSOR - PARKING AID # REAR # (LEFT OUTER) |
|
|
16 |
VMP17 (YE-OG) |
22 |
SENSOR - PARKING AID # REAR # (RIGHT OUTER) |
|

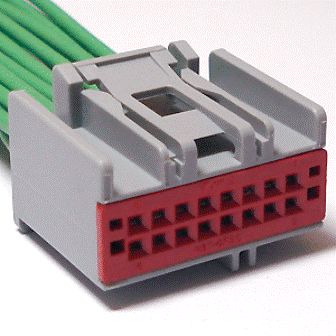

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-968 |
Service Part Number: 3U2Z-14S411-DPB Gauge: 18 Pin material: Silver Cavities: 16 Vehicle Uses Module - Reverse Park Aid (RPA) Radio Switch - Power Window - Driver Switch - Reverse Park Aid |
