Connector End View (C3343) - SEAT CONTROL SWITCH, SECOND ROW, LEFT
Connector: C3343
Description
SEAT CONTROL SWITCH, SECOND ROW, LEFT
Color
GY
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
* |
* |
Not Used |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
CLN09 (YE-GN) |
20 |
RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING) |
|
|
4 |
CPS56 (GN-BN) |
20 |
SWITCH - 2ND ROW SEAT RELEASE LEFT |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
* |
* |
Not Used |
|

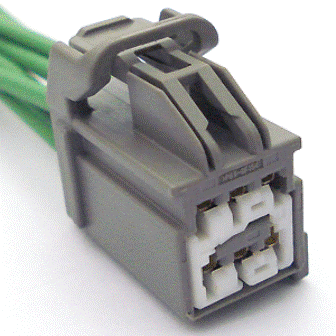

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-962 |
Service Part Number: 3U2Z- 14S411-JBB Gauge: 14 Pin material: Silver Cavities: 6 Vehicle Uses Mating Connector WPT-1299 Switch - Gear Shift Select/Neutral Safety Switch - Overdrive Cancel Switch - Power Sliding Door |
