Connector End View (C3370) - SCUFF PLATE LAMP, PASSENGER
Connector: C3370
Description
SCUFF PLATE LAMP, PASSENGER
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CLN25 (VT) |
22 |
RELAY - PUDDLE LAMPS (KERB ILLUM.) |
|
|
2 |
GD214 (BK-BU) |
22 |
GROUND - INSTRUMENT PANEL STRUCTURE |
|
|
3 |
* |
* |
Not Used |
|

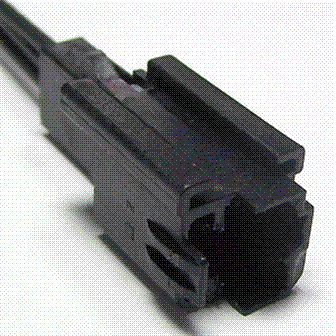

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1103 |
Service Part Number: 3U2Z-14S411-EXAB Gauge: 18 Pin material: Tin (greased) Cavities: 3 Vehicle Uses Lamp - PRNDL Indicator Module - Radio Power Antenna Switch - Overdrive Cancel |
