Safety Belt Buckle and Inflator - 2nd Row, 60 Percent Seat: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

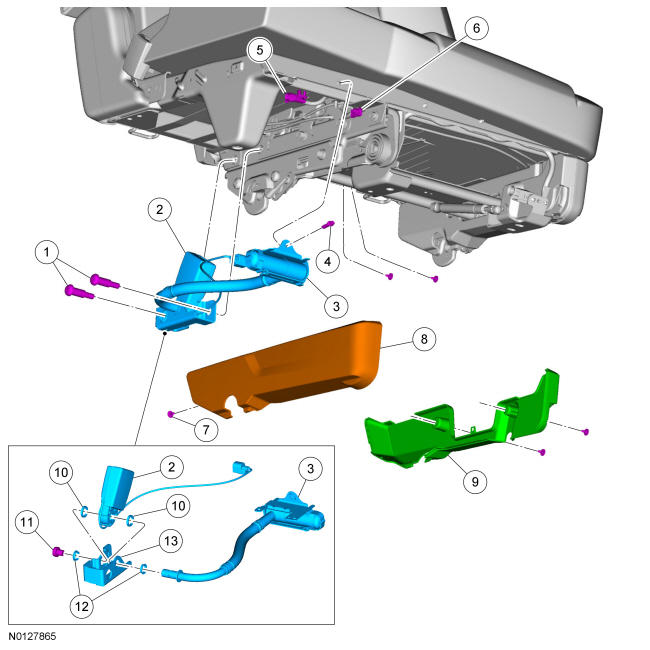

Exploded View
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W790116 | Safety belt buckle bracket bolts | 48 Nm (35 lb-ft) | - | - |
| 2 | - | Safety belt buckle assembly | - | - | - |
| 3 | - | Inflator | - | - | - |
| 4 | W505252 | Safety belt inflator bolt | 3.5 Nm (31 lb-in) | - | - |
| 5 | Part of 14B687 | Safety belt buckle switch electrical connector | - | - | - |
| 6 | Part of 14B687 | Inflator electrical connector | - | - | - |
| 7 | 56910 | Screws (5 required) | - | - | - |
| 8 | 7463388 | Riser RH inner cover | - | - | - |
| 9 | 7463386 | Riser RH outer cover | - | - | - |
| 10 | - | Washers (2 required) | - | - | - |
| 11 | - | Safety belt buckle bolt | 40 Nm (30 lb-ft) | - | - |
| 12 | - | Bushings | - | - | - |
| 13 | - | Safety belt buckle bracket | - | - | - |
