Safety Belt Buckle - 3rd Row: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

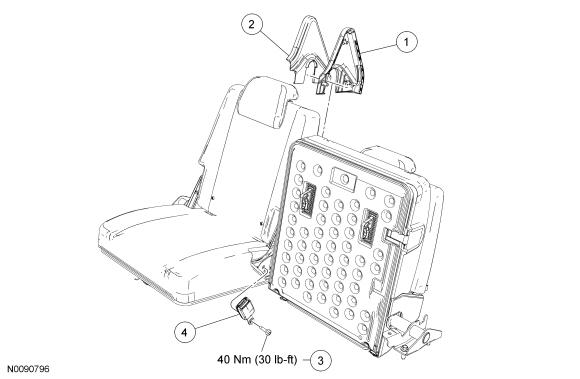

Exploded View
Courtesy of FORD MOTOR COMPANY| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 61349 | LH inboard pivot cover | - | - | - |
| 2 | 61348 | RH inboard pivot cover | - | - | - |
| 3 | - | RH safety belt buckle bolt (part of 613D48) | - | - | 40 Nm (30 lb-ft) |
| 4 | 613D48 | RH safety belt buckle | - | - | - |
