Safety Belt Inflator - 2nd Row, 40 Percent: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

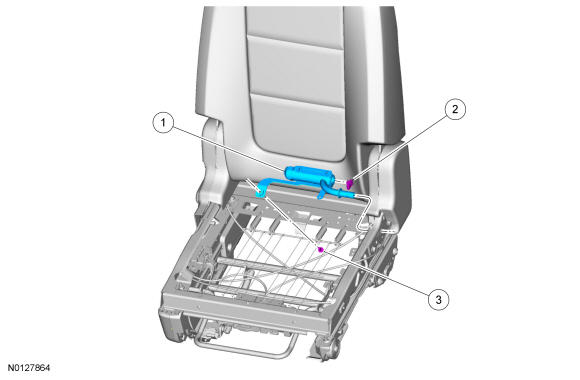

Exploded View
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 7861202 RH 7861203 LH | Safety belt inflator | - | - | |
| 2 | Part of 14B686 | Safety belt inflator electrical connector | - | - | - |
| 3 | W505252 | Safety belt inflator bolt | 3.5 Nm (31 lb-in) | - |
