Safety Belt Retractor - 2nd Row, Outboard, without Inflatable Safety Belts: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

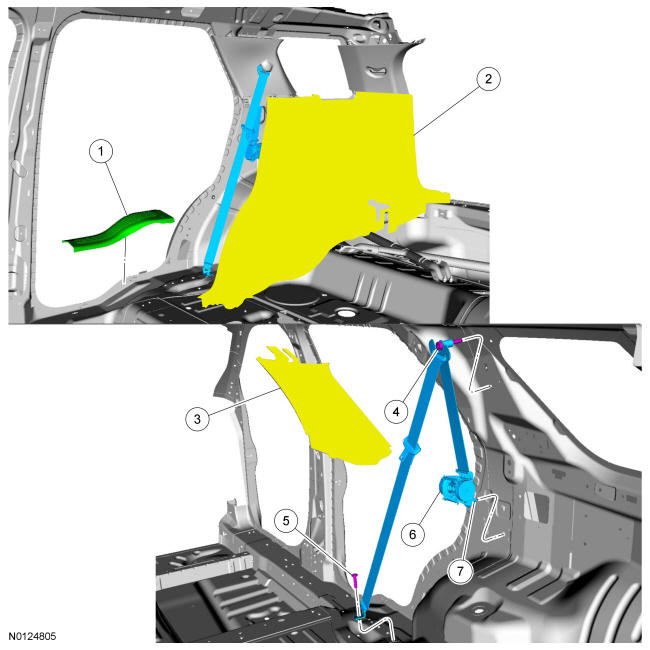

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 13228 RH 13229 LH | Rear door scuff plate | - | - | - |
| 2 | 31012 RH 31013 LH | Quarter trim panel | - | - | - |
| 3 | 31004 RH 31005 LH | C-pillar trim panel | - | - | - |
| 4 | - | D-ring bolt (part of 611B68 RH 611B69 LH) | - | - | 40 Nm (30 lb-ft) |
| 5 | W504775 | Outboard safety belt anchor bolt | - | - | 40 Nm (30 lb-ft) |
| 6 | 611B68 RH 611B69 LH | Outboard safety belt retractor | - | - | - |
| 7 | - | Outboard safety belt retractor bolt (part of 611B68 RH 611B69 LH) | - | - | 40 Nm (30 lb-ft) |
