Safety Belt Retractor - 2nd Row, Outboard, with Inflatable Shoulder Belt: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

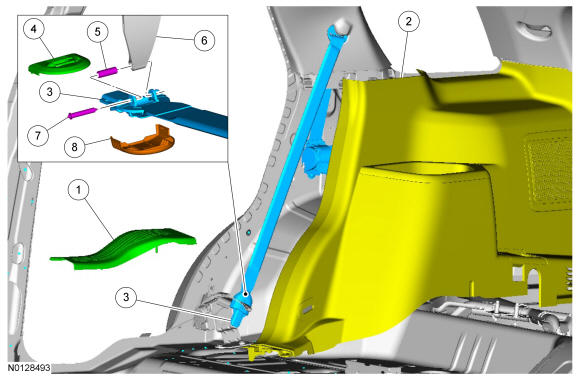

Exploded View
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 13228 RH 13229 LH | Rear door scuff plate trim panel | - | - | - |
| 2 | 31012 RH 31013 LH | Quarter trim panel | - | - | - |
| 3 | Part of 611B68 RH 611B69 LH | Safety belt tongue | - | - | - |
| 4 | 611B46 | Lower safety belt tongue cover | - | - | - |
| 5 | - | Bushing | - | - | Do not install the safety belt retractor if the bushing is missing. |
| 6 | Part of 611B68 RH 611B69 LH | Safety belt retractor lap belt web loop | - | - | - |
| 7 | - | Pin | - | - | - |
| 8 | 611B46 | Upper safety belt tongue cover | - | - | - |

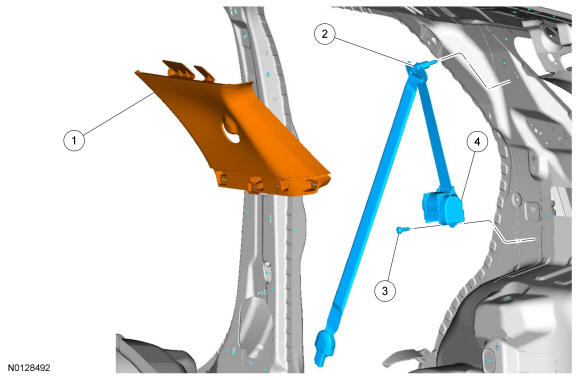

| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 31004 | C-pillar trim panel | - | - | - |
| 2 | Part of 611B68 RH 611B69 LH | D-ring bolt | 40 Nm (30 lb-ft) | - | - |
| 3 | W504777 | Safety belt retractor bolt | 40 Nm (30 lb-ft) | - | - |
| 4 | 611B68 RH 611B69 LH | Inflatable shoulder safety belt retractor | - | - | - |
