Safety Belt Retractor - 2nd Row, Outboard, Lap Belt, with Inflatable Safety Belts: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

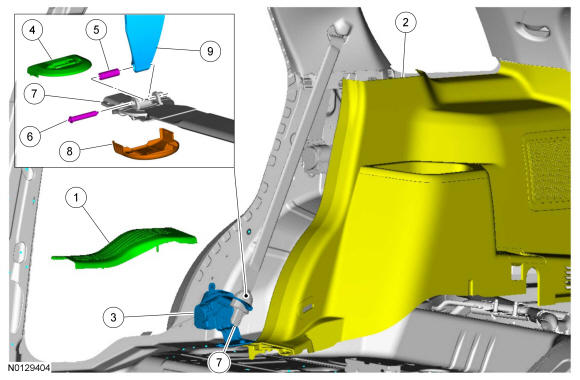

Exploded View
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 13228 RH 13229 LH | Rear door scuff plate trim panel | |||
| 2 | 31012 RH 31013 LH | Quarter trim panel | |||
| 3 | 611B68 RH 611B69 LH | Lap safety belt retractor | |||
| 4 | - | Lower safety belt tongue cover | |||
| 5 | - | Bushing | Do not install the safety belt retractor if the bushing is missing. | ||
| 6 | - | Pin | |||
| 7 | Part of 611B68 RH 611B69 LH | Safety belt tongue | |||
| 8 | - | Upper safety belt tongue cover | |||
| 9 | Part of 611B68 RH 611B69 LH | Safety belt web loop |

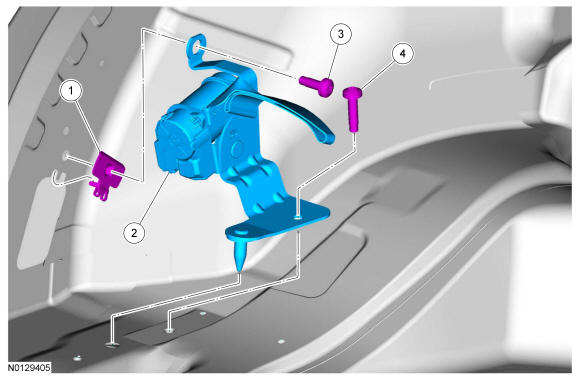

| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | A62570 | J-nut | - | - | - |
| 2 | 611B68 RH 611B69 LH | Lap safety belt retractor | - | - | - |
| 3 | W504775 | Lap safety belt retractor upper bolt | 40 Nm (30 lb-ft) | - | - |
| 4 | Part of 611B68 RH 611B69 LH | Lap safety belt retractor lower bolt | 40 Nm (30 lb-ft) | - | - |
