Safety Belt Retractor - 3rd Row: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

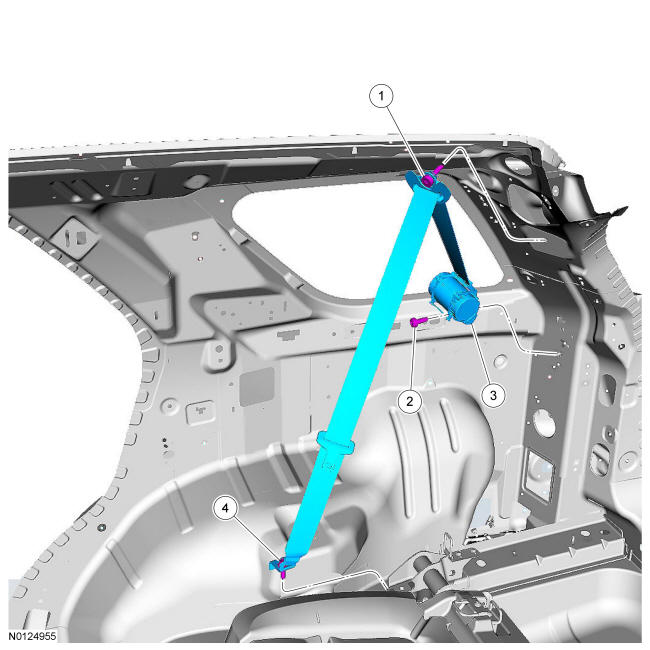

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | D-ring bolt (part of 611B68 RH 611B69 LH) | - | - | 40 Nm (30 lb-ft) |
| 2 | W504775 | Safety belt retractor bolt | - | - | 40 Nm (30 lb-ft) |
| 3 | 611B68 RH 611B69 LH | Safety belt retractor | - | - | - |
| 4 | - | Safety belt anchor bolt (part of 611B68 RH 611B69 LH) | - | - | 40 Nm (30 lb-ft) |
