Safety Belt Retractor and Pretensioner: Removal

WARNING: All seatbelt components must be inspected and corrected as part of any collision repair. Inspect all seatbelt components as prescribed by Seatbelt Procedure After a Collision found in GENERAL PROCEDURES . Failure to follow this instruction may result in incorrect operation of the seatbelt system and increase the risk of serious personal injury or death in a crash.

WARNING: Never disassemble or tamper with seatbelt deployable components, including pretensioners, load limiters and inflators. Never back probe deployable device electrical connectors. Tampering or back probing may cause an accidental deployment and result in personal injury or death.

NOTE: Removal steps in this procedure may contain installation details.

1. 1.

   Depower the Supplemental Restraint System (SRS). REFER to Supplemental Restraint System - With Intelligent Access (IA) or REFER to Supplemental Restraint System - Without Intelligent Access (IA).

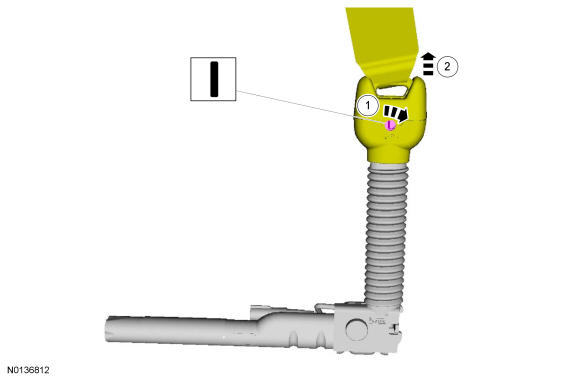

1. 2.



   1. 1.

      Flat-bladed screwdriver.

   1. 2.

      -

Courtesy of FORD MOTOR COMPANY

1. 3.

   Remove the B-pillar trim panel. REFER to Interior Trim and Ornamentation .

1. 4.

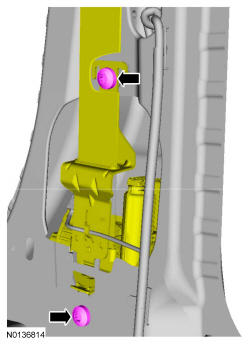

   1. 1.

      25 Nm (18 lb-ft).

Courtesy of FORD MOTOR COMPANY

1. 5.


   NOTE: RH safety belt retractor and pretensioner shown in illustration, LH similar.

   1. 1.

      40 Nm (30 lb-ft).

Courtesy of FORD MOTOR COMPANY

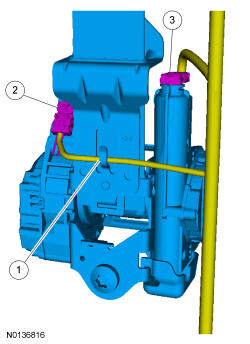

1. 6.

   For RH safety belt retractor and pretensioner.

Courtesy of FORD MOTOR COMPANY

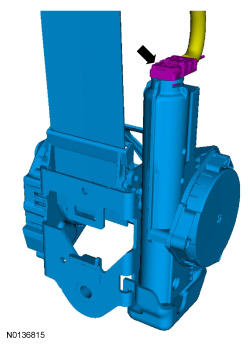

1. 7.

   For LH safety belt retractor and pretensioner.

Courtesy of FORD MOTOR COMPANY
