Connector End View (C3643) - FUEL PRESSRE SENSOR
Connector: C3643
Description
FUEL PRESSRE SENSOR
Color
Harness
14407
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VE830 (GN-WH) |
18 |
SENSOR - FUEL LOW PRESSURE (FLP) |
|
|
2 |
RE407 (YE-VT) |
18 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) |
|
|
3 |
LE230 (BN-BU) |
18 |
CTRL MOD. - POWERTRAIN # REFERENCE VOLTAGE (VREF) |
|

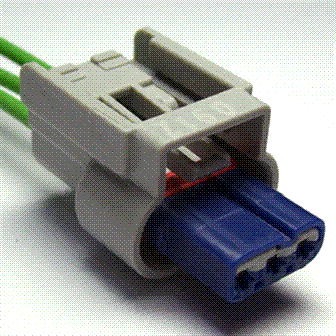

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1308 |
Service Part Number: CU2Z-14S411-AVA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Coil - Ignition Sensor - Fuel Low Pressure |
