Connector End View (C3645) - SAFETY BELT INFLATOR, 2ND ROW, RIGHT

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CR125 (BU-BN)

20

CTRL MOD. - SEAT BELT INFLATOR ROW 2 RH SIDE OUTBOARD +

2

RR125 (GN)

20

CTRL MOD. - SEAT BELT INFLATOR ROW 2 RH SIDE OUTBOARD -

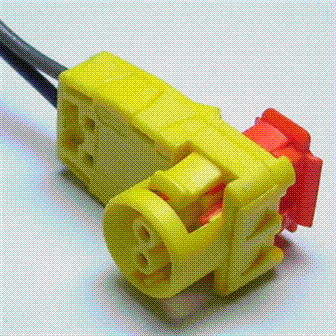

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1467

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BKB

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses

Pretensioner - Seat Belt (Driver)

Pretensioner - Seat Belt (Passenger)

Squib - Airbag (Driver)

Squib - Airbag (Passenger)

Pigtail Kit Part Number

WPT-1227

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BKA

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses

Sensor - Side Impact

Squib - Airbag (Driver)

Squib - Airbag (Passenger)
