Connector End View (C3646) - SAFETY BELT BUCKLE SWITCH, 2ND ROW, LEFT
Connector: C3646
Description
SAFETY BELT BUCKLE SWITCH, 2ND ROW, LEFT
Color
BK
Harness
14B687
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CR204 (VT) |
20 |
SENSOR - SEAT BELT BUCKLE ROW 2 LH SIDE |
|
|
2 |
GD233 (BK) |
20 |
GROUND - COWL SIDE/PILLAR A LEFT |
|

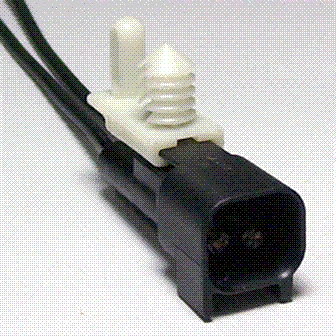

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1186 |
Service Part Number: BU2Z-14S411-AKA Gauge: 16 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Speaker - Tweeter - LH - Front Speaker - Tweeter - LH - Rear Speaker - Tweeter - RH - Front Speaker - Tweeter - RH - Rear Switch - Seatbelt |
