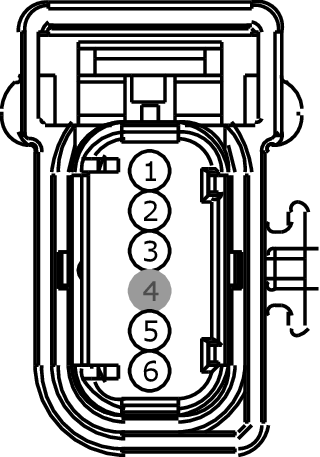

Connector End View (C3238) - SAFETY BELT BUCKLE, PASSENGER
Connector: C3238
Description
SAFETY BELT BUCKLE, PASSENGER
Color
Harness
14D230
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VR210 (BU-BN) |
20 |
SENSOR - SEAT BELT TENSION FRONT PASSENGER OUTBOARD |
|
|
2 |
LR142 (YE-BU) |
20 |
CTRL MOD. - SENSOR SEAT BELT TENSION FRONT PASSENGER OUTBOARD |
|
|
3 |
GD901 (BK) |
20 |
GROUND - PASSENGER SEAT RESTRIANTS |
|
|
4 |
* |
* |
Not Used |
|
|
5 |
CR203 (GY-VT) |
20 |
SENSOR - SEAT BELT BUCKLE FRONT PASSENGER OUTBOARD |
|
|
6 |
GD901 (BK) |
20 |
GROUND - PASSENGER SEAT RESTRIANTS |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1329 |
Service Part Number: DU2Z-14S411-EA Gauge: 20 Pin material: Tin Cavities: 6 Vehicle Uses Antenna - Keyless Entry Handle - Decklid Switch - Keyless Entry Switch - Seatbelt |
