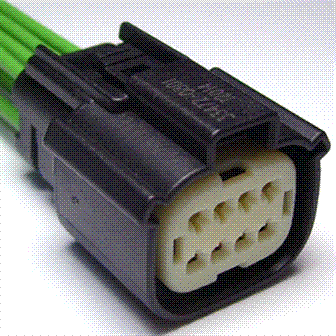

Connector End View (C4819) - LIFTGATE LATCH / UNLATCH ASSEMBLY
Connector: C4819
Description
LIFTGATE LATCH / UNLATCH ASSEMBLY
Color
Harness
14A583
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CPR64 (VT-OG) |
22 |
LATCH - LIFTGATE # LATCH SWITCH HALF |
|
|
2 |
CPR66 (GY-YE) |
22 |
LATCH - LIFTGATE # RATCHET SWITCH |
|
|
3 |
CPR65 (BU-GN) |
22 |
LATCH - LIFTGATE # LATCH SWITCH FULL |
|
|
4 |
CPR68 (YE) |
22 |
LATCH - LIFTGATE # SECTOR GEAR SWITCH 2 |
|
|
5 |
CPR61 (BN) |
14 |
CTRL MOD. - POWER LIFTGATE # CINCH |
|
|
6 |
CPR67 (VT) |
22 |
LATCH - LIFTGATE # SECTOR GEAR SWITCH 1 |
|
|
7 |
CPR62 (WH-BU) |
14 |
CTRL MOD. - POWER LIFTGATE # UNCINCH |
|
|
8 |
GD349 (BK-GY) |
20 |
GROUND - PILLAR D LEFT |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1276 |
Service Part Number: CU2Z-14S411-ALA Gauge: 18 Pin material: Silver Cavities: 8 Vehicle Uses Connector - Inline |
