Instrument Cluster

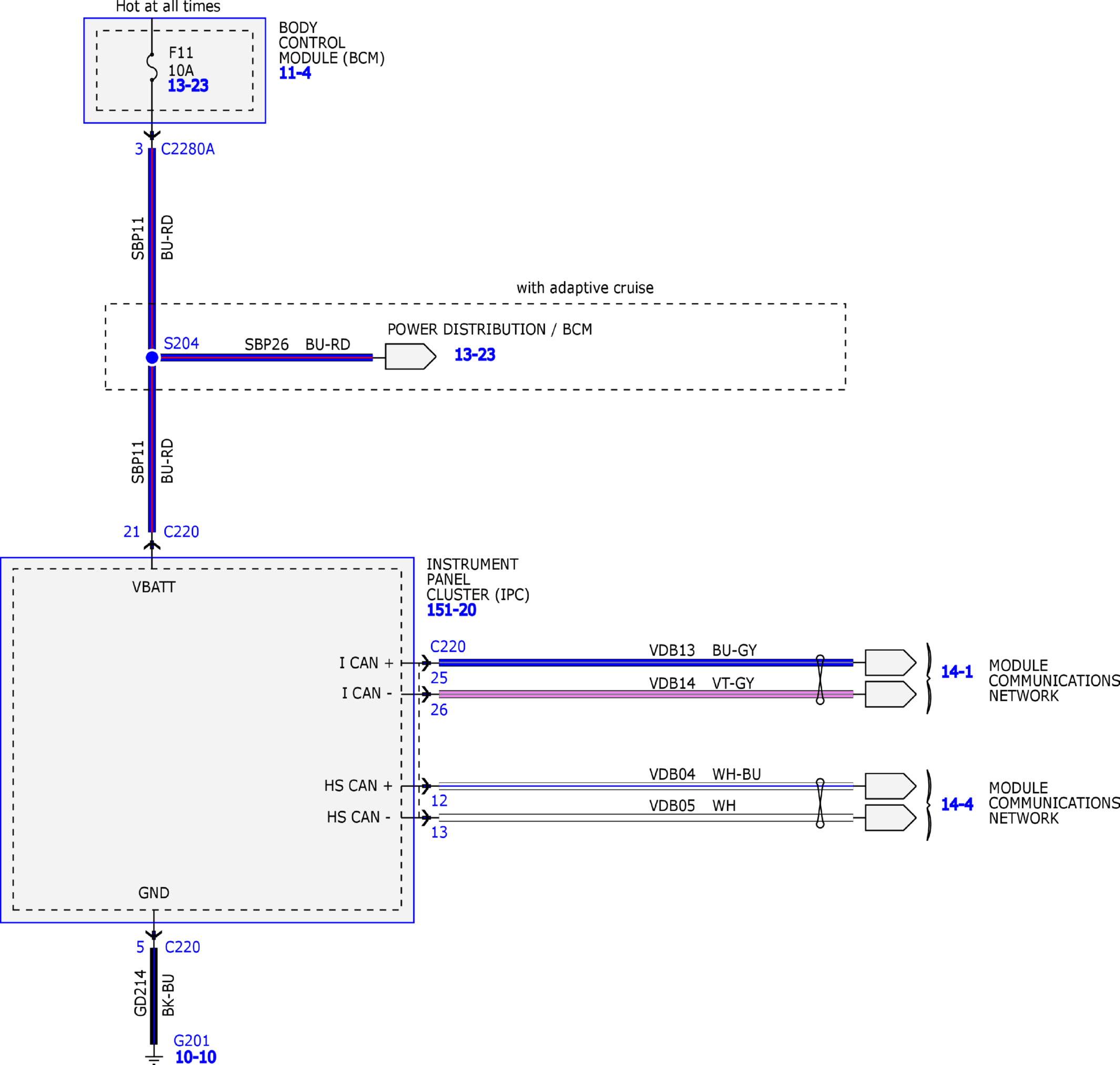

Fig 1: Instrument Cluster System Wiring Diagrams (1 Of 6)
GFDW12435Courtesy of FORD MOTOR COMPANY

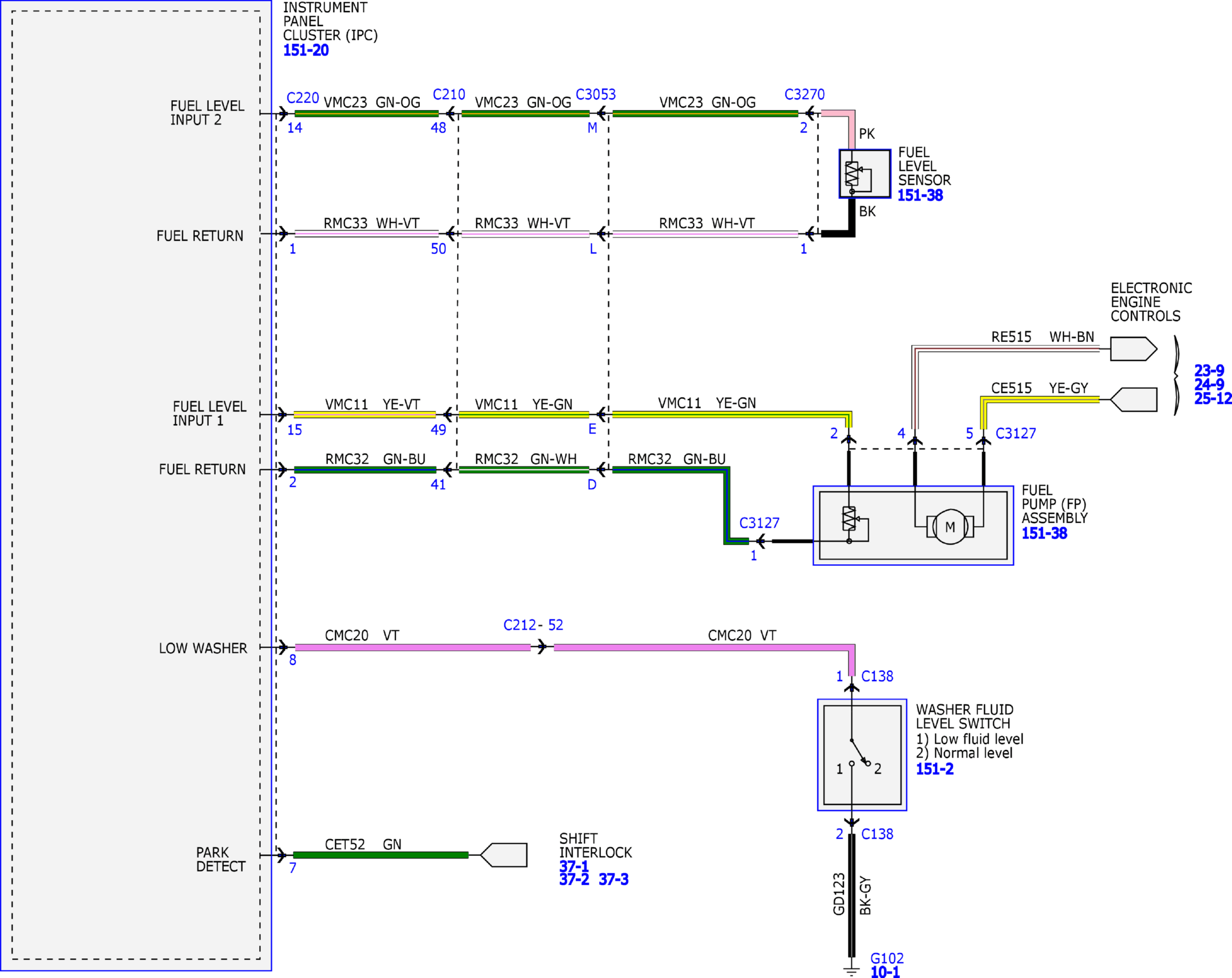

Fig 2: Instrument Cluster System Wiring Diagrams (2 Of 6)
GFDW12436Courtesy of FORD MOTOR COMPANY

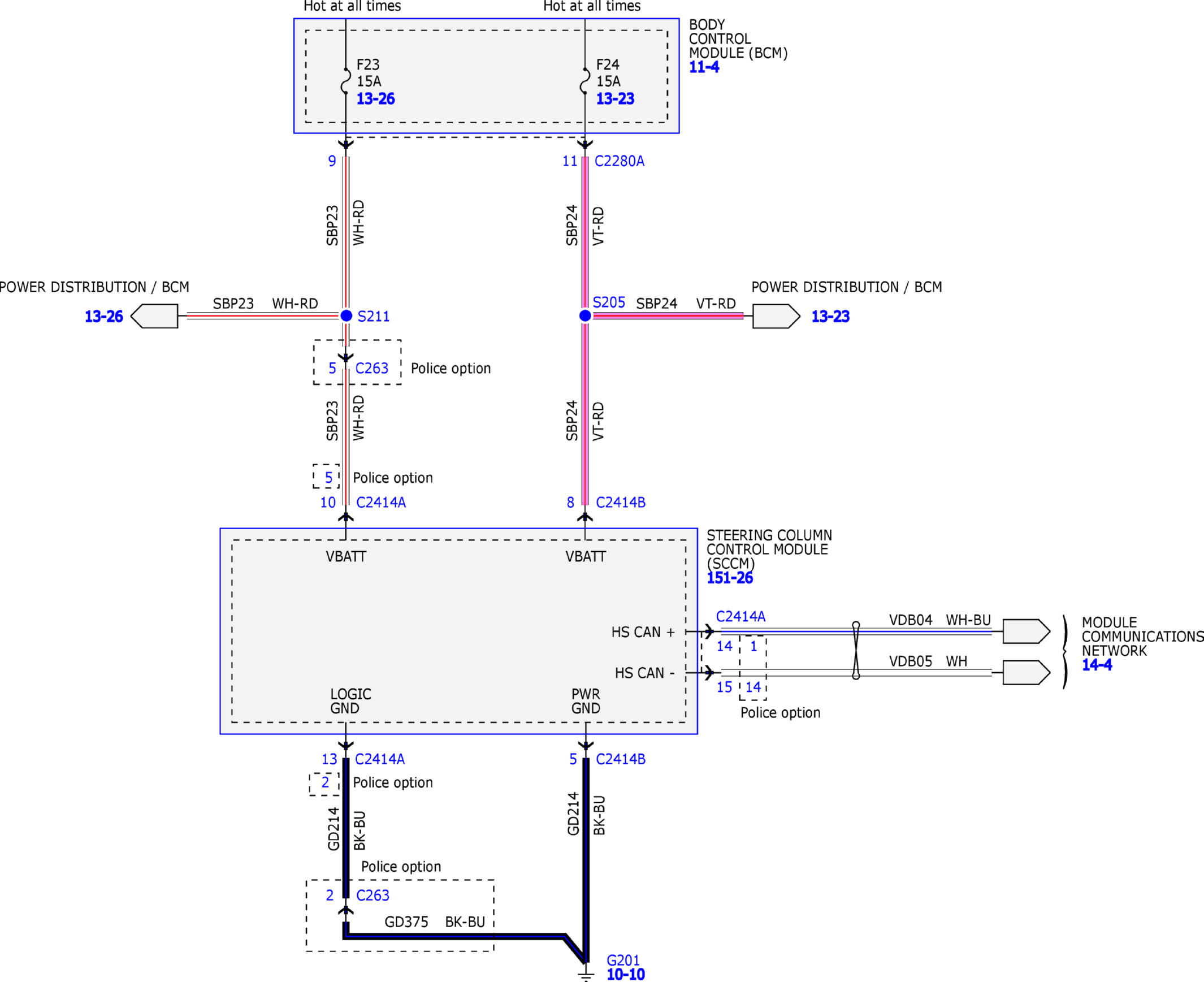

Fig 3: Instrument Cluster System Wiring Diagrams (3 Of 6)
GFDW12437Courtesy of FORD MOTOR COMPANY

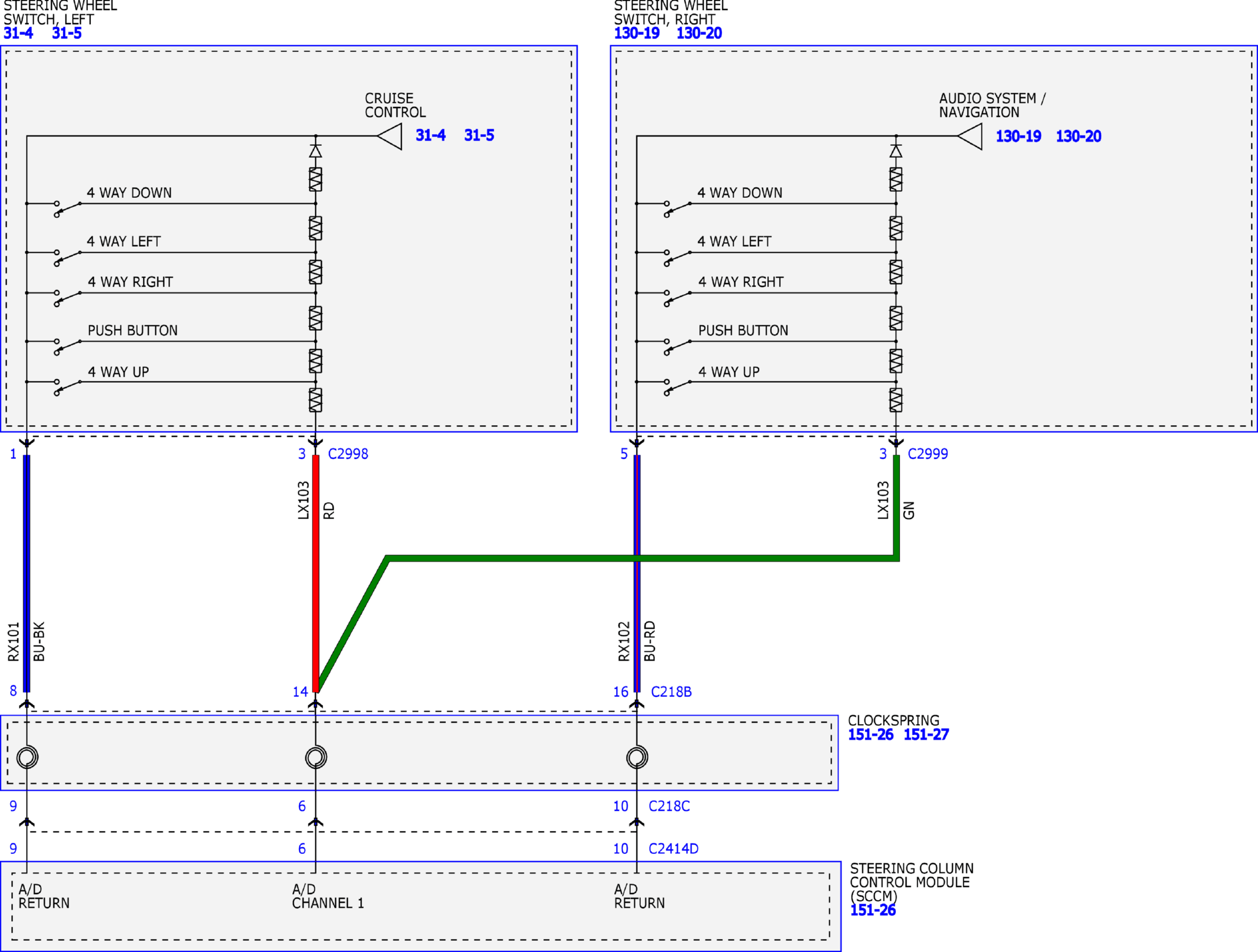

Fig 4: Instrument Cluster System Wiring Diagrams (4 Of 6)
GFDW12438Courtesy of FORD MOTOR COMPANY

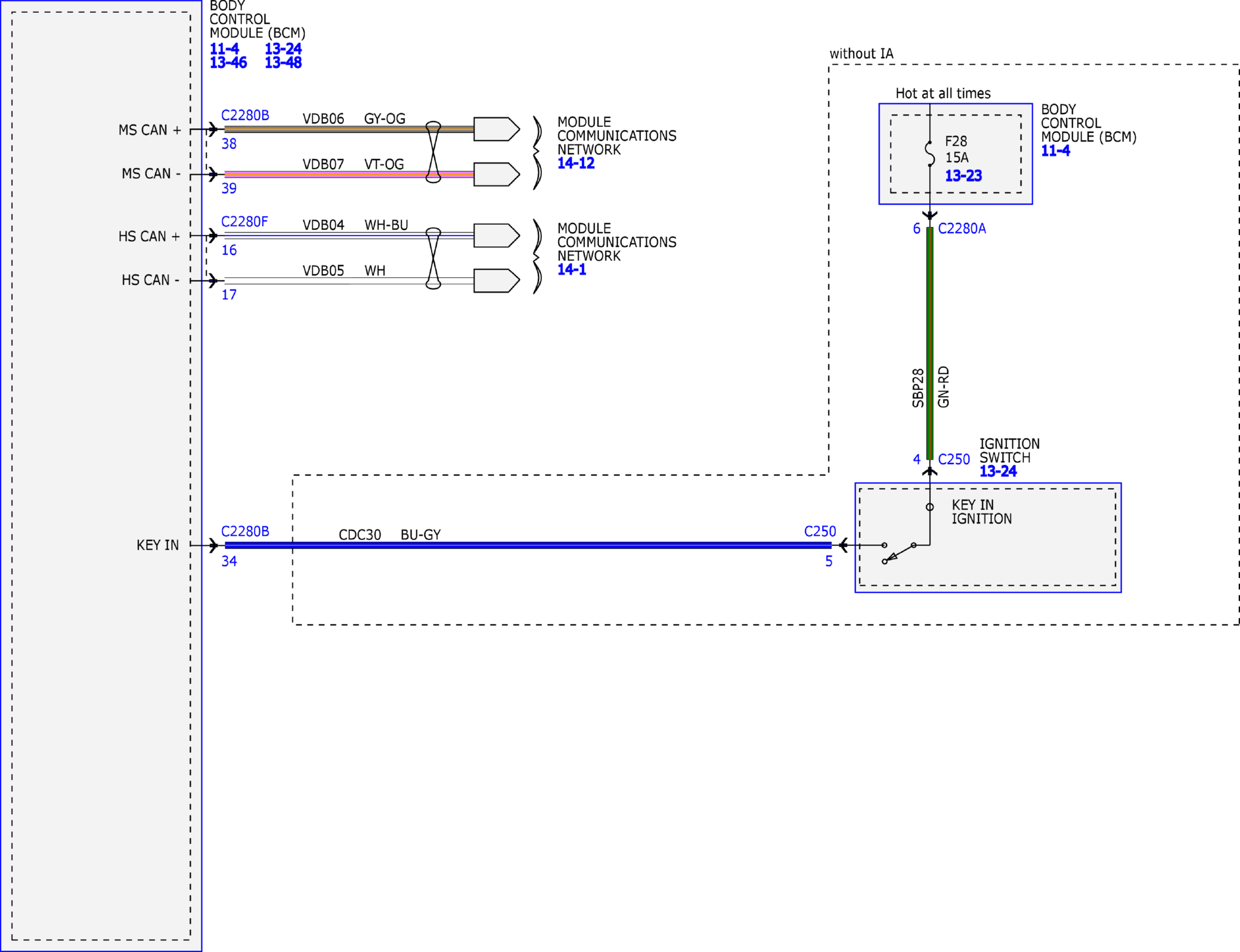

Fig 5: Instrument Cluster System Wiring Diagrams (5 Of 6)
GFDW12439Courtesy of FORD MOTOR COMPANY

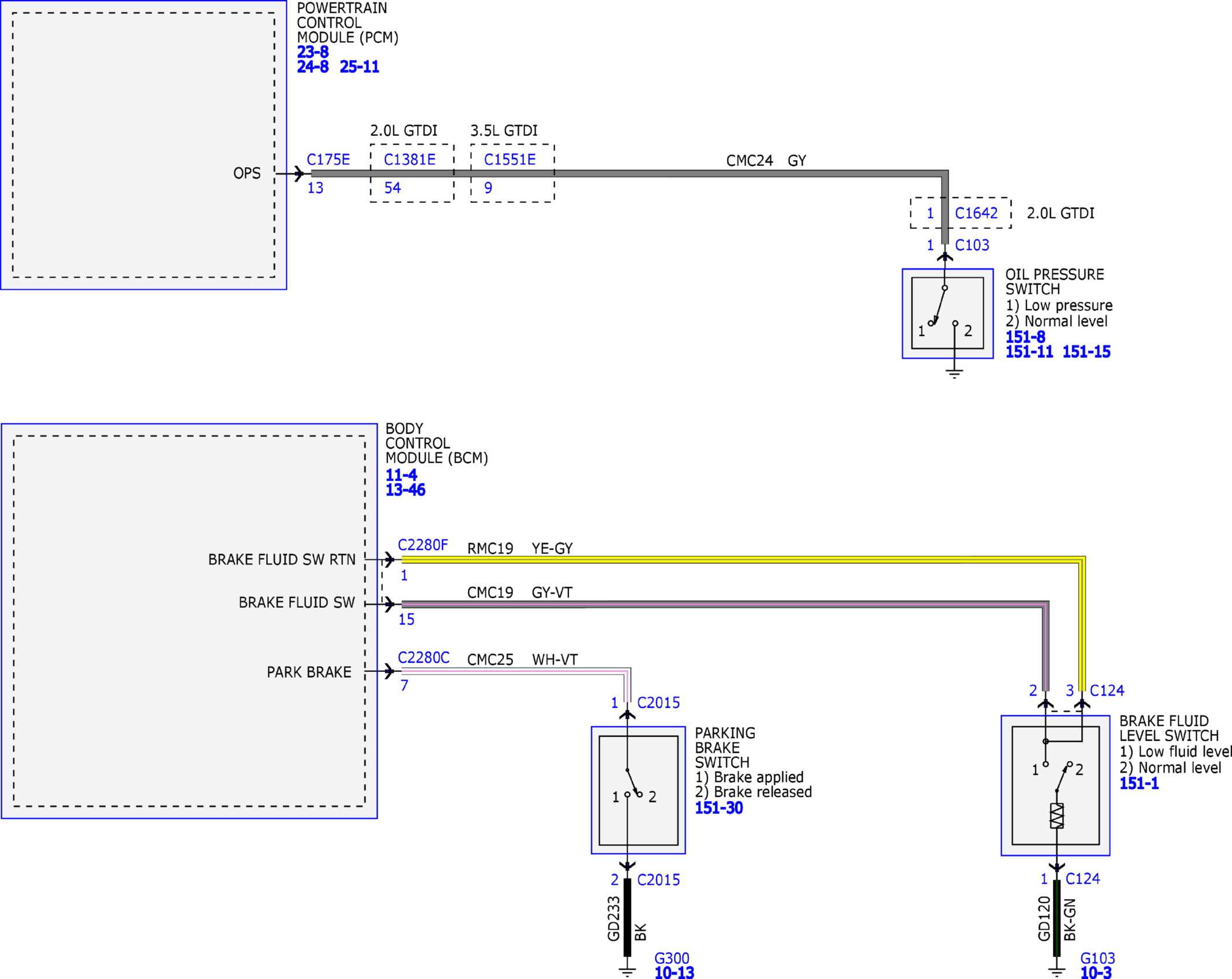

Fig 6: Instrument Cluster System Wiring Diagrams (6 Of 6)
GFDW12440Courtesy of FORD MOTOR COMPANY
