Power Distribution/BCM

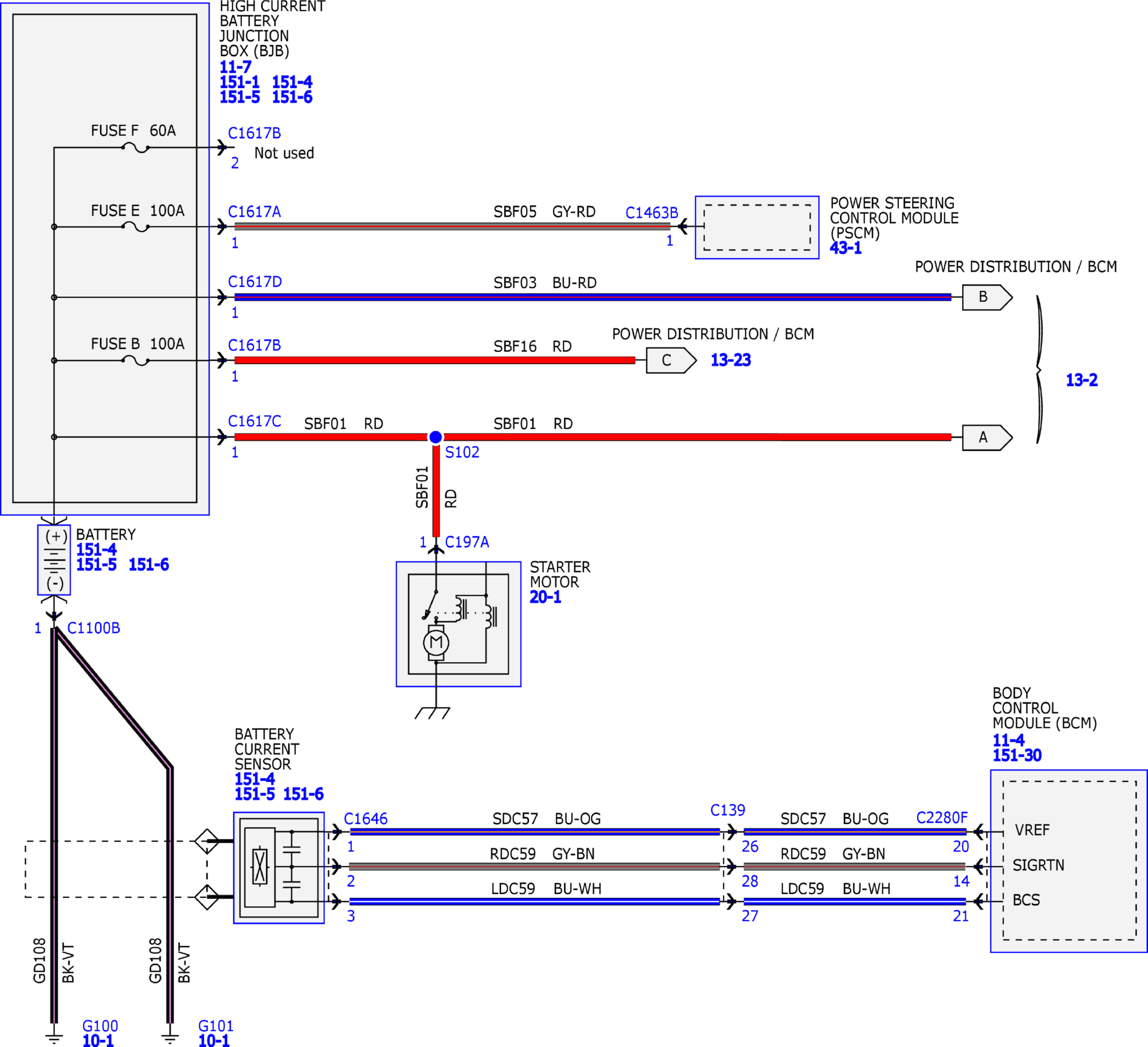

Fig 1: Power Distribution/BCM System Wiring Diagrams (1 Of 48)

GFDW12501

Courtesy of FORD MOTOR COMPANY

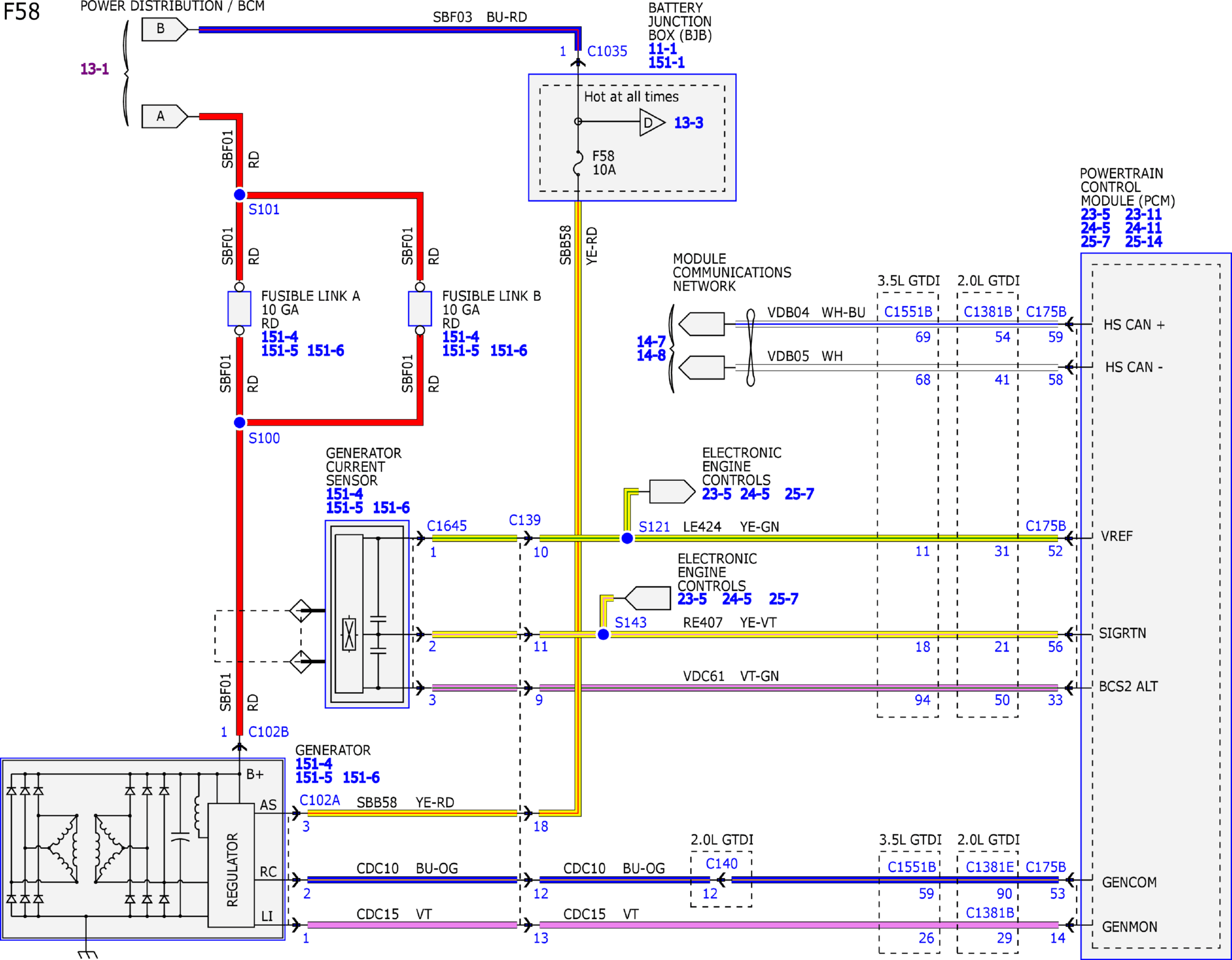

Fig 2: Power Distribution/BCM System Wiring Diagrams (2 Of 48)

GFDW12502

Courtesy of FORD MOTOR COMPANY

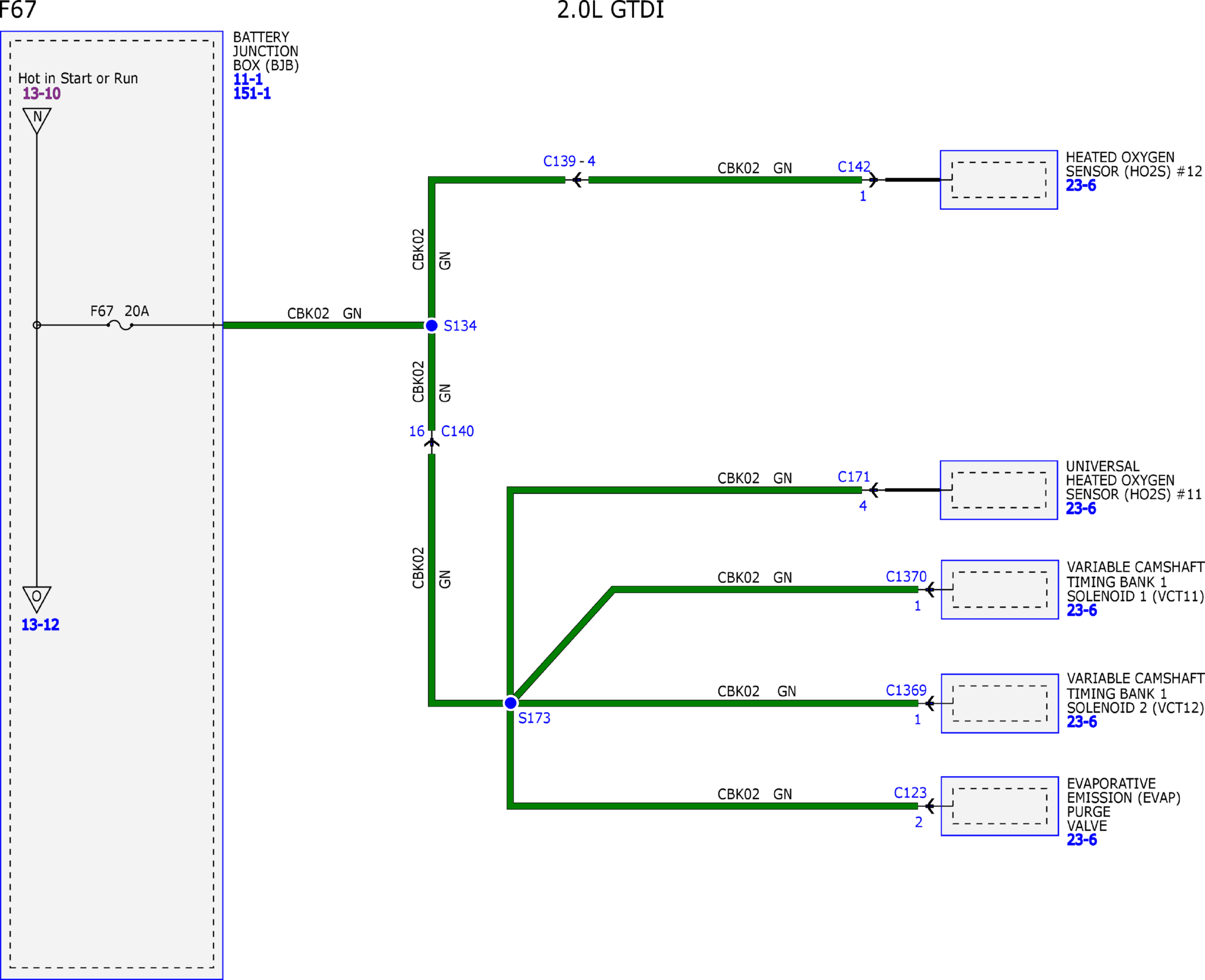

Fig 3: Power Distribution/BCM System Wiring Diagrams (3 Of 48)

GFDW12503

Courtesy of FORD MOTOR COMPANY

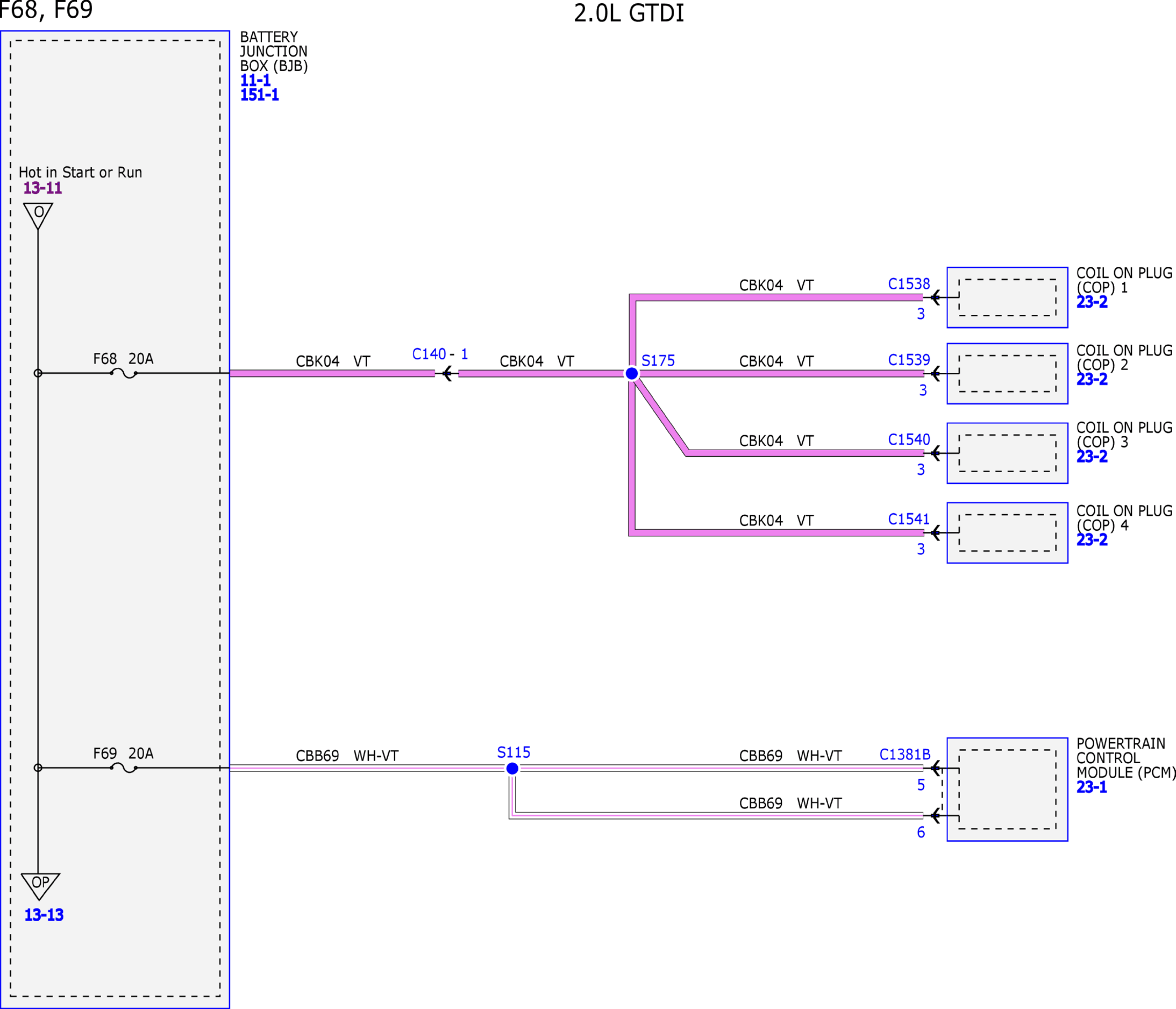

Fig 4: Power Distribution/BCM System Wiring Diagrams (4 Of 48)

GFDW12504

Courtesy of FORD MOTOR COMPANY

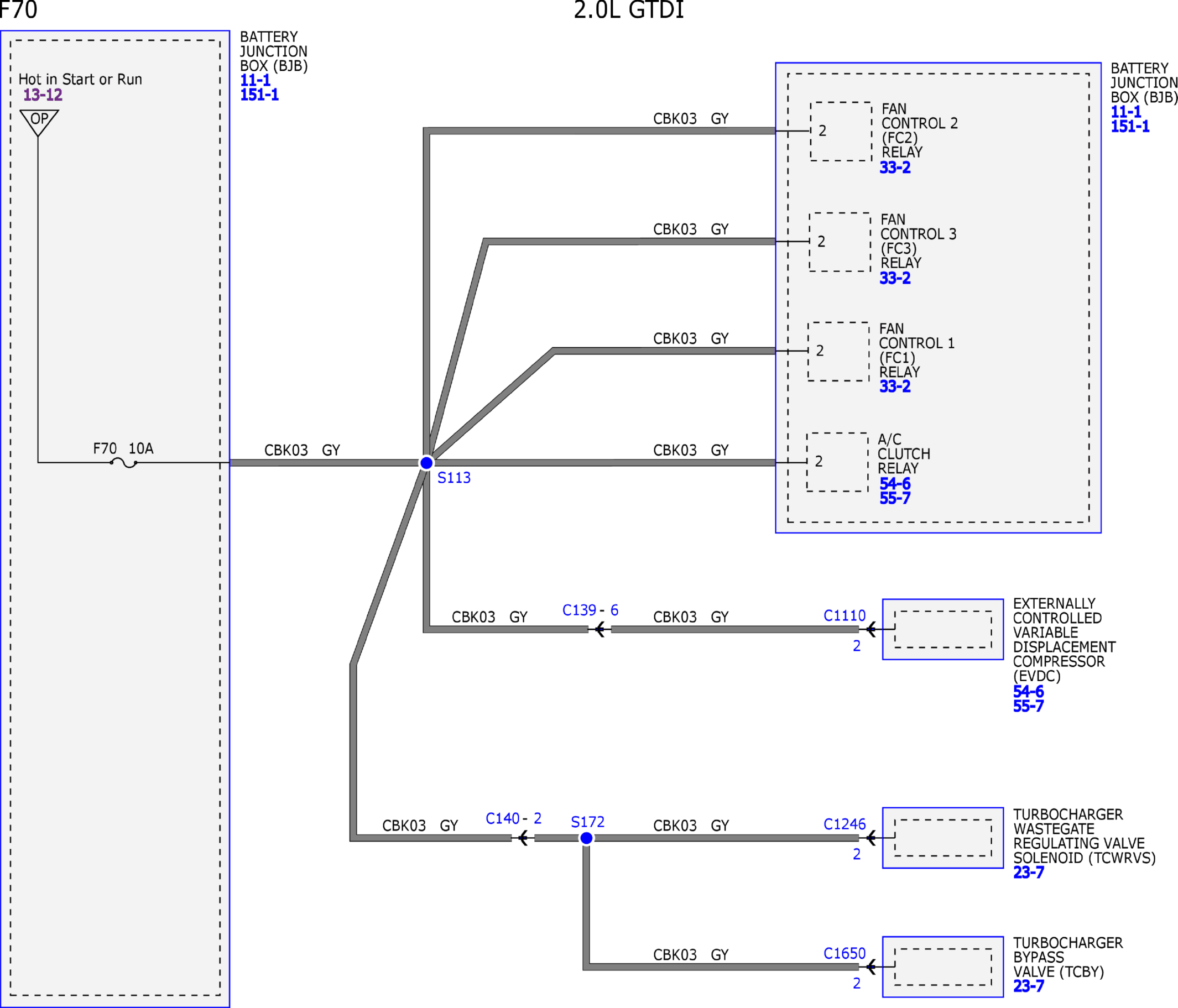

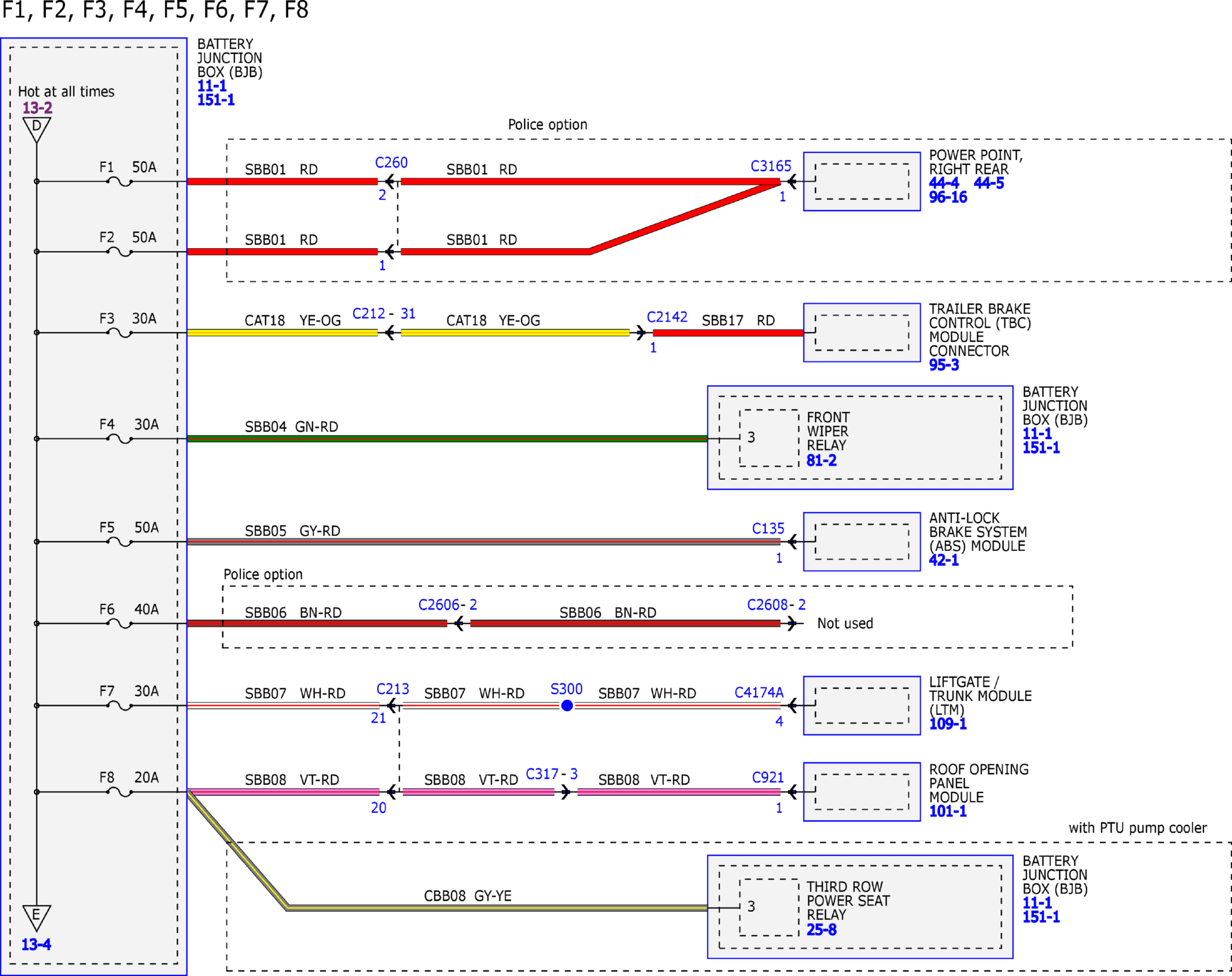

Fig 5: Power Distribution/BCM System Wiring Diagrams (5 Of 48)

GFDW12505

Courtesy of FORD MOTOR COMPANY

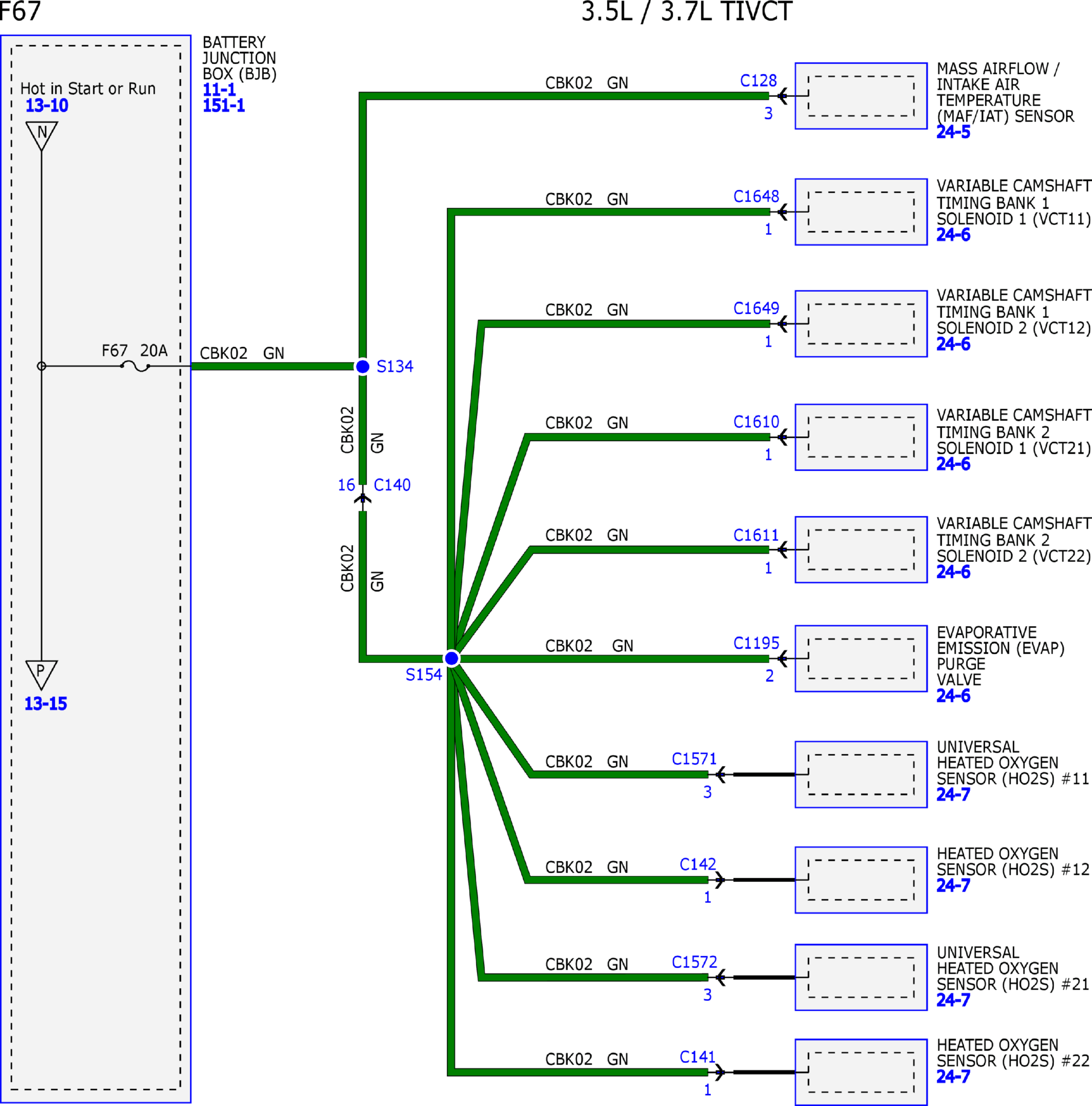

Fig 6: Power Distribution/BCM System Wiring Diagrams (6 Of 48)

GFDW12506

Courtesy of FORD MOTOR COMPANY

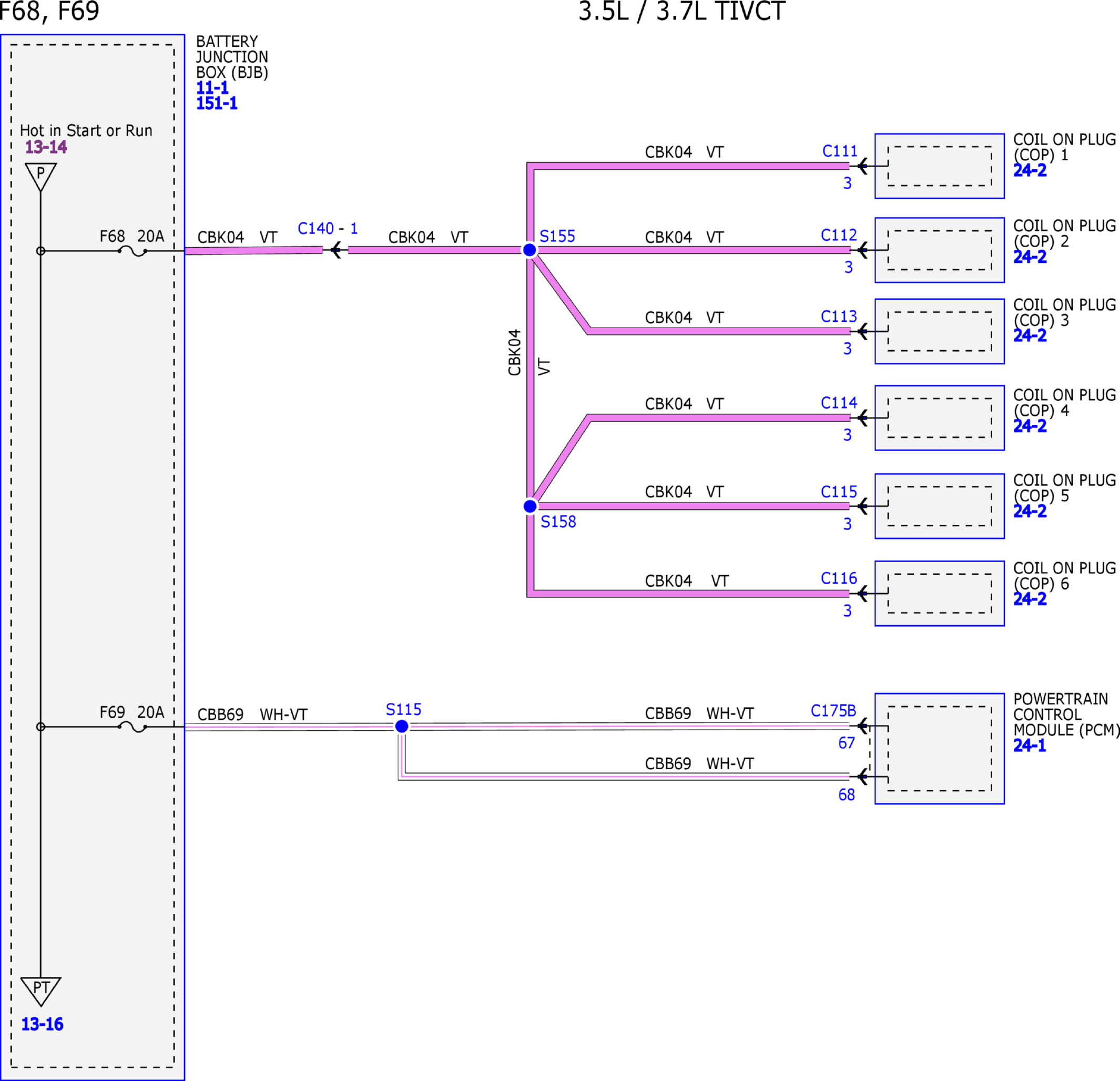

Fig 7: Power Distribution/BCM System Wiring Diagrams (7 Of 48)

GFDW12507

Courtesy of FORD MOTOR COMPANY

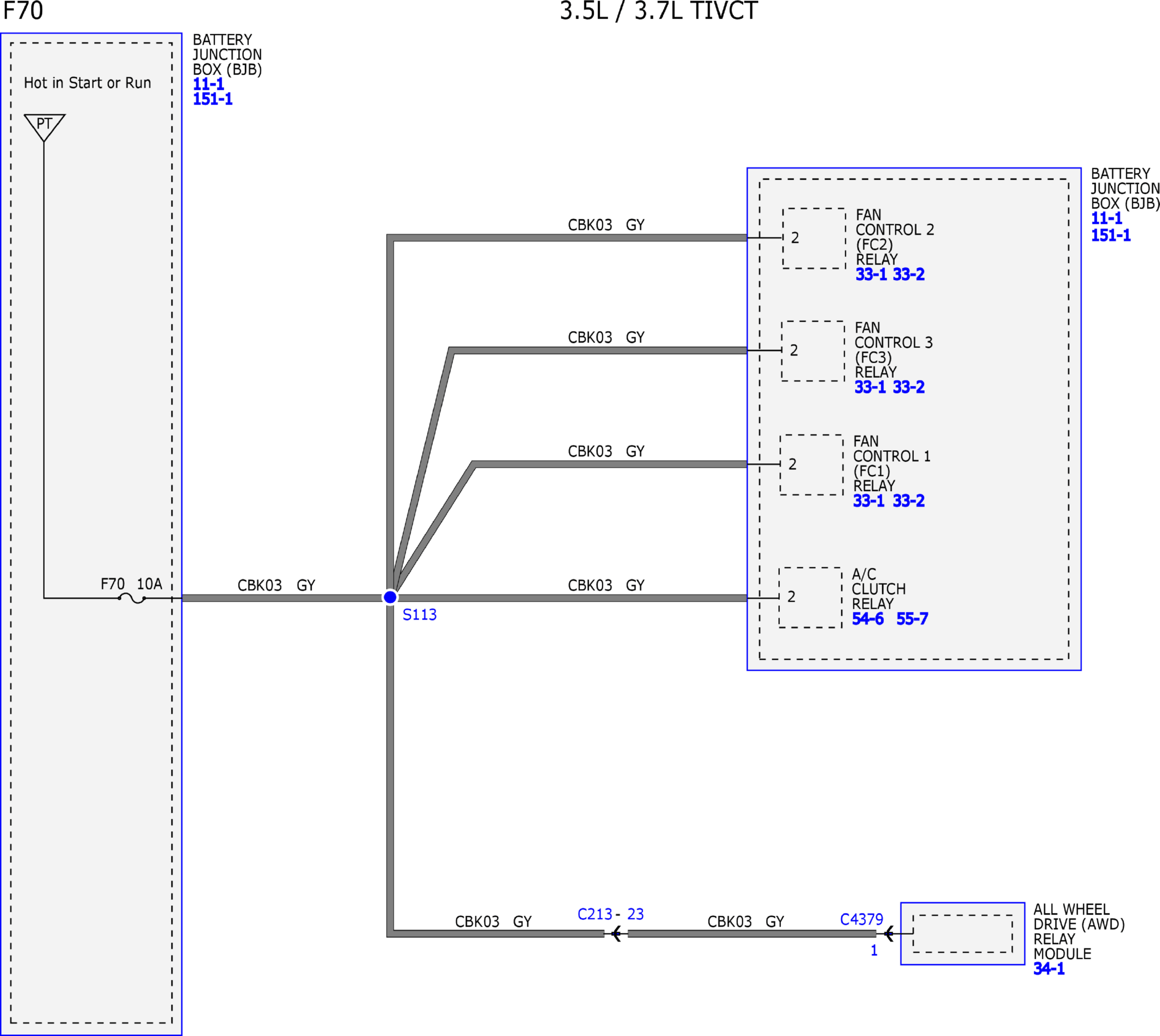

Fig 8: Power Distribution/BCM System Wiring Diagrams (8 Of 48)

GFDW12508

Courtesy of FORD MOTOR COMPANY

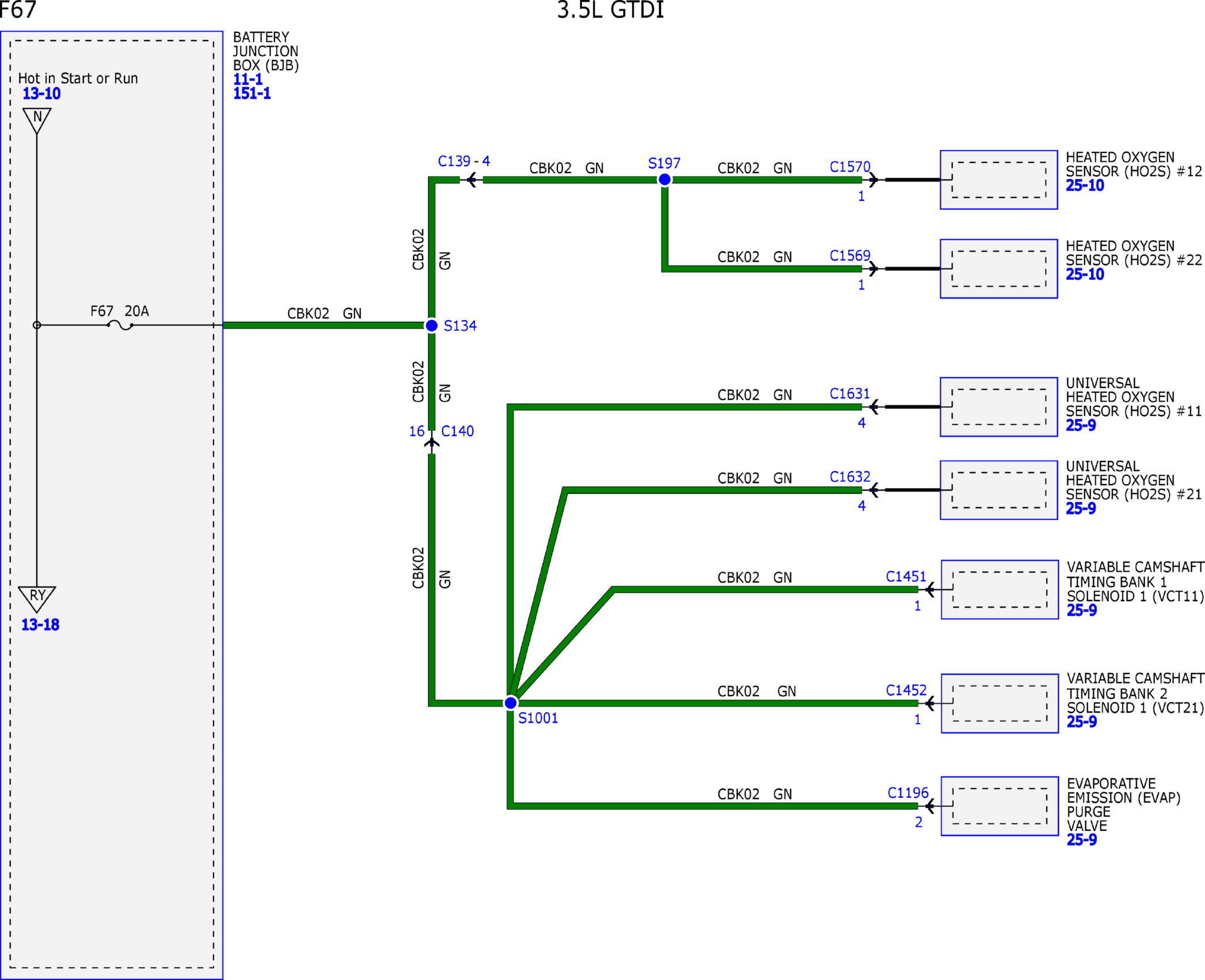

Fig 9: Power Distribution/BCM System Wiring Diagrams (9 Of 48)

GFDW12509

Courtesy of FORD MOTOR COMPANY

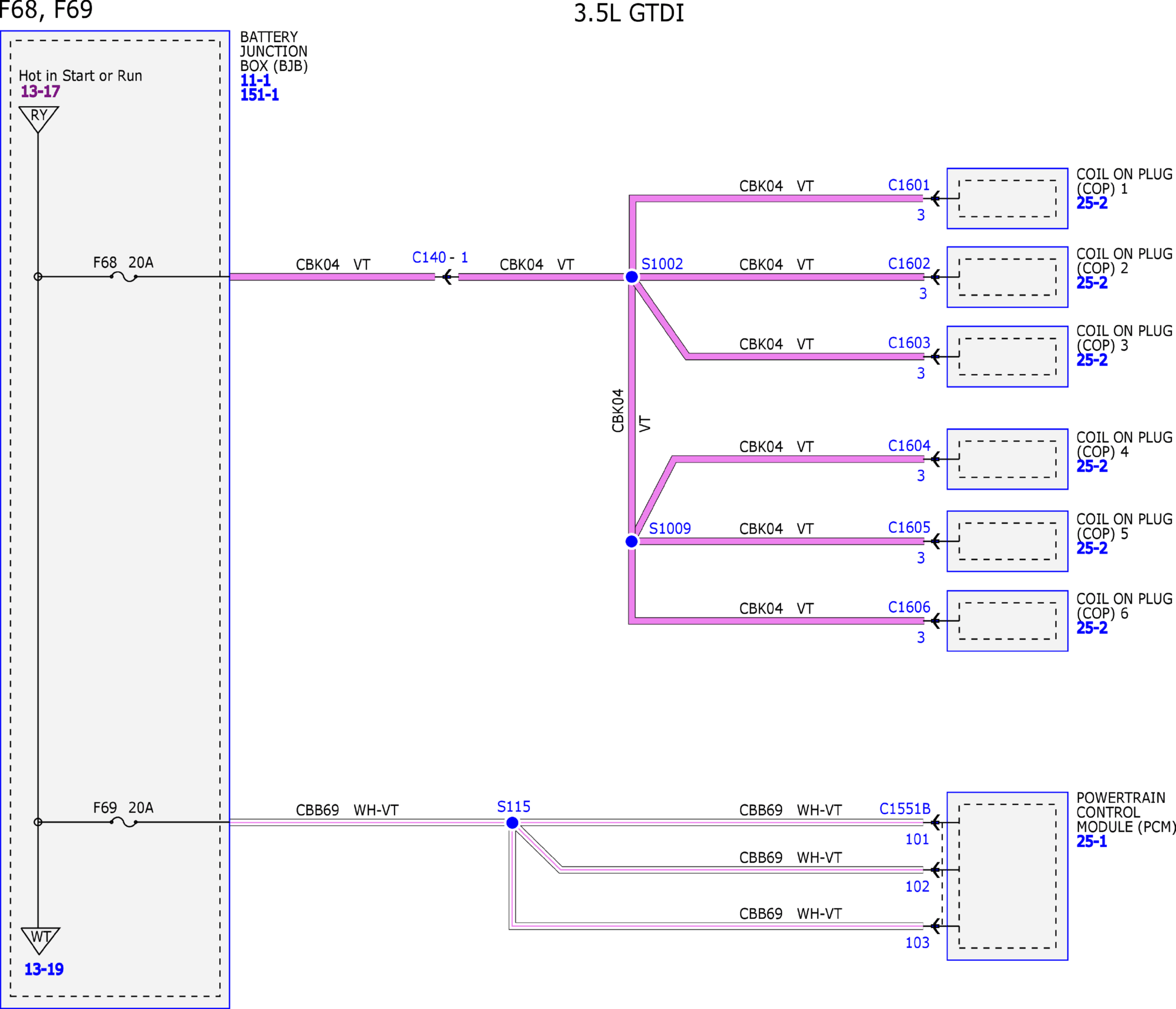

Fig 10: Power Distribution/BCM System Wiring Diagrams (10 Of 48)

GFDW12510

Courtesy of FORD MOTOR COMPANY

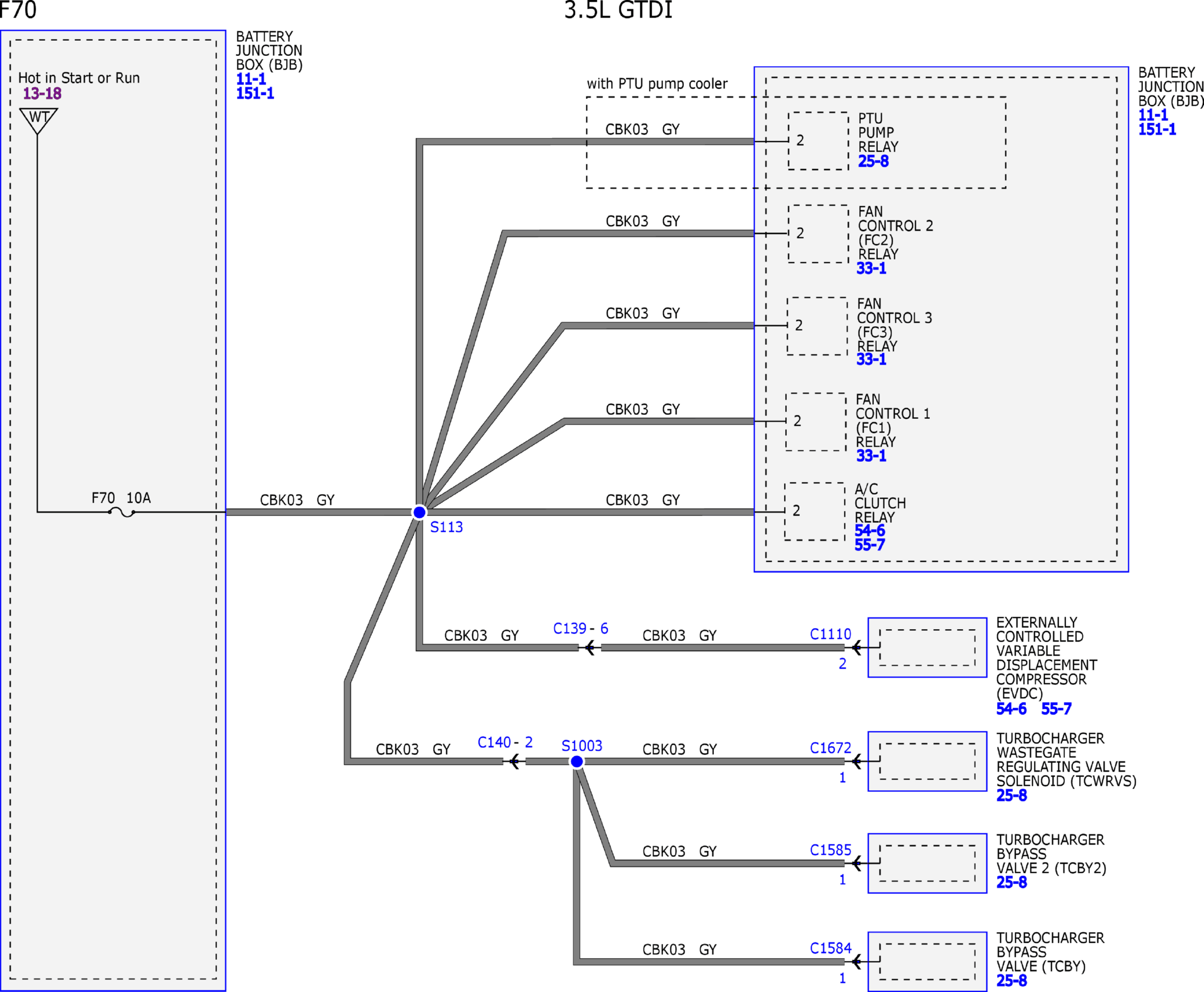

Fig 11: Power Distribution/BCM System Wiring Diagrams (11 Of 48)

GFDW12511

Courtesy of FORD MOTOR COMPANY

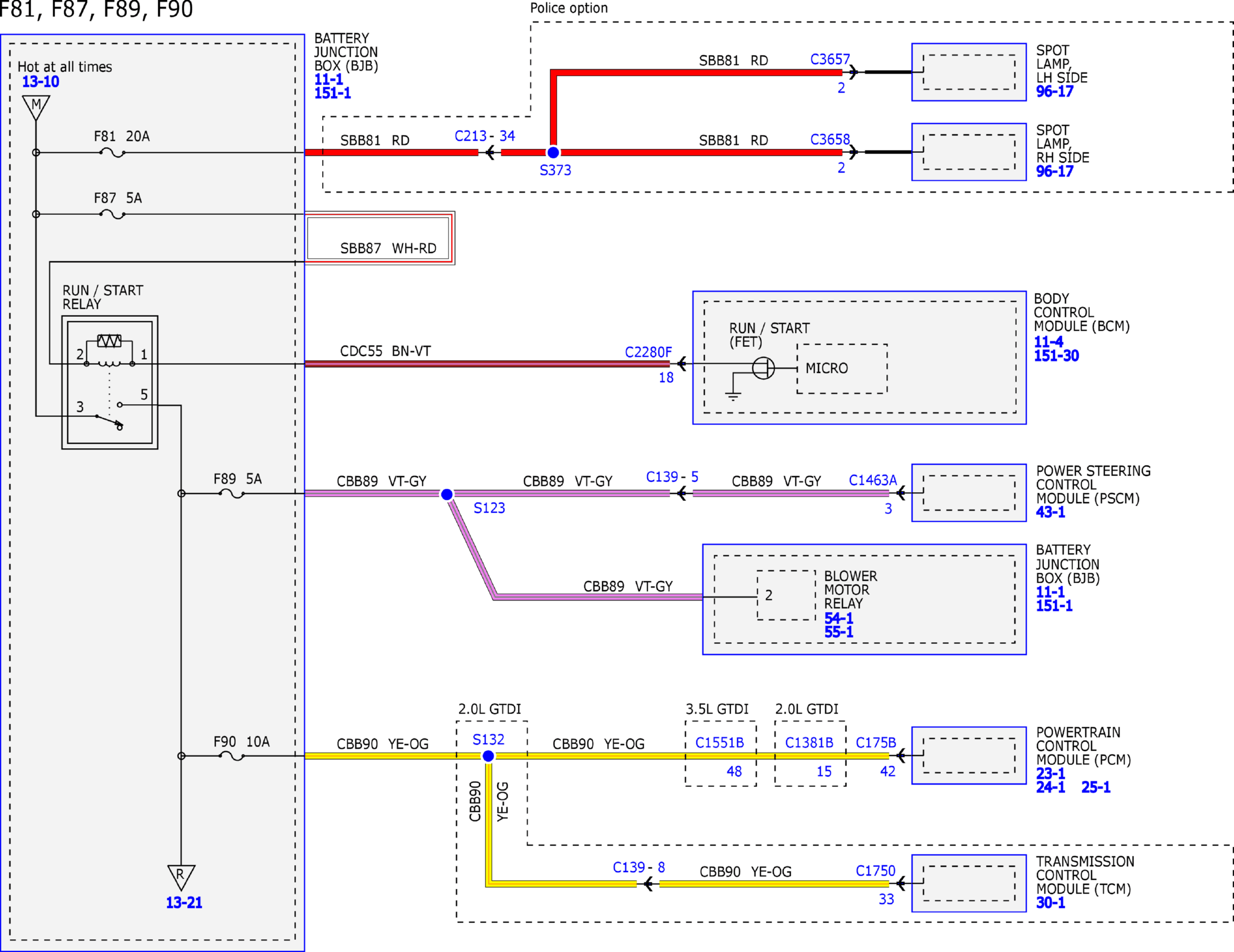

Fig 12: Power Distribution/BCM System Wiring Diagrams (12 Of 48)

GFDW12512

Courtesy of FORD MOTOR COMPANY

Fig 13: Power Distribution/BCM System Wiring Diagrams (13 Of 48)

GFDW12513

Courtesy of FORD MOTOR COMPANY

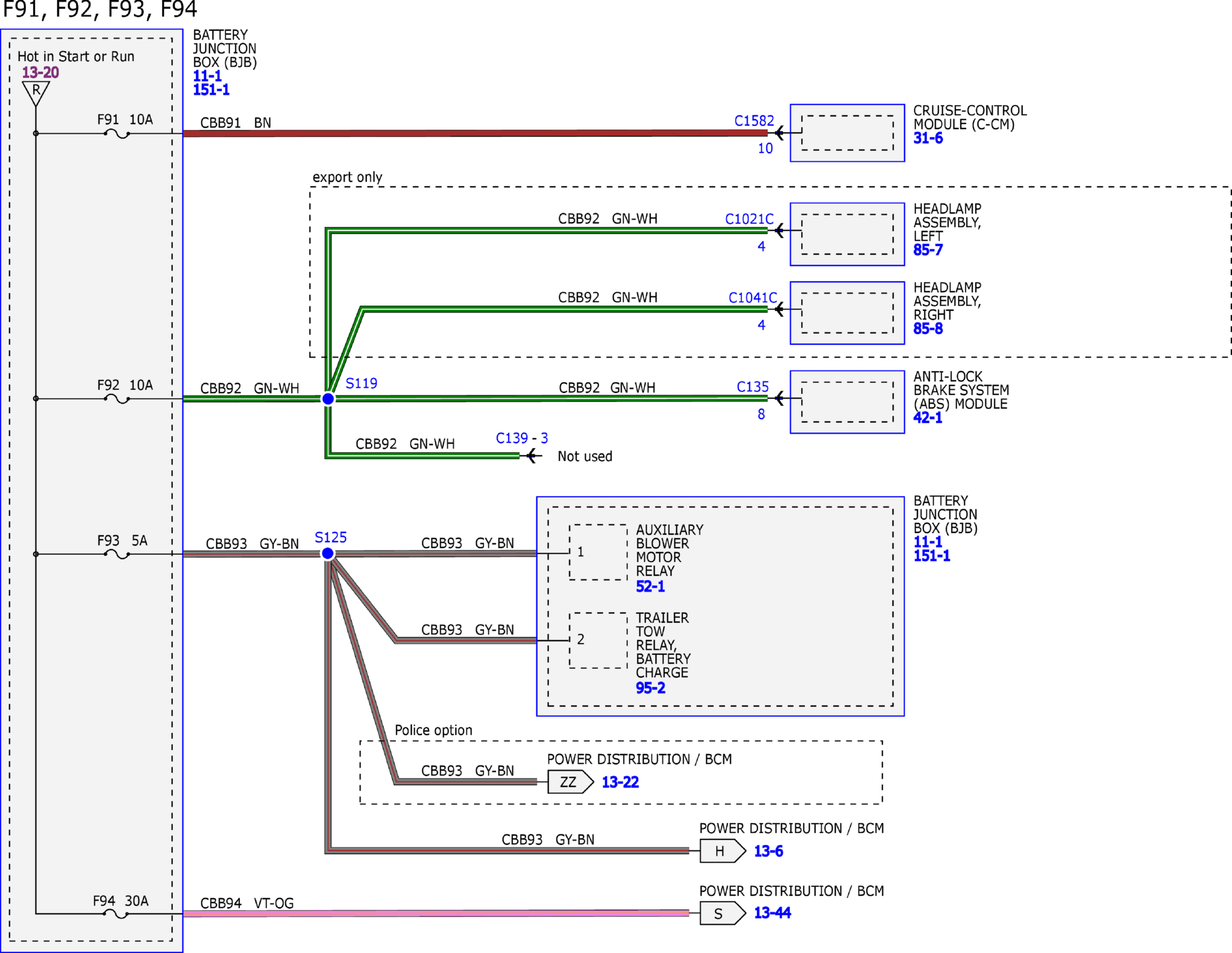

Fig 14: Power Distribution/BCM System Wiring Diagrams (14 Of 48)

GFDW12514

Courtesy of FORD MOTOR COMPANY

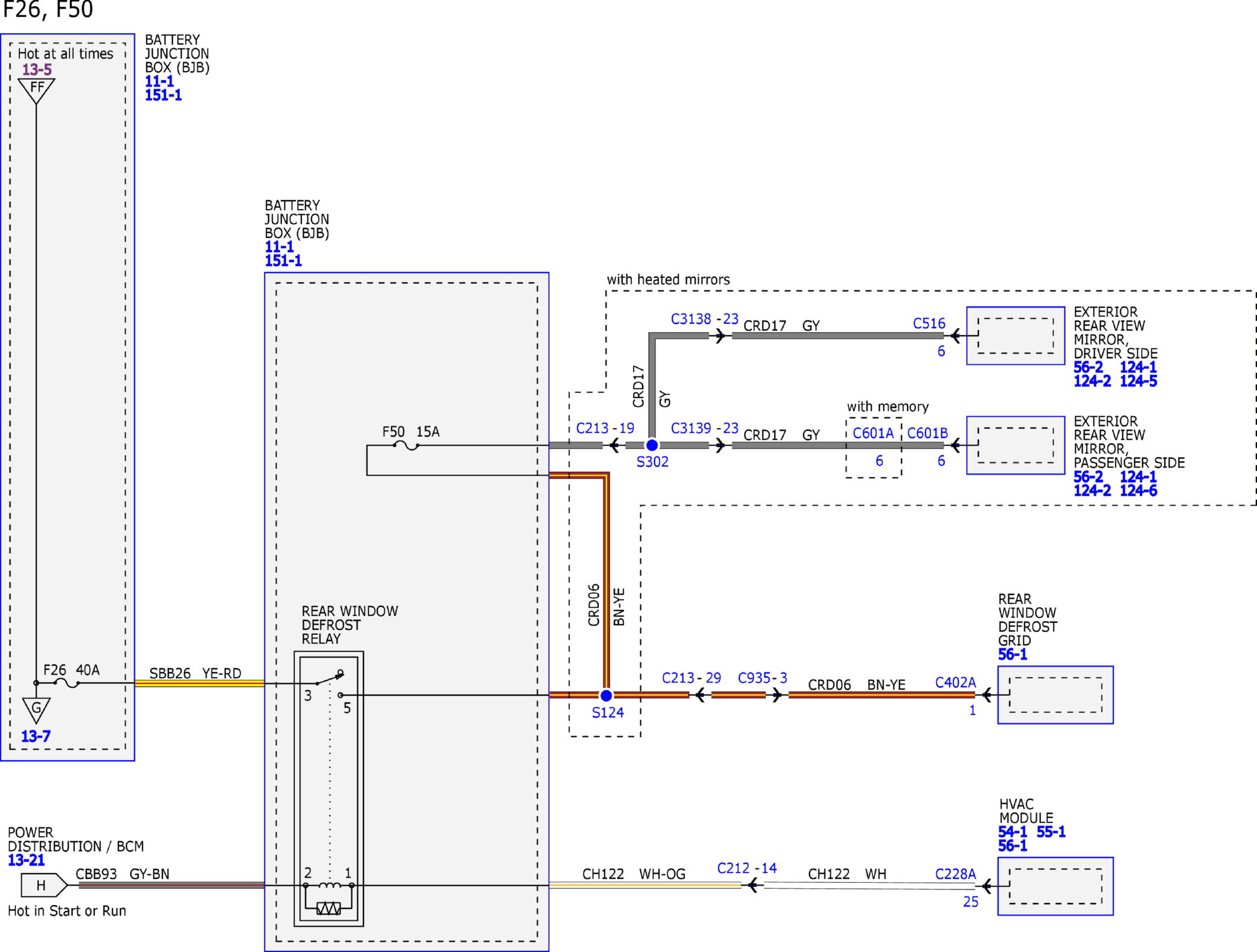

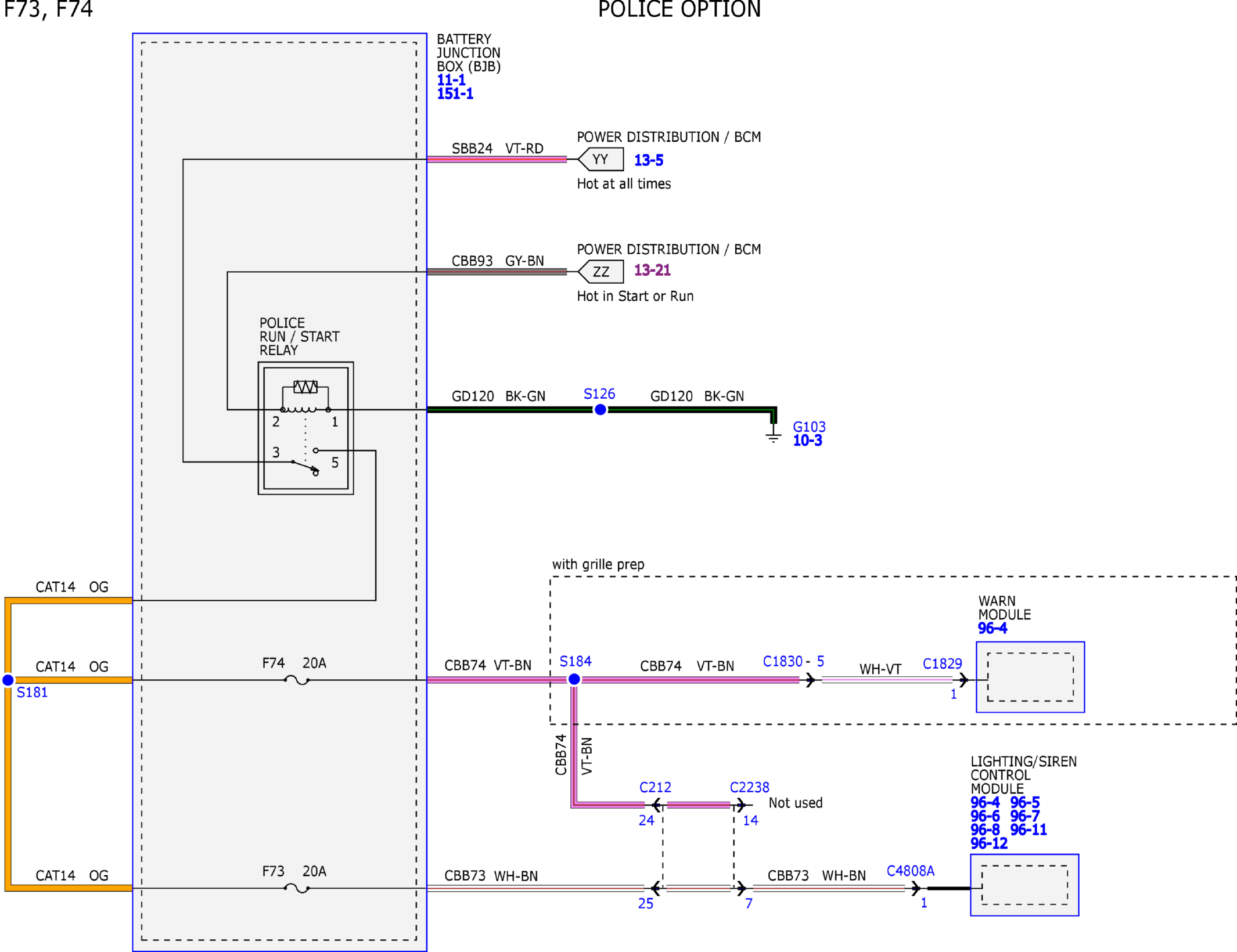

Fig 15: Power Distribution/BCM System Wiring Diagrams (15 Of 48)

GFDW12515

Courtesy of FORD MOTOR COMPANY

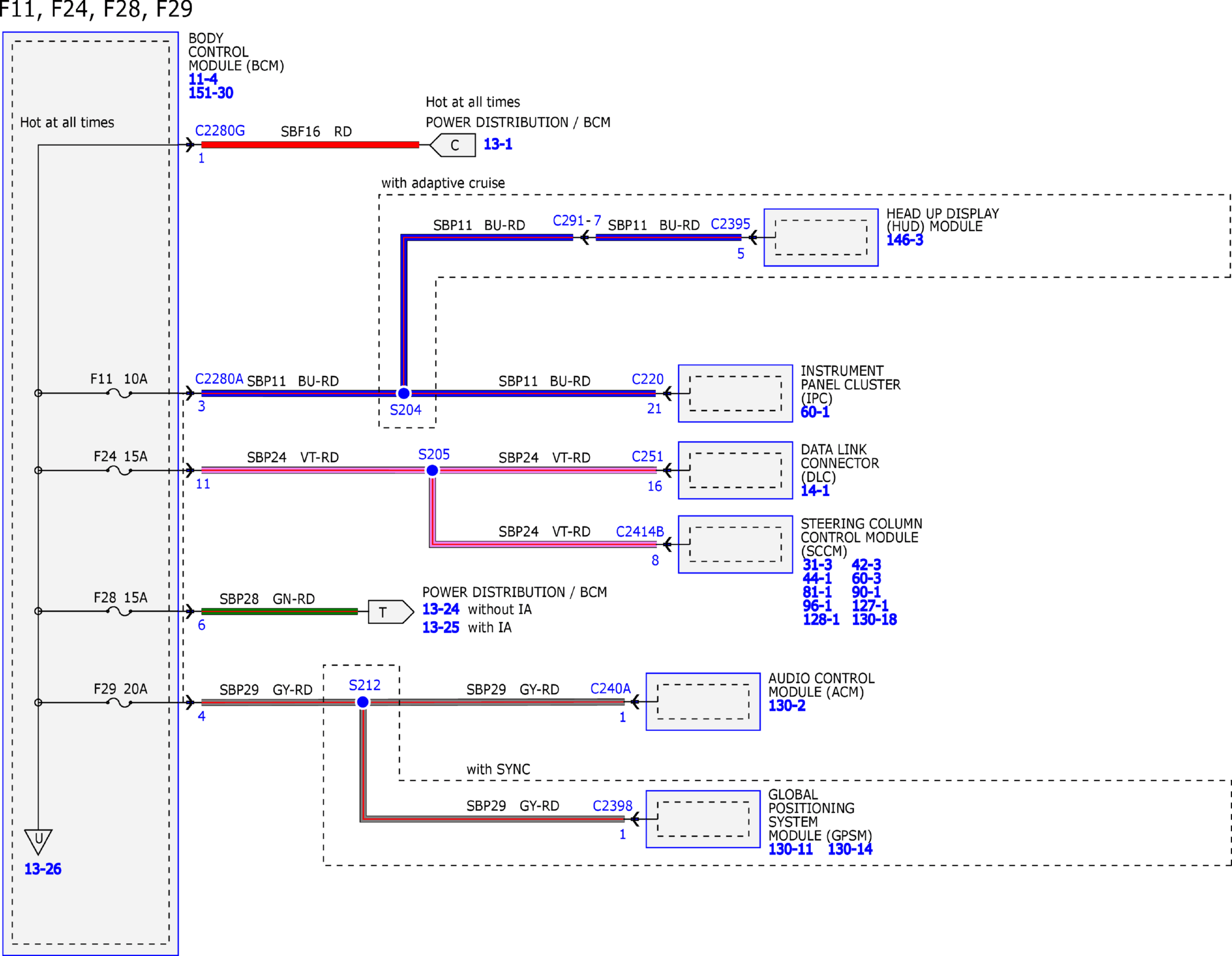

Fig 16: Power Distribution/BCM System Wiring Diagrams (16 Of 48)

GFDW12516

Courtesy of FORD MOTOR COMPANY

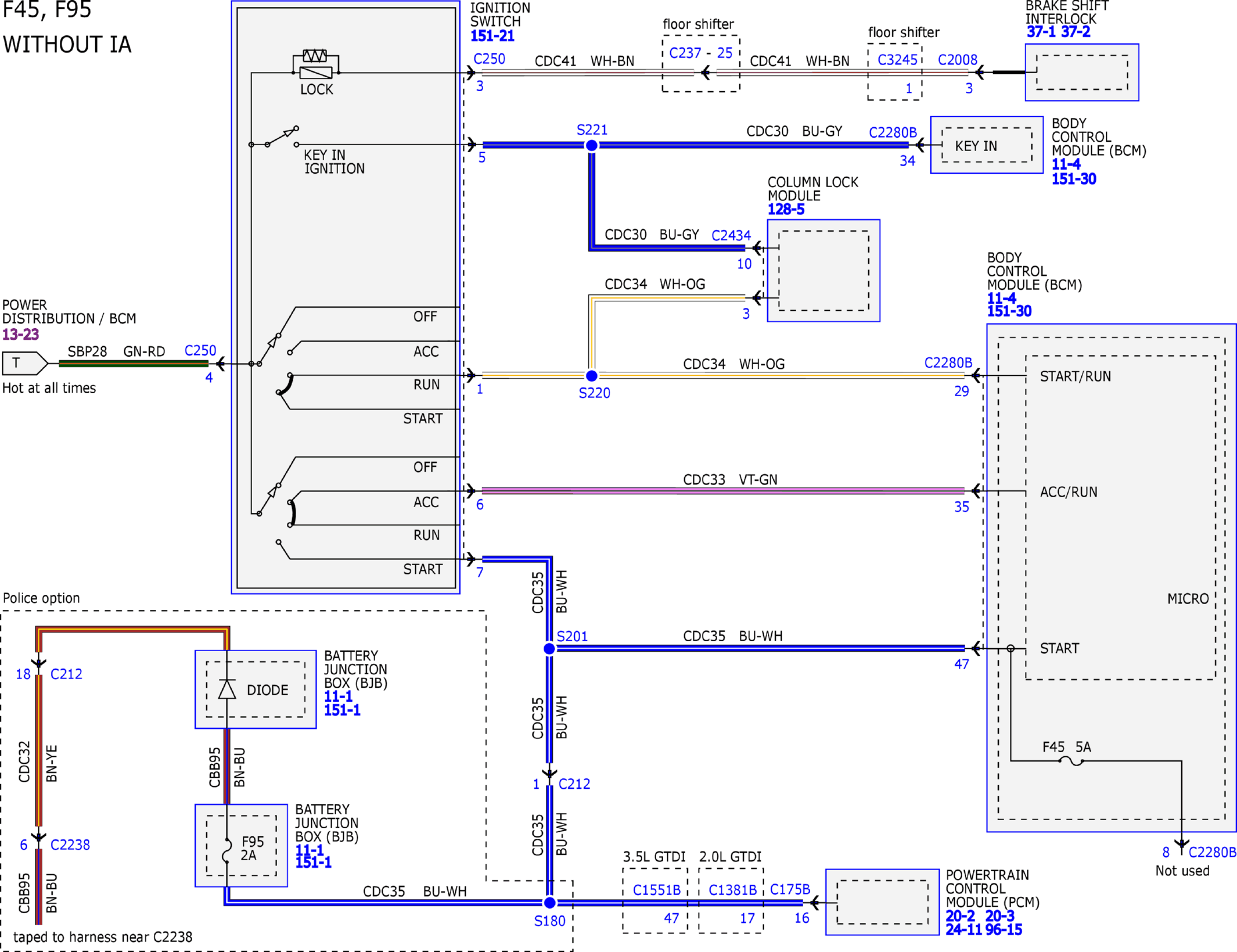

Fig 17: Power Distribution/BCM System Wiring Diagrams (17 Of 48)

GFDW12517

Courtesy of FORD MOTOR COMPANY

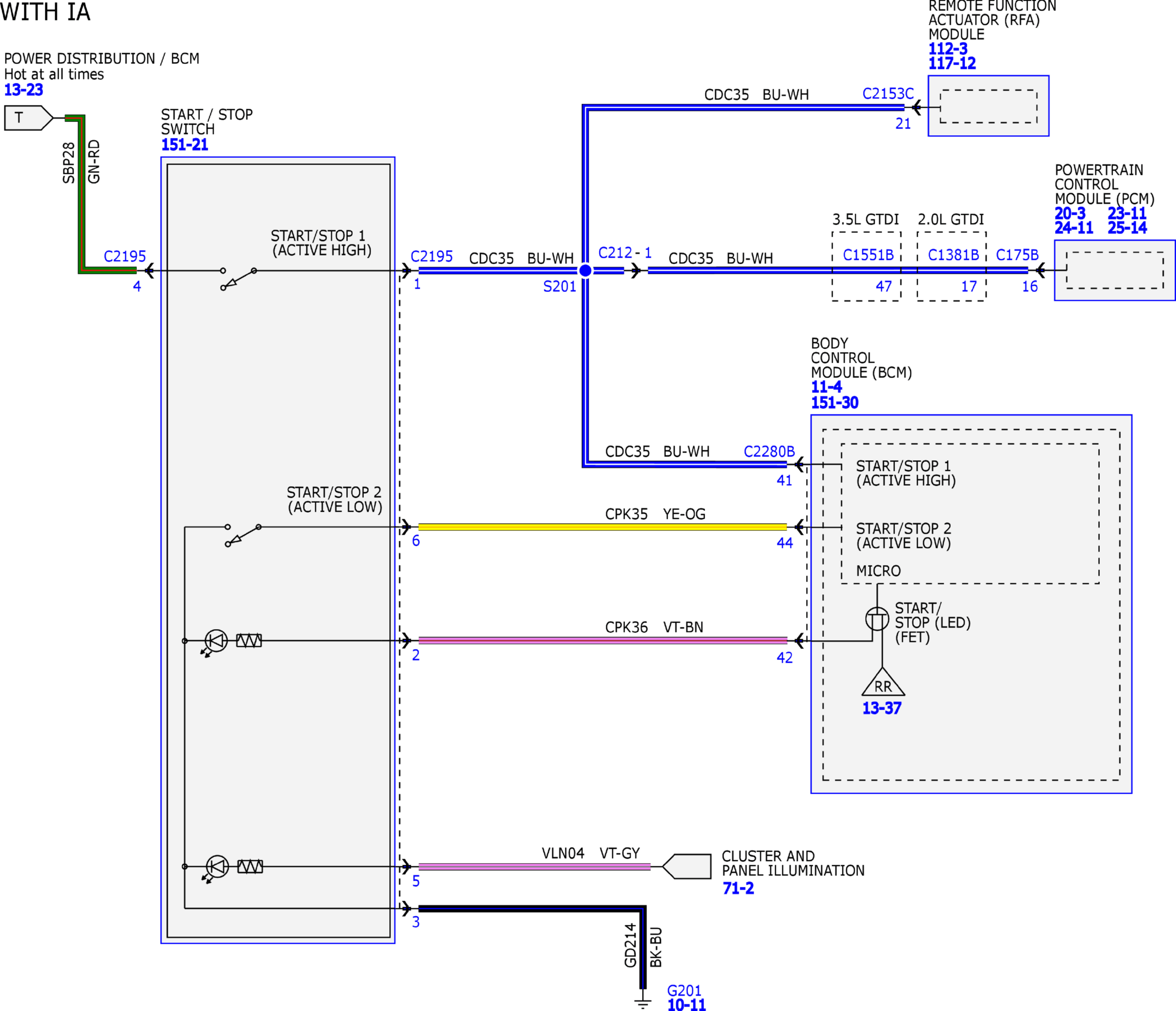

Fig 18: Power Distribution/BCM System Wiring Diagrams (18 Of 48)

GFDW12518

Courtesy of FORD MOTOR COMPANY

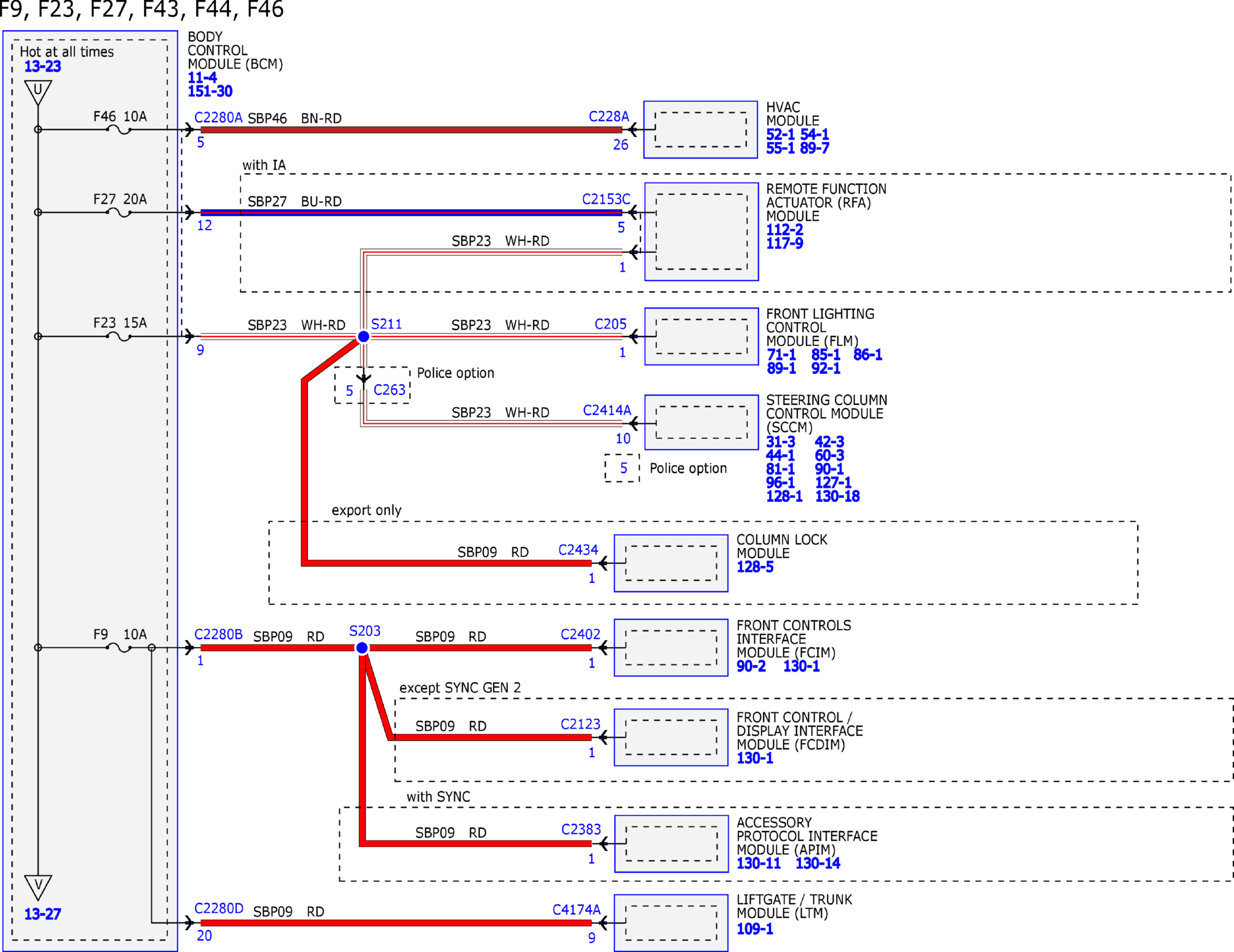

Fig 19: Power Distribution/BCM System Wiring Diagrams (19 Of 48)

GFDW12519

Courtesy of FORD MOTOR COMPANY

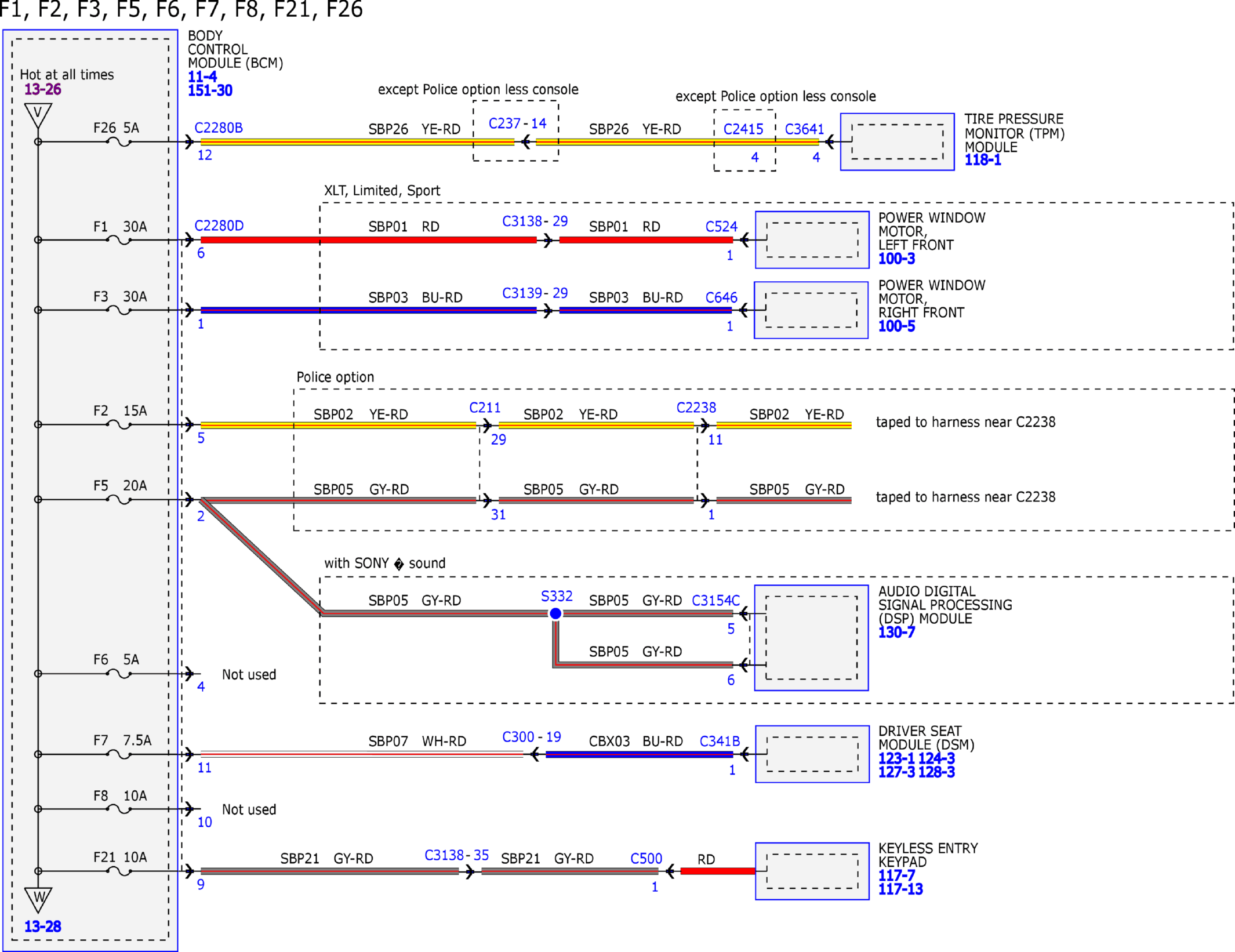

Fig 20: Power Distribution/BCM System Wiring Diagrams (20 Of 48)

GFDW12520

Courtesy of FORD MOTOR COMPANY

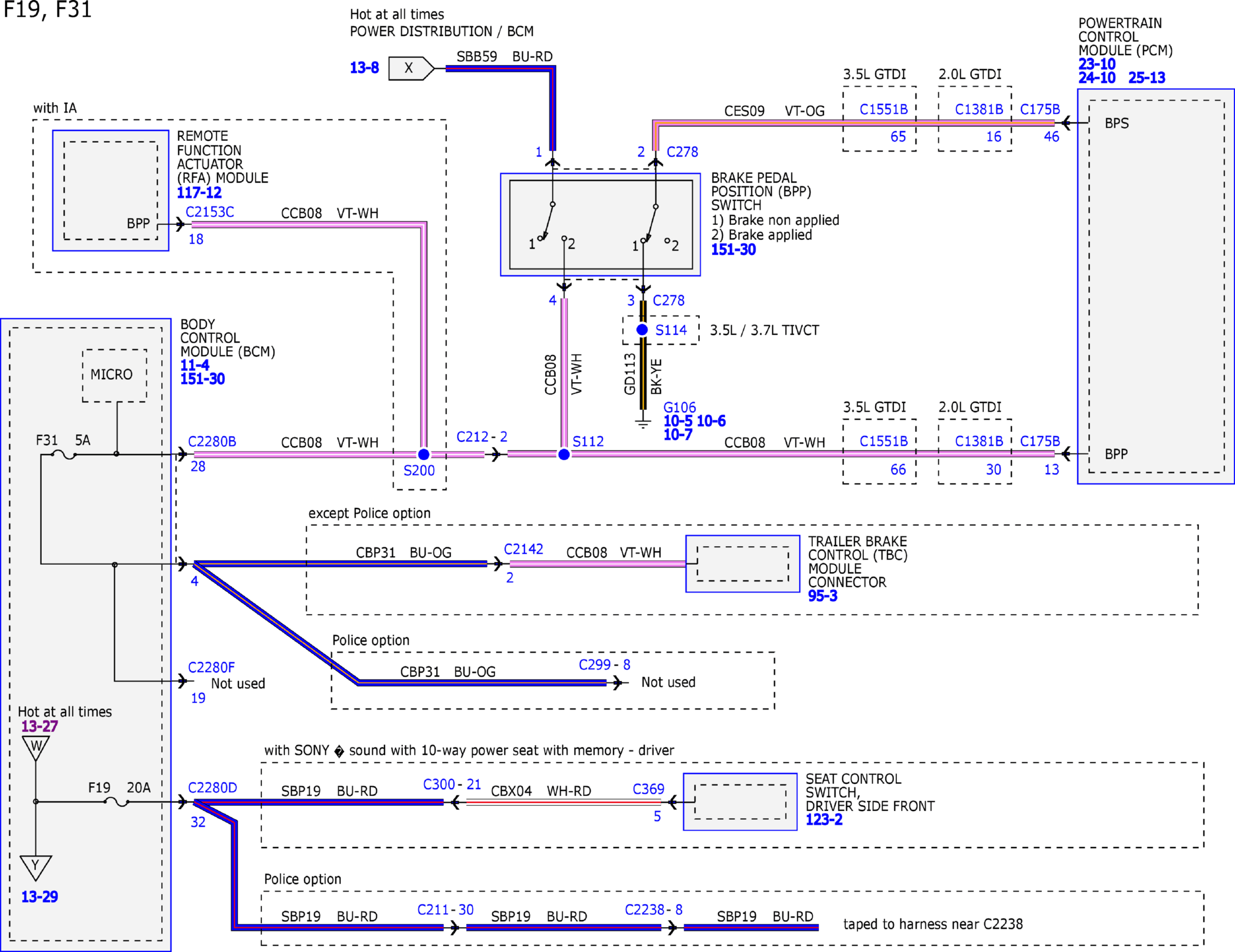

Fig 21: Power Distribution/BCM System Wiring Diagrams (21 Of 48)

GFDW12521

Courtesy of FORD MOTOR COMPANY

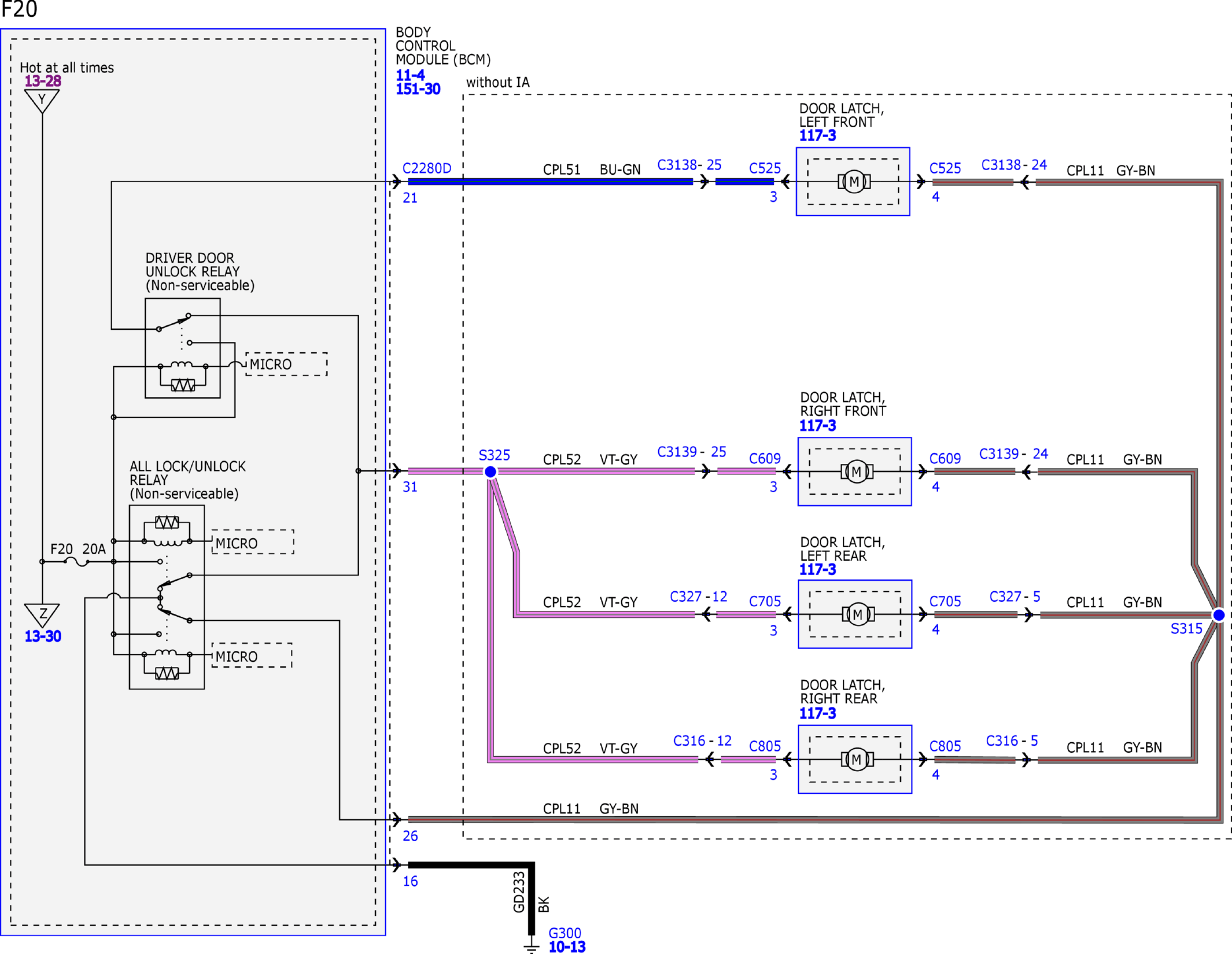

Fig 22: Power Distribution/BCM System Wiring Diagrams (22 Of 48)

GFDW12522

Courtesy of FORD MOTOR COMPANY

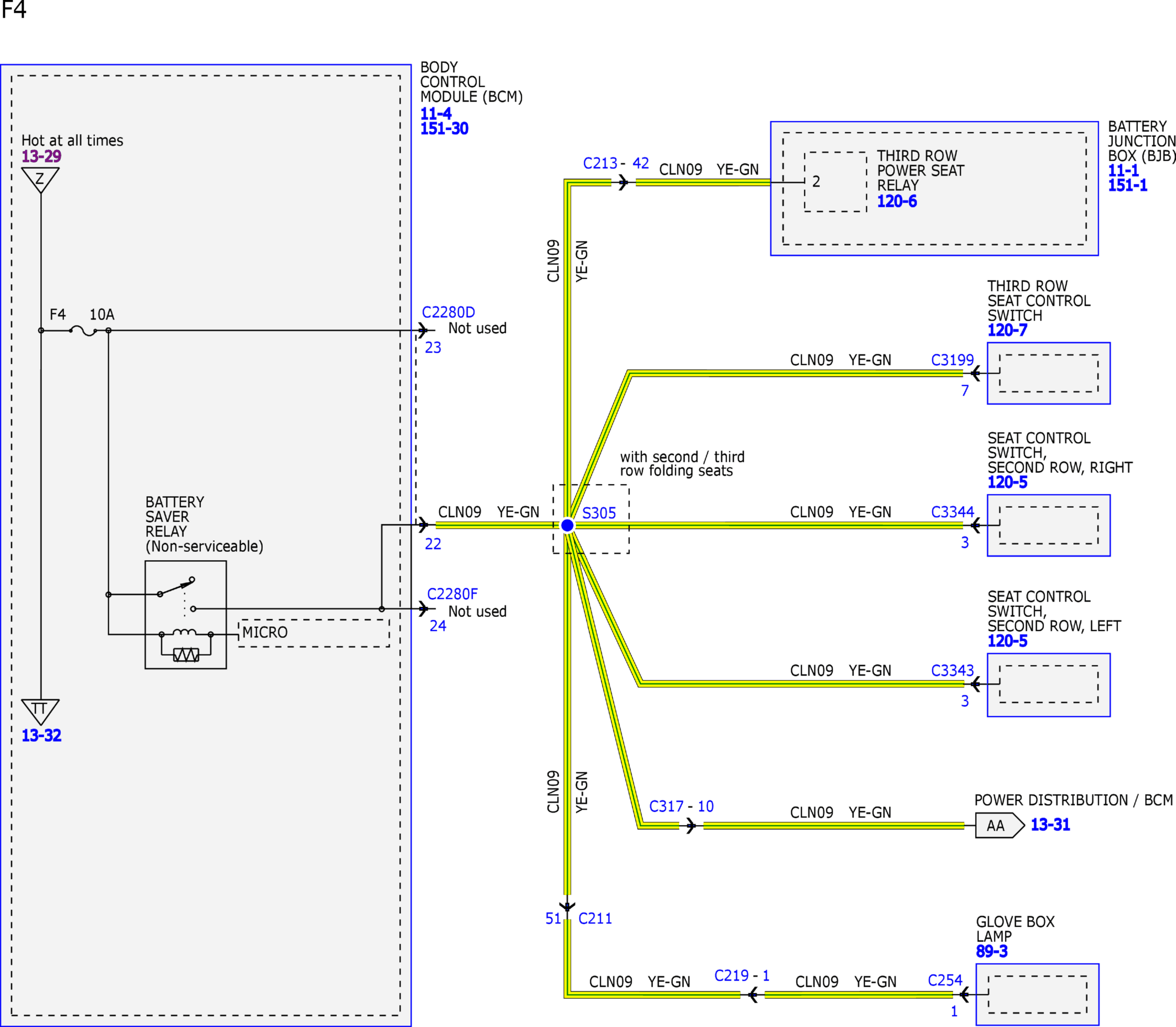

Fig 23: Power Distribution/BCM System Wiring Diagrams (23 Of 48)

GFDW12523

Courtesy of FORD MOTOR COMPANY

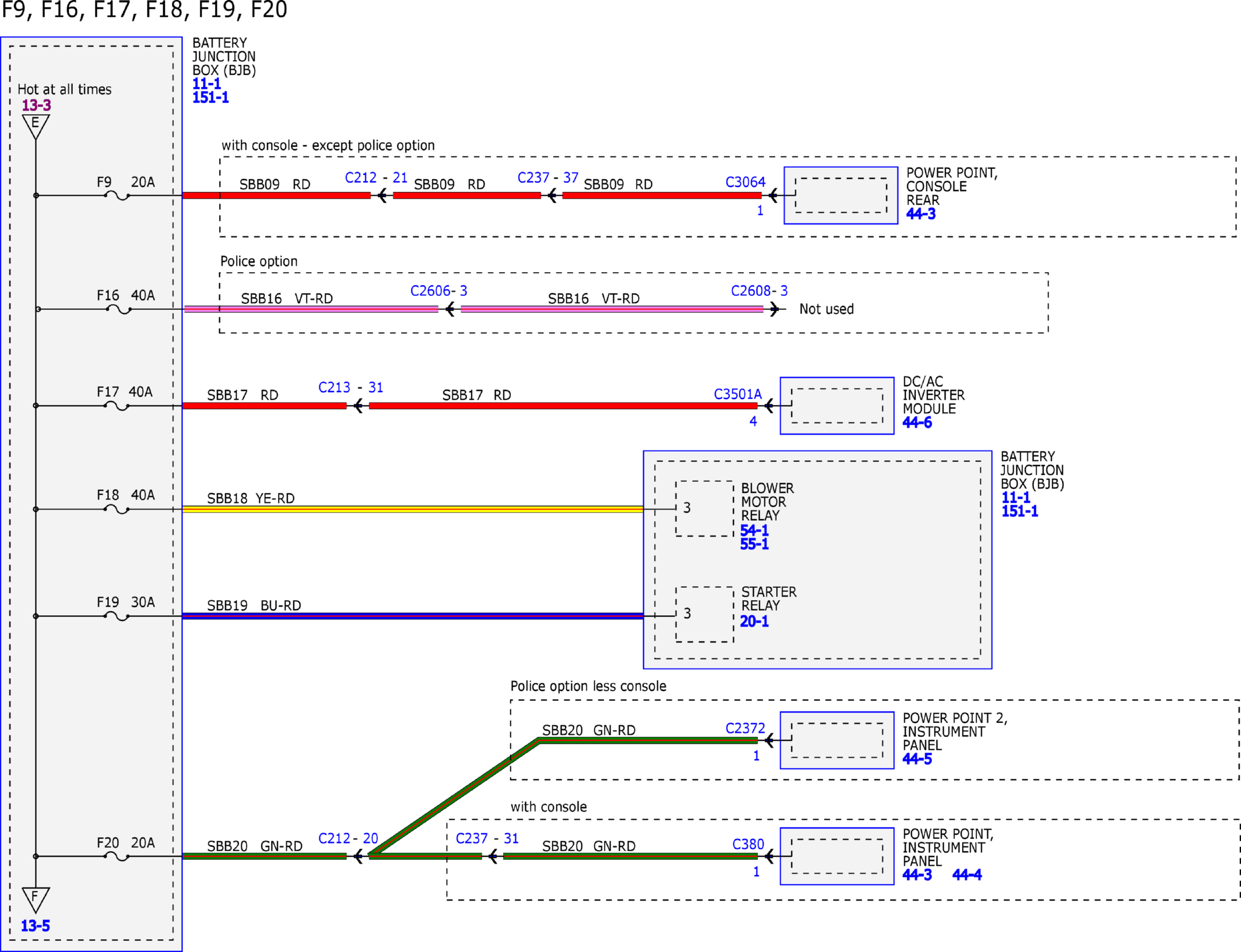

Fig 24: Power Distribution/BCM System Wiring Diagrams (24 Of 48)

GFDW12524

Courtesy of FORD MOTOR COMPANY

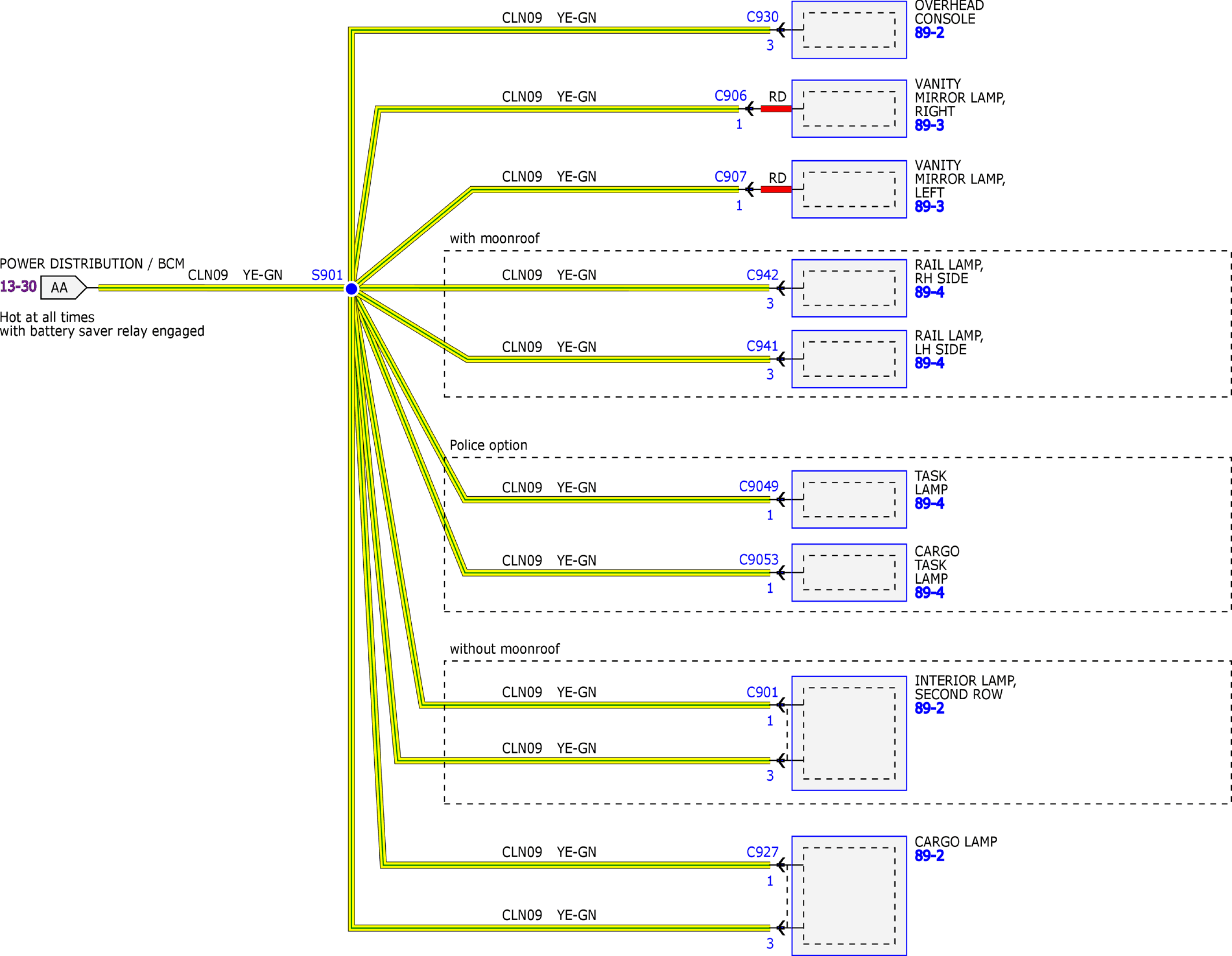

Fig 25: Power Distribution/BCM System Wiring Diagrams (25 Of 48)

GFDW12525

Courtesy of FORD MOTOR COMPANY

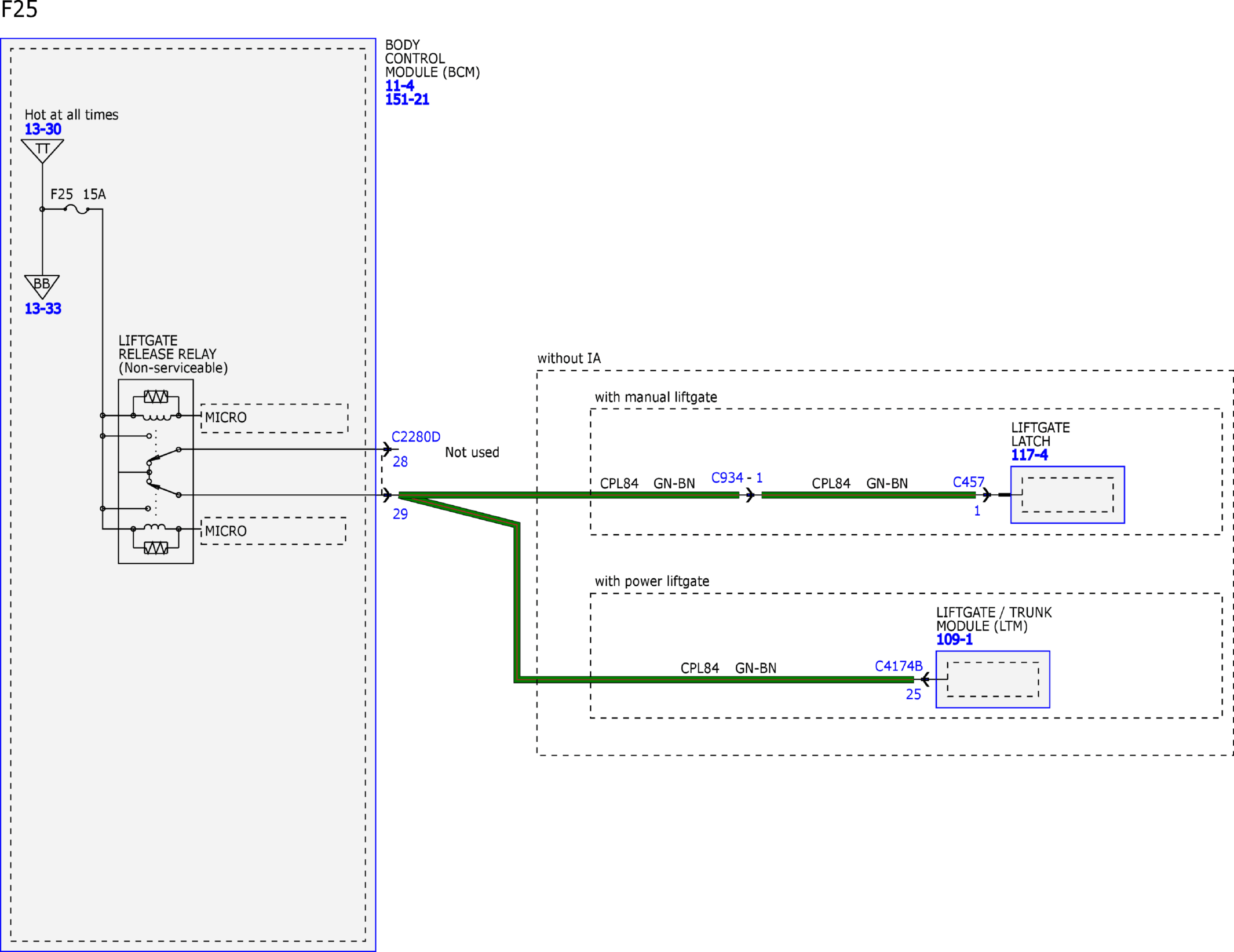

Fig 26: Power Distribution/BCM System Wiring Diagrams (26 Of 48)

GFDW12526

Courtesy of FORD MOTOR COMPANY

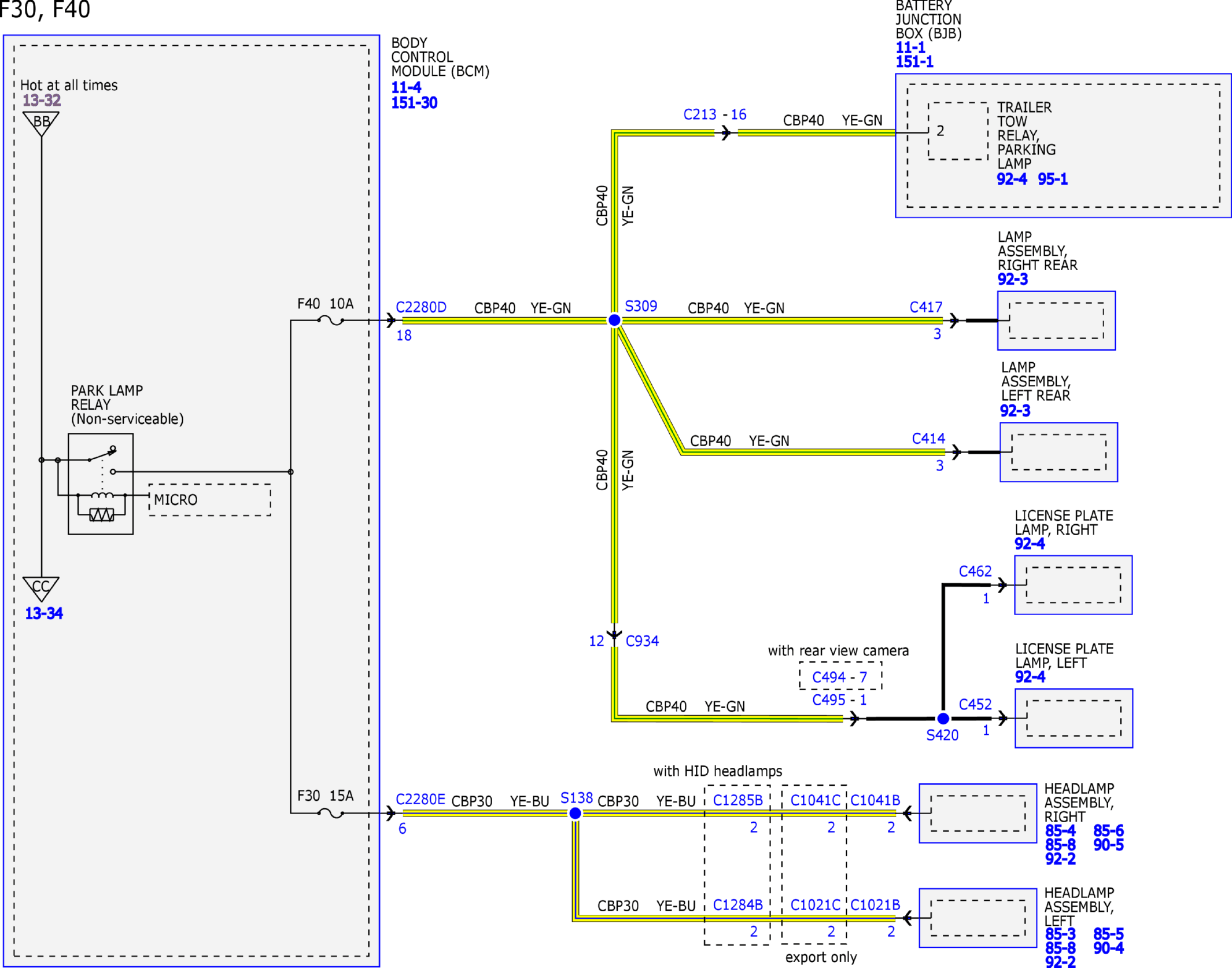

Fig 27: Power Distribution/BCM System Wiring Diagrams (27 Of 48)

GFDW12527

Courtesy of FORD MOTOR COMPANY

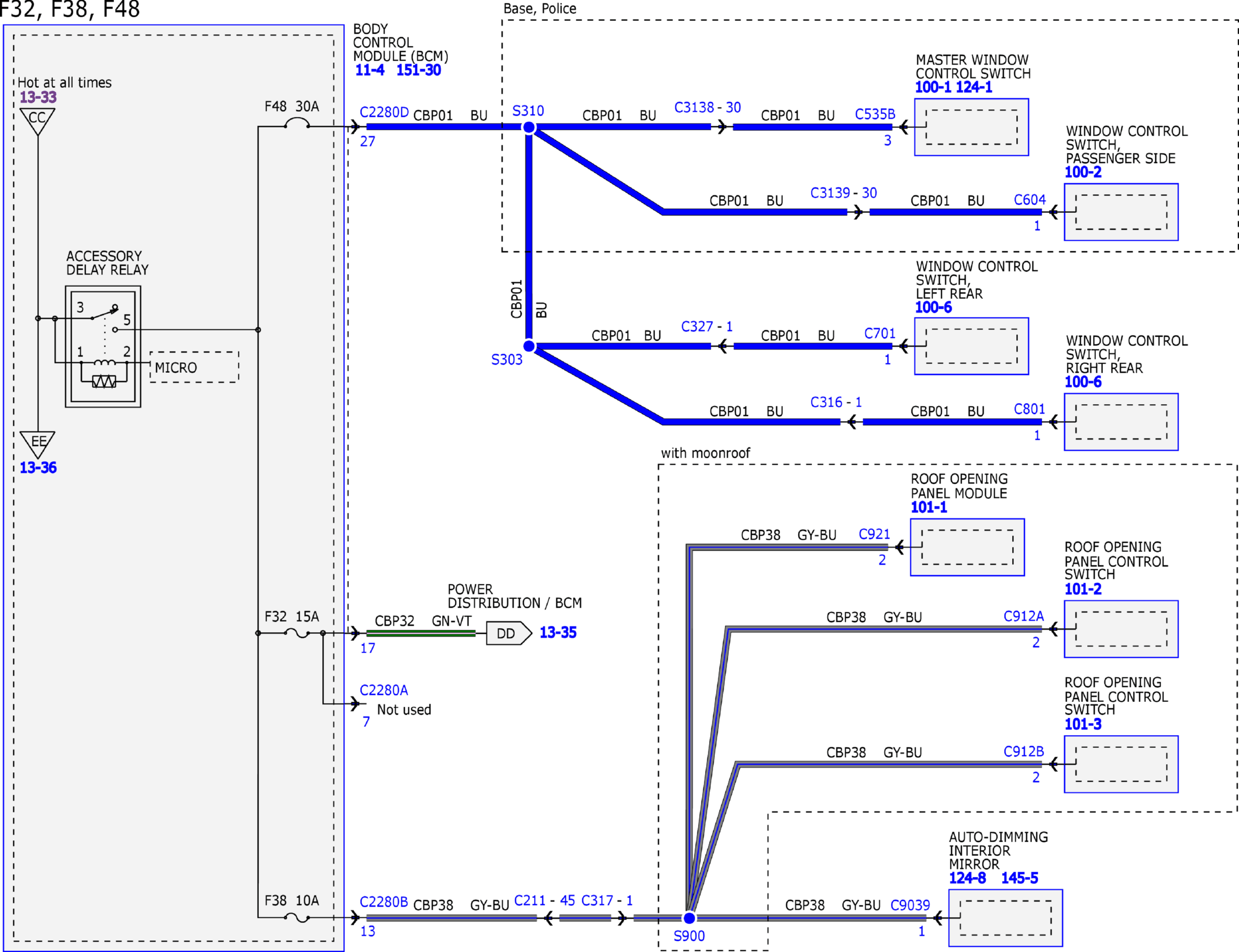

Fig 28: Power Distribution/BCM System Wiring Diagrams (28 Of 48)

GFDW12528

Courtesy of FORD MOTOR COMPANY

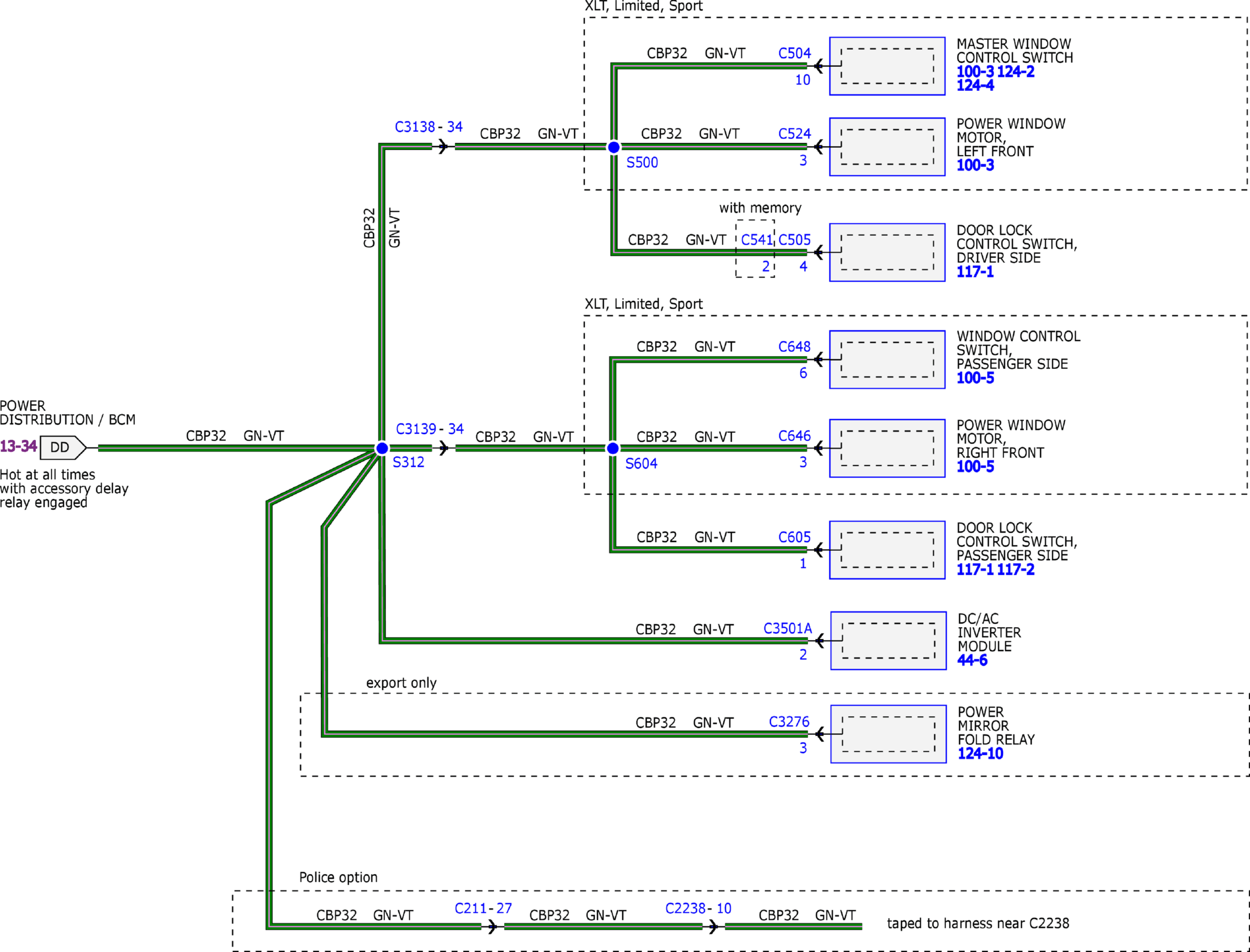

Fig 29: Power Distribution/BCM System Wiring Diagrams (29 Of 48)

GFDW12529

Courtesy of FORD MOTOR COMPANY

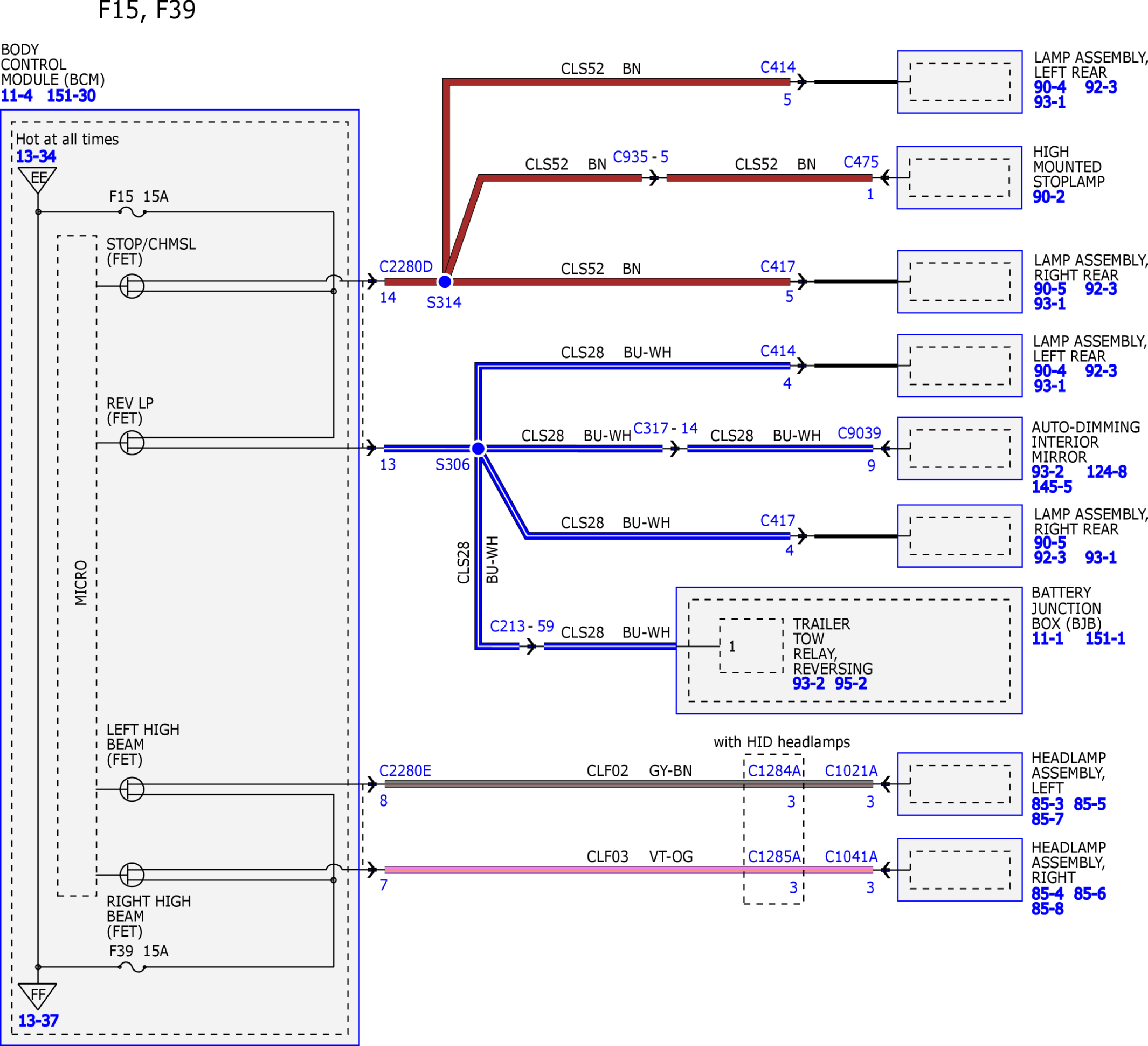

Fig 30: Power Distribution/BCM System Wiring Diagrams (30 Of 48)

GFDW12530

Courtesy of FORD MOTOR COMPANY

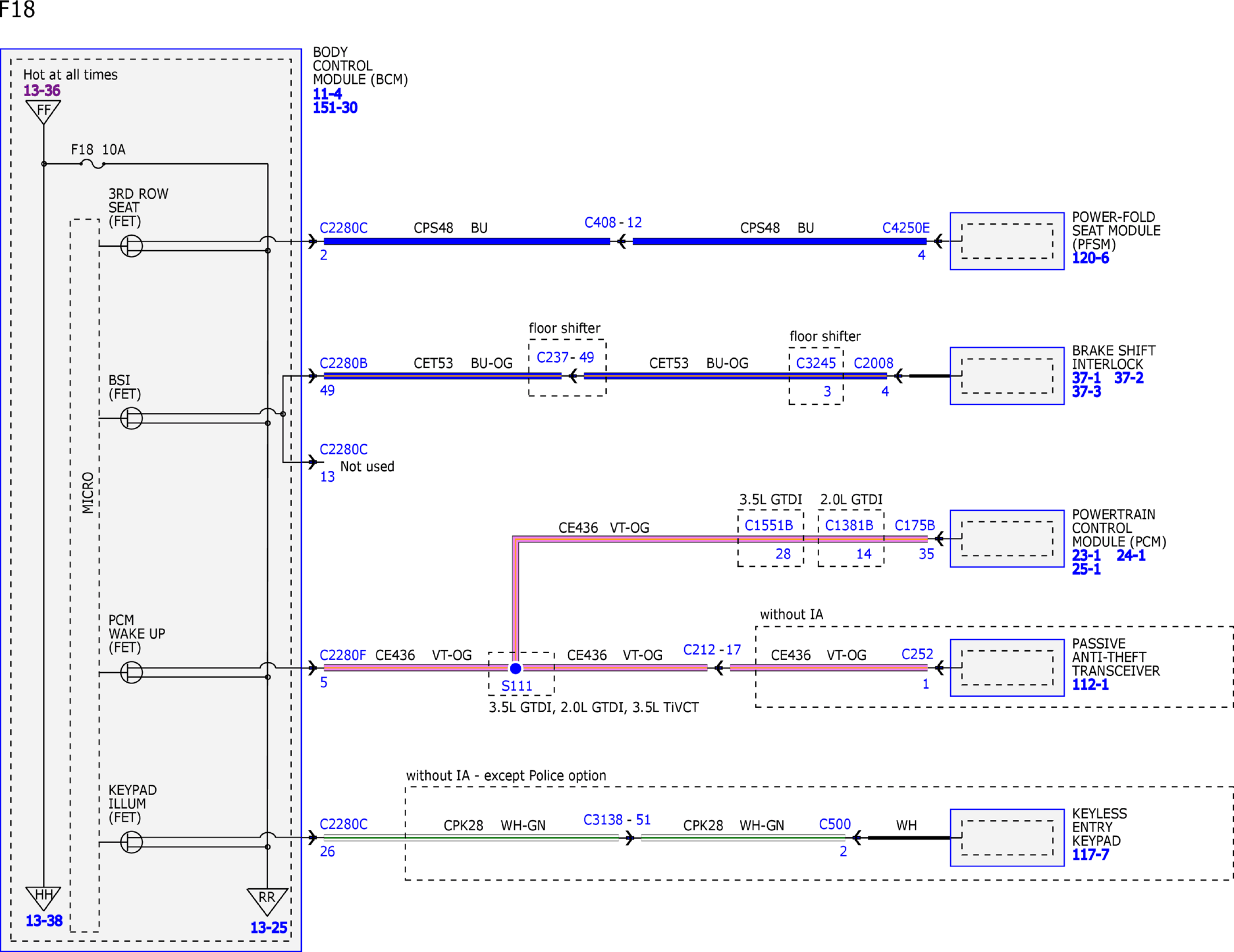

Fig 31: Power Distribution/BCM System Wiring Diagrams (31 Of 48)

GFDW12531

Courtesy of FORD MOTOR COMPANY

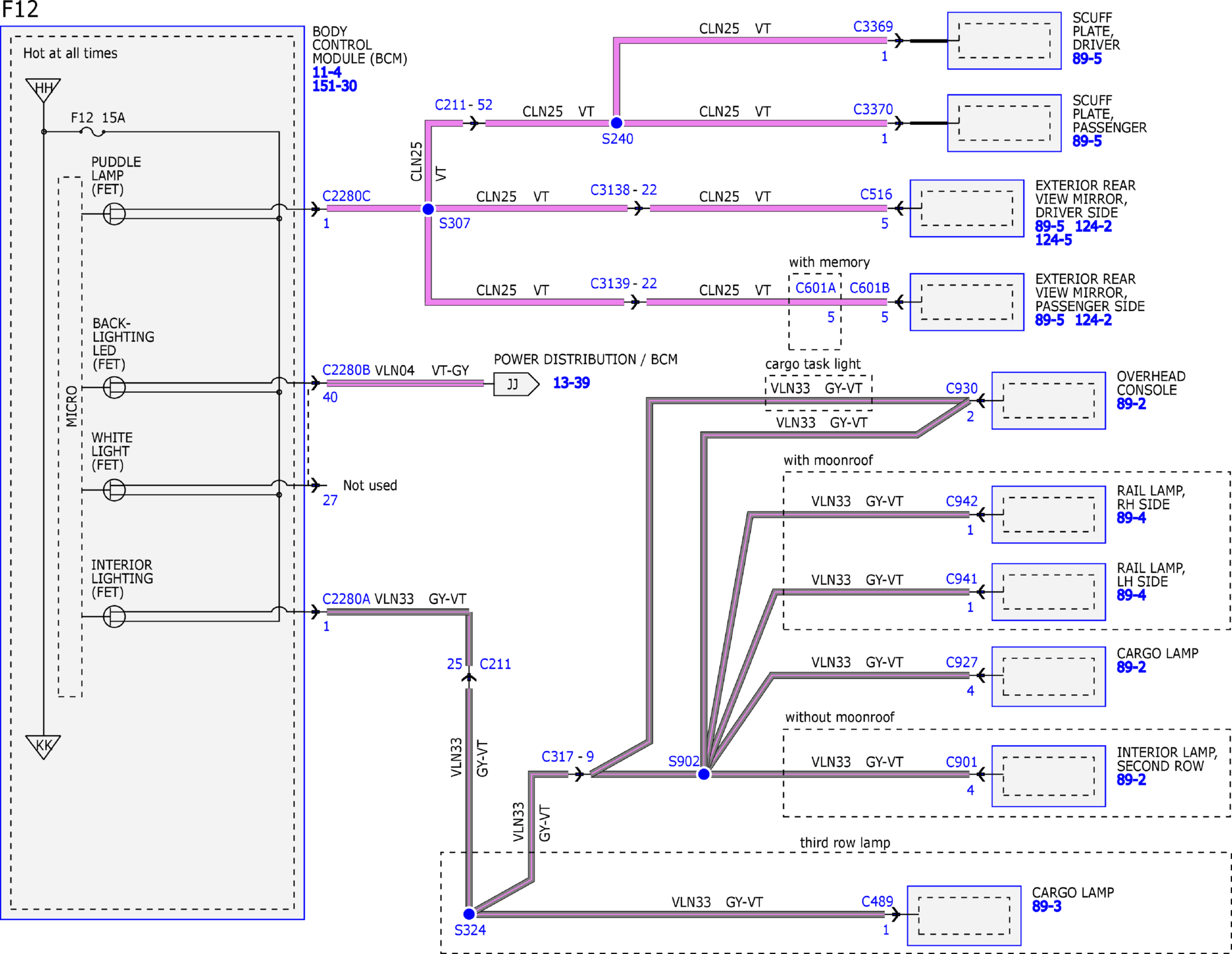

Fig 32: Power Distribution/BCM System Wiring Diagrams (32 Of 48)

GFDW12532

Courtesy of FORD MOTOR COMPANY

Fig 33: Power Distribution/BCM System Wiring Diagrams (33 Of 48)

GFDW12533

Courtesy of FORD MOTOR COMPANY

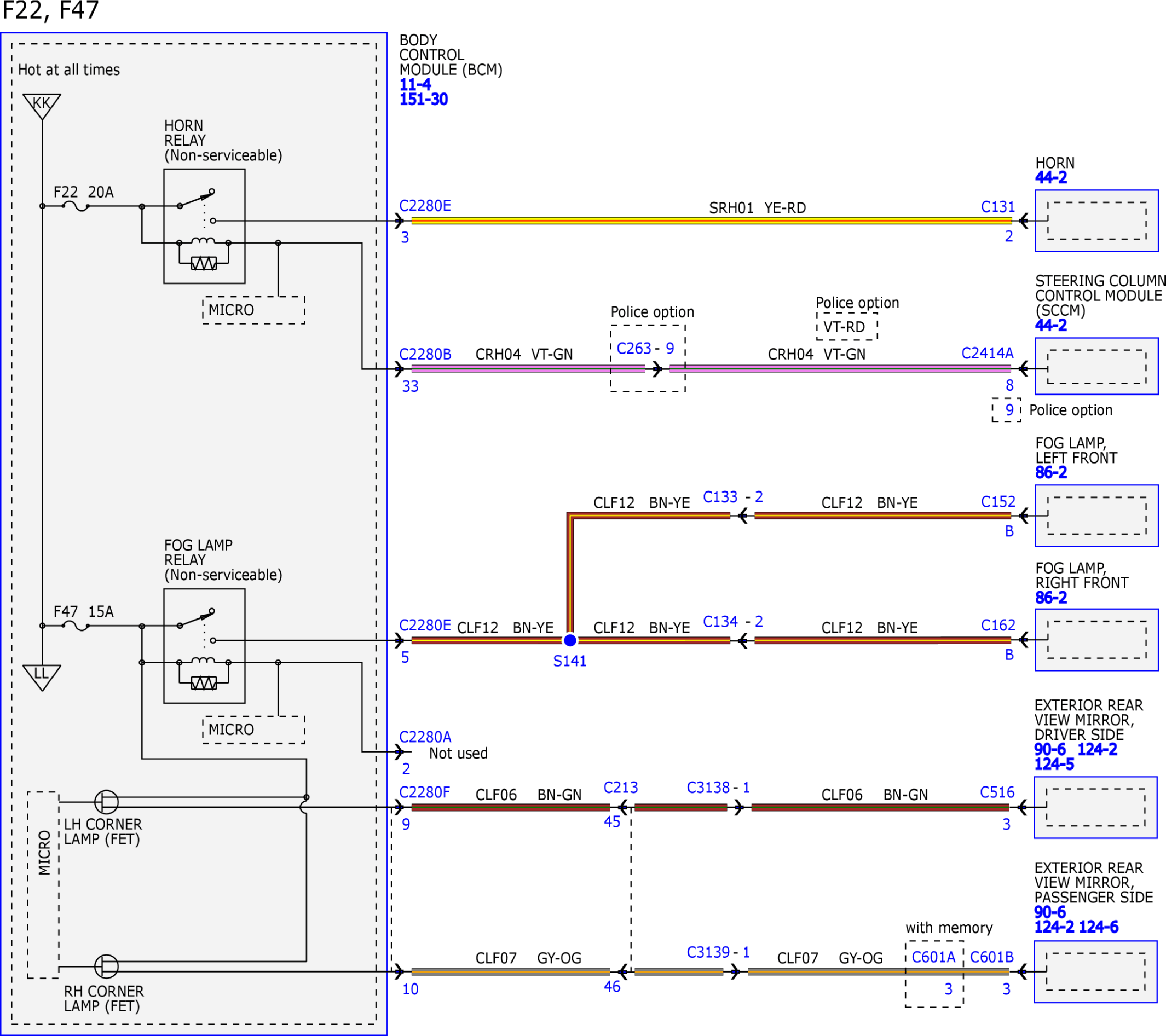

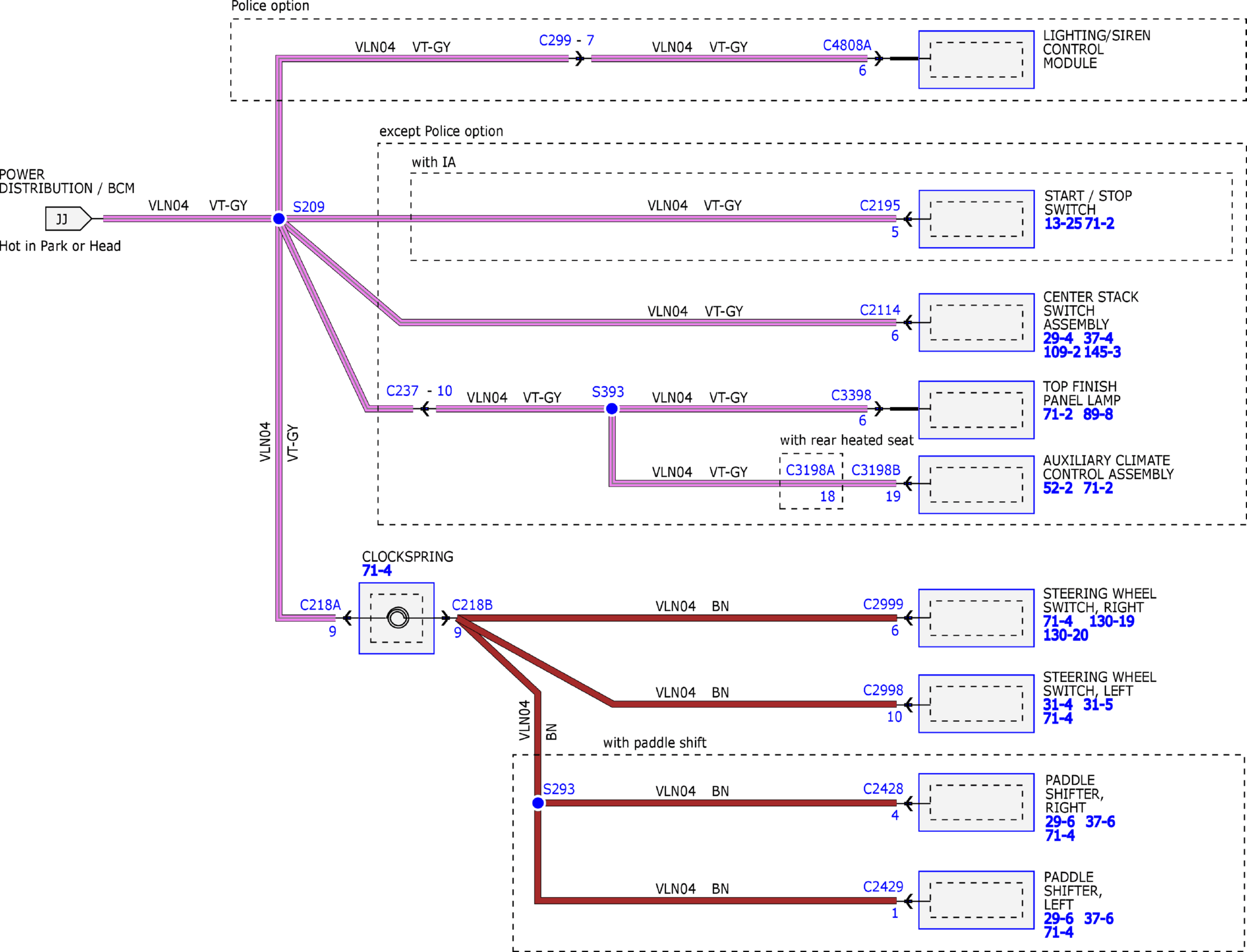

Fig 34: Power Distribution/BCM System Wiring Diagrams (34 Of 48)

GFDW12534

Courtesy of FORD MOTOR COMPANY

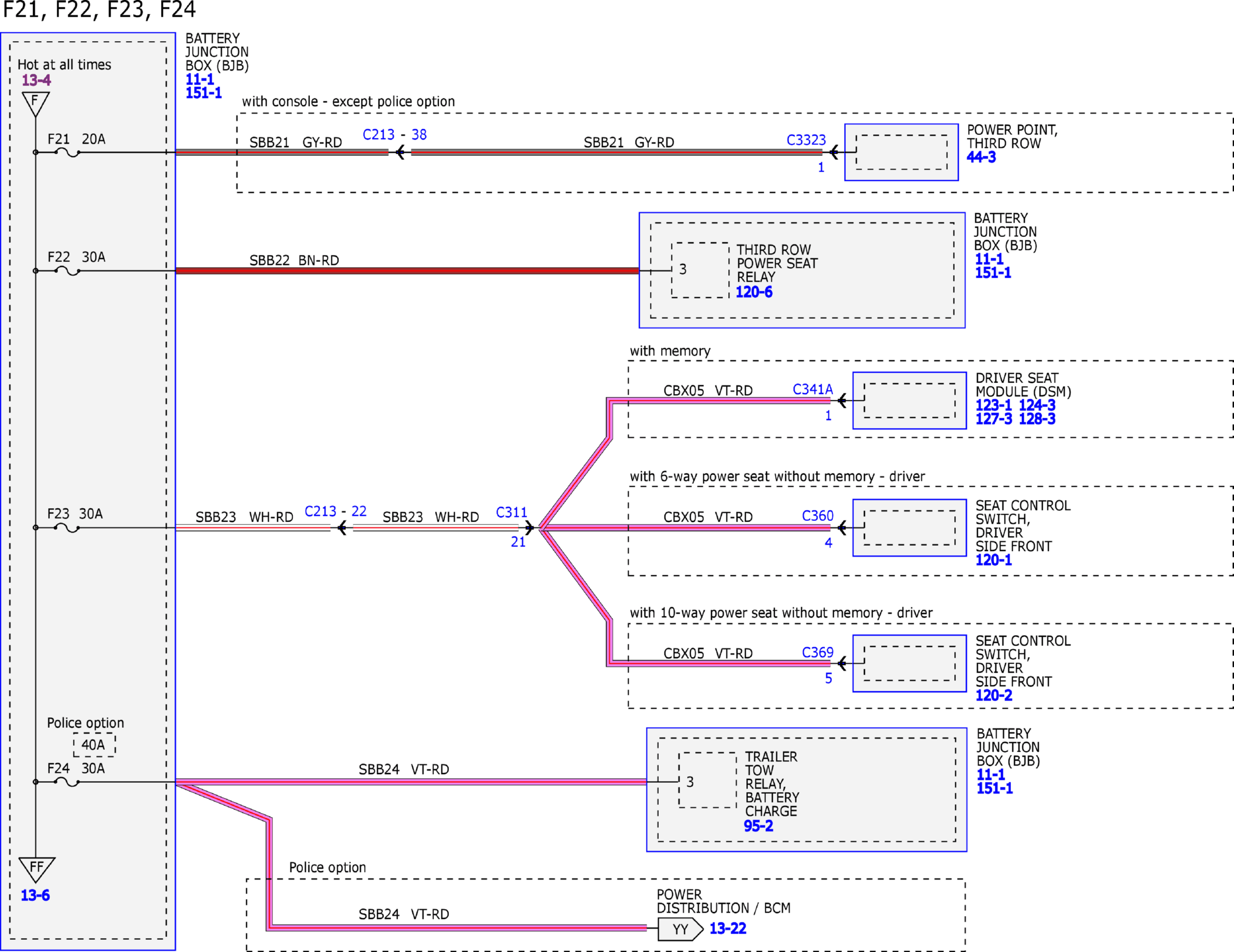

Fig 35: Power Distribution/BCM System Wiring Diagrams (35 Of 48)

GFDW12535

Courtesy of FORD MOTOR COMPANY

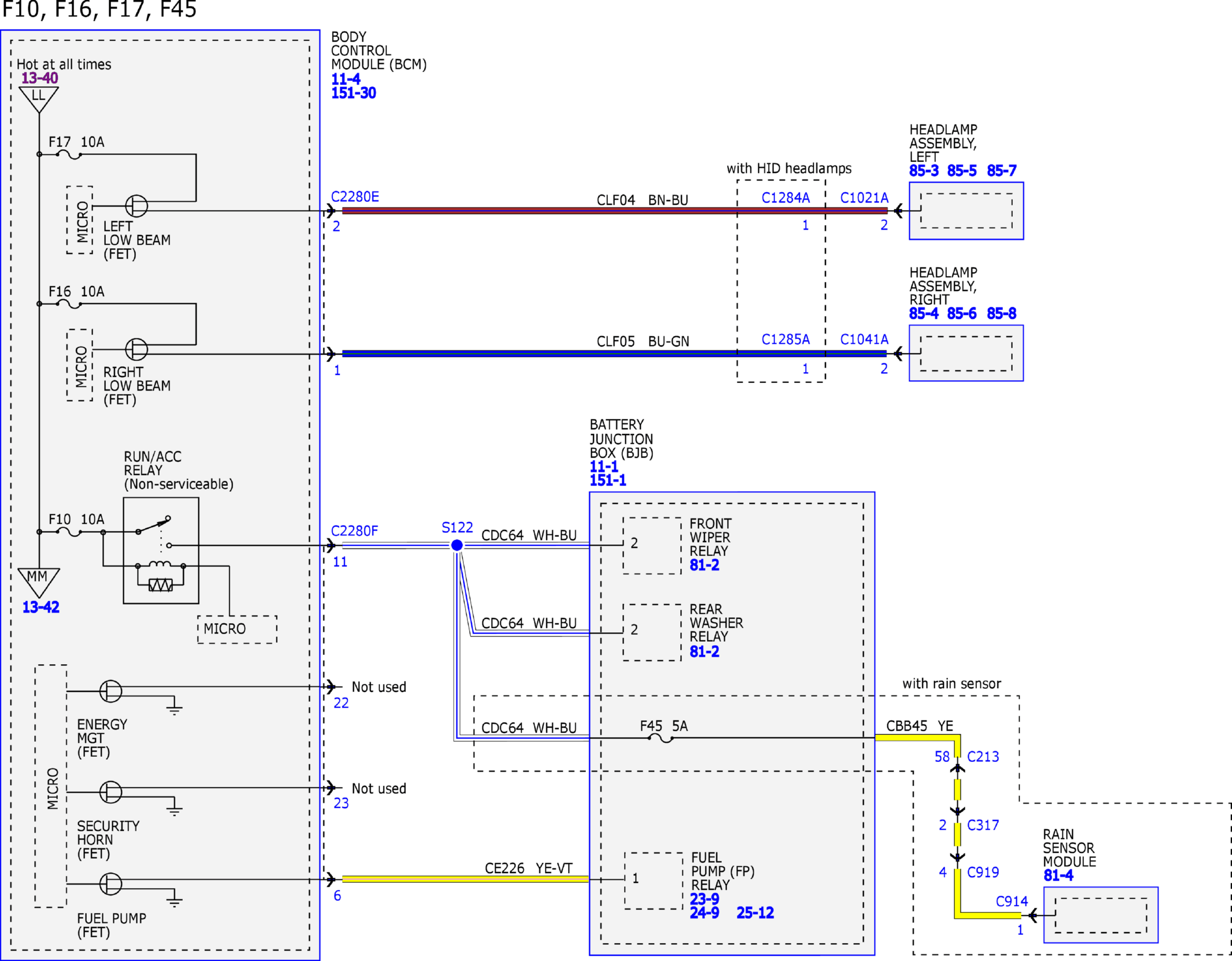

Fig 36: Power Distribution/BCM System Wiring Diagrams (36 Of 48)

GFDW12536

Courtesy of FORD MOTOR COMPANY

Fig 37: Power Distribution/BCM System Wiring Diagrams (37 Of 48)

GFDW12537

Courtesy of FORD MOTOR COMPANY

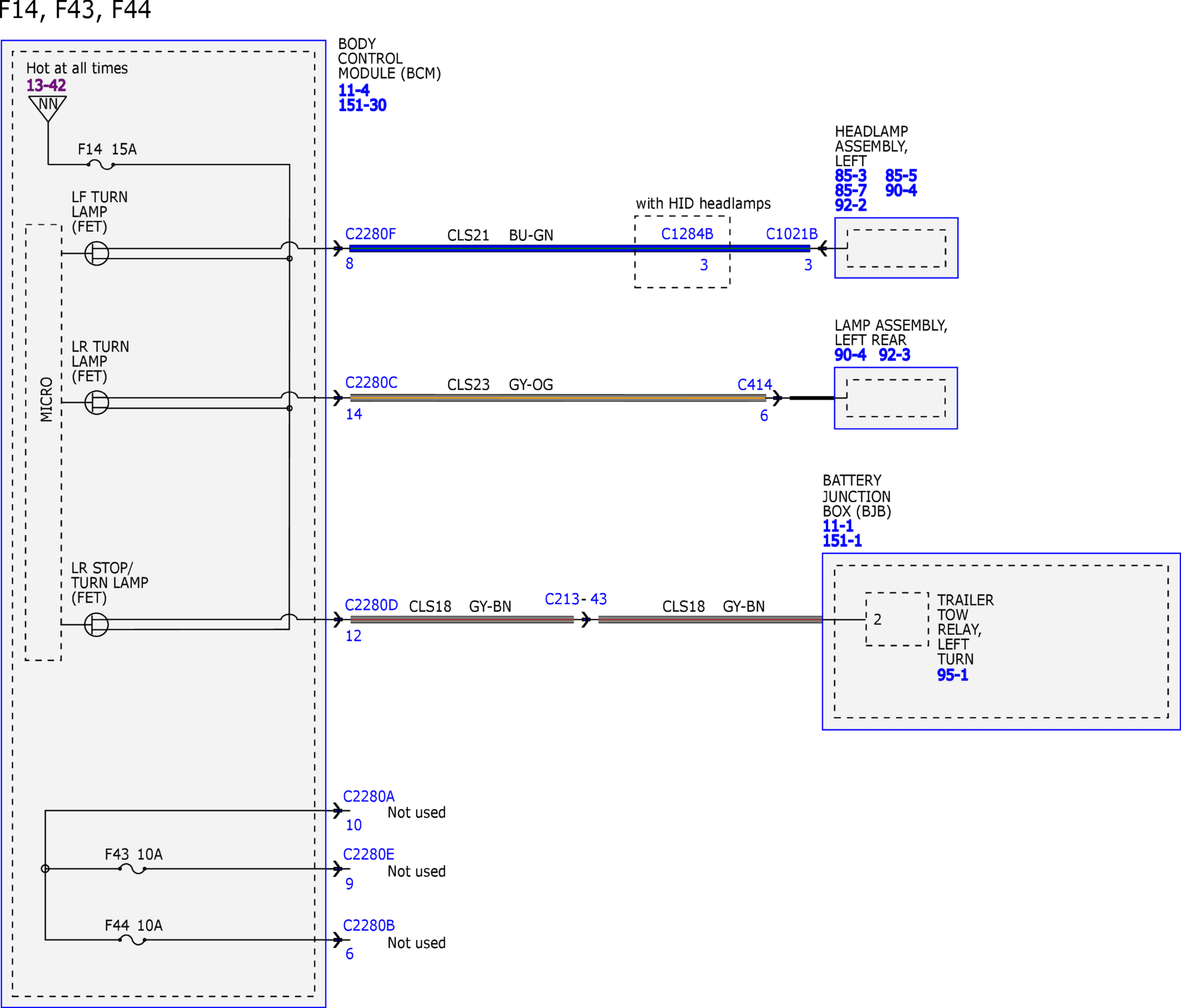

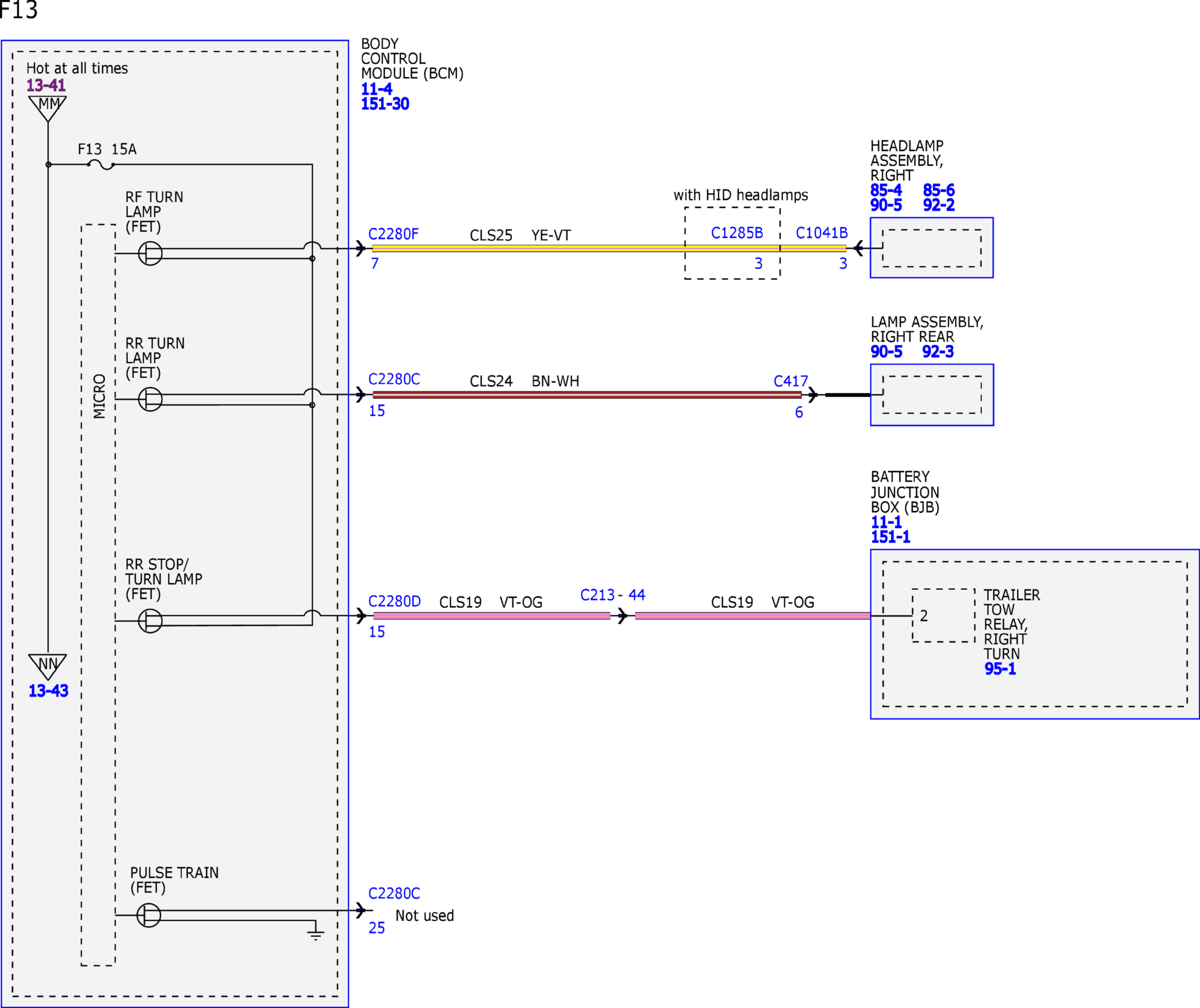

Fig 38: Power Distribution/BCM System Wiring Diagrams (38 Of 48)

GFDW12538

Courtesy of FORD MOTOR COMPANY

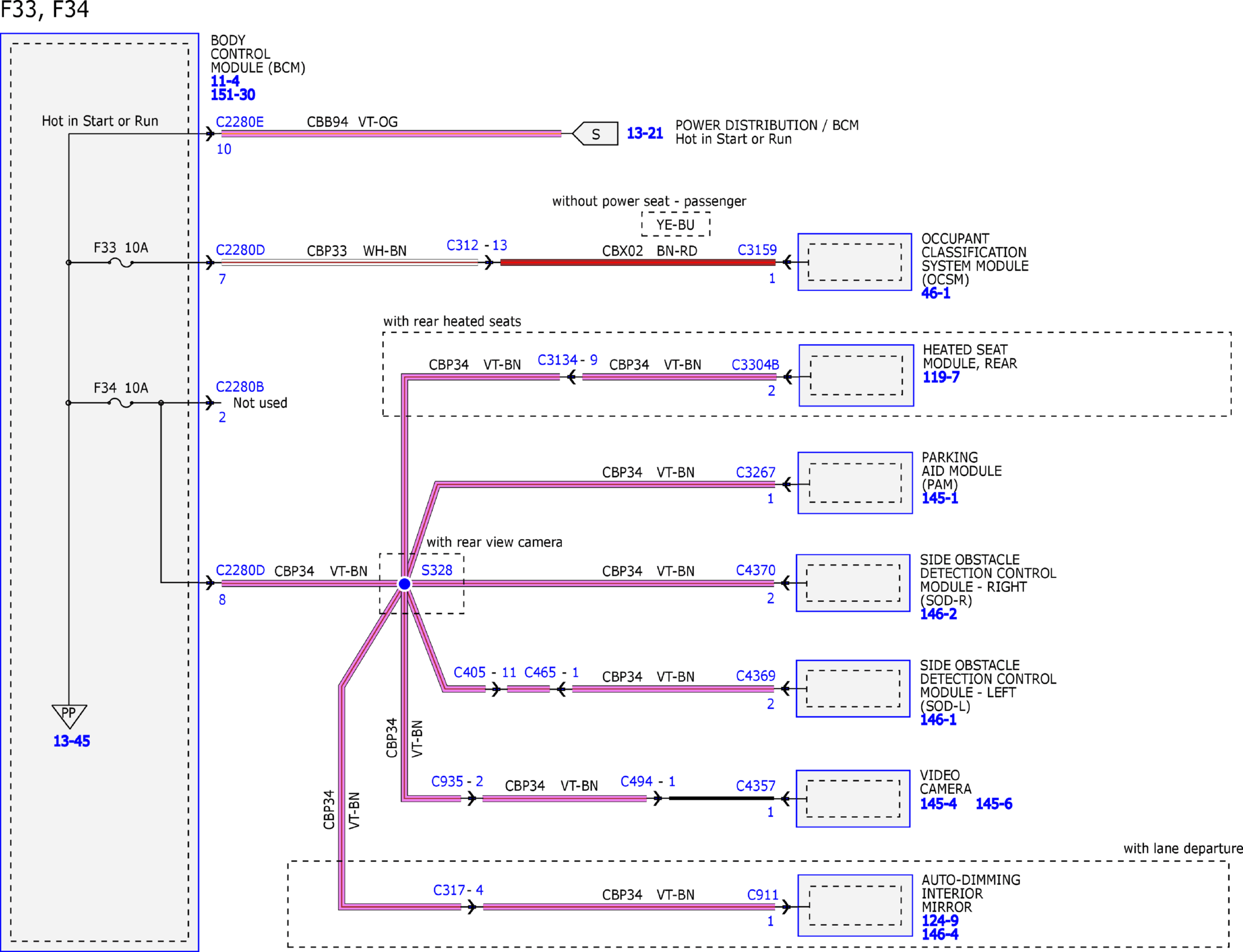

Fig 39: Power Distribution/BCM System Wiring Diagrams (39 Of 48)

GFDW12539

Courtesy of FORD MOTOR COMPANY

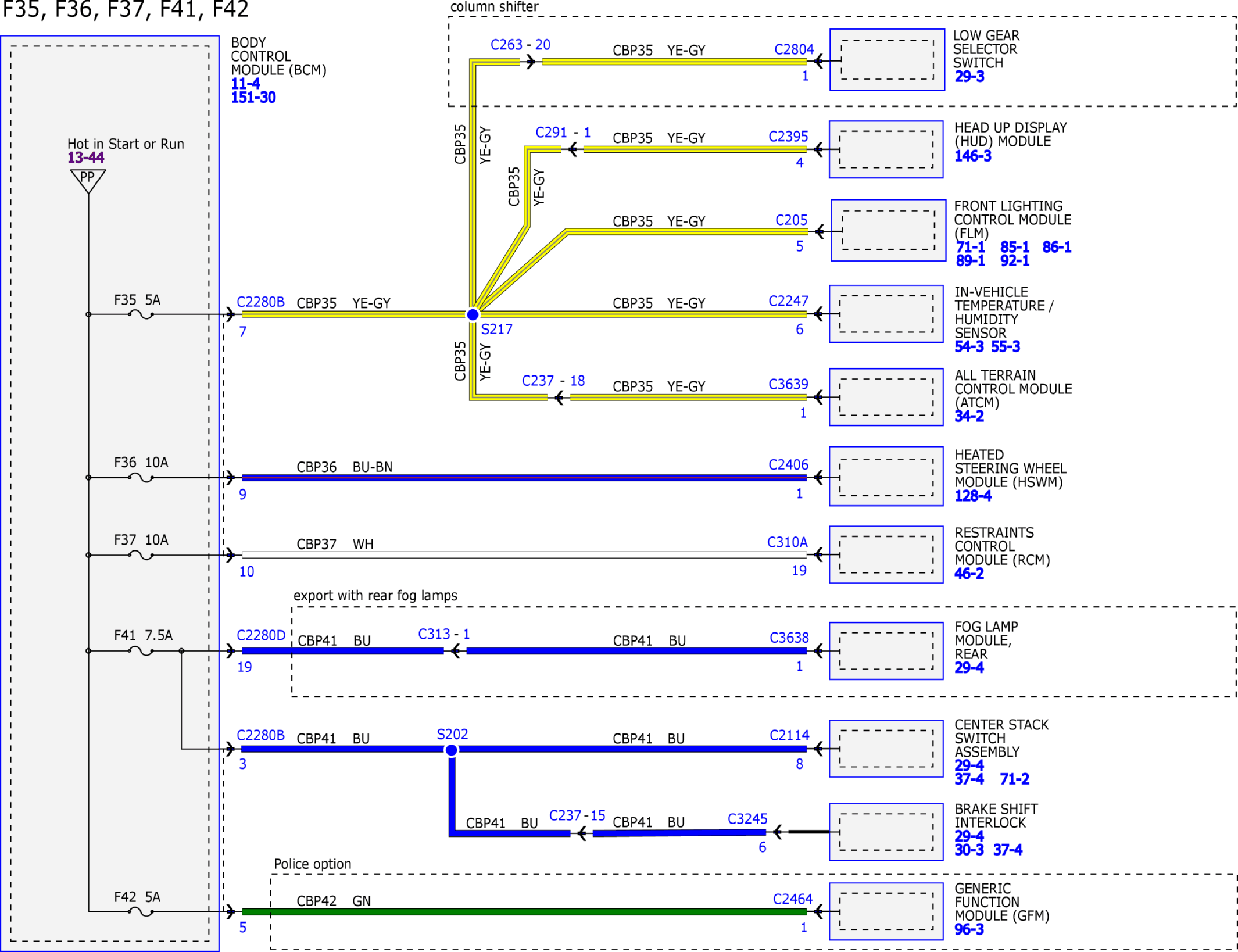

Fig 40: Power Distribution/BCM System Wiring Diagrams (40 Of 48)

GFDW12540

Courtesy of FORD MOTOR COMPANY

Fig 41: Power Distribution/BCM System Wiring Diagrams (41 Of 48)

GFDW12541

Courtesy of FORD MOTOR COMPANY

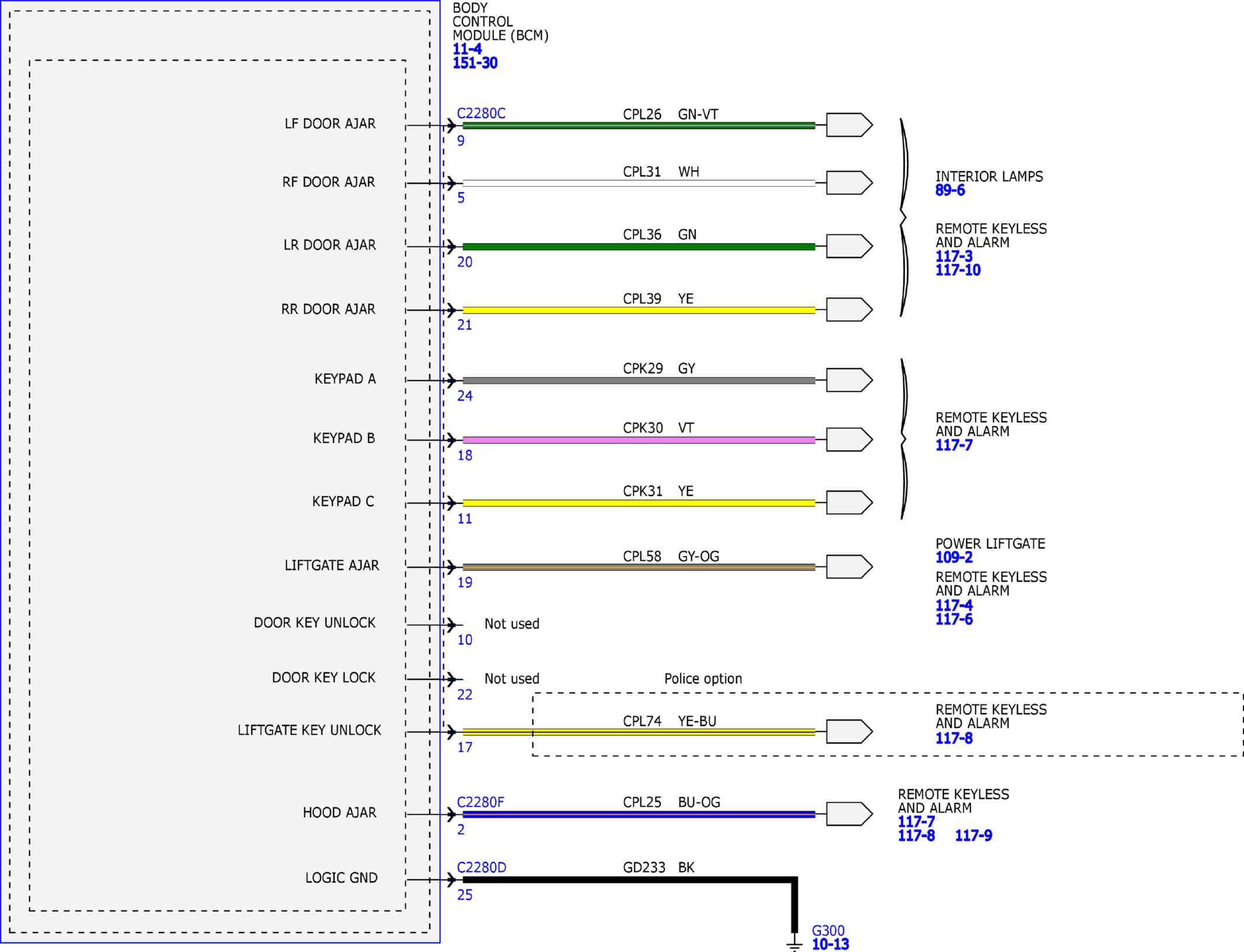

Fig 42: Power Distribution/BCM System Wiring Diagrams (42 Of 48)

GFDW12542

Courtesy of FORD MOTOR COMPANY

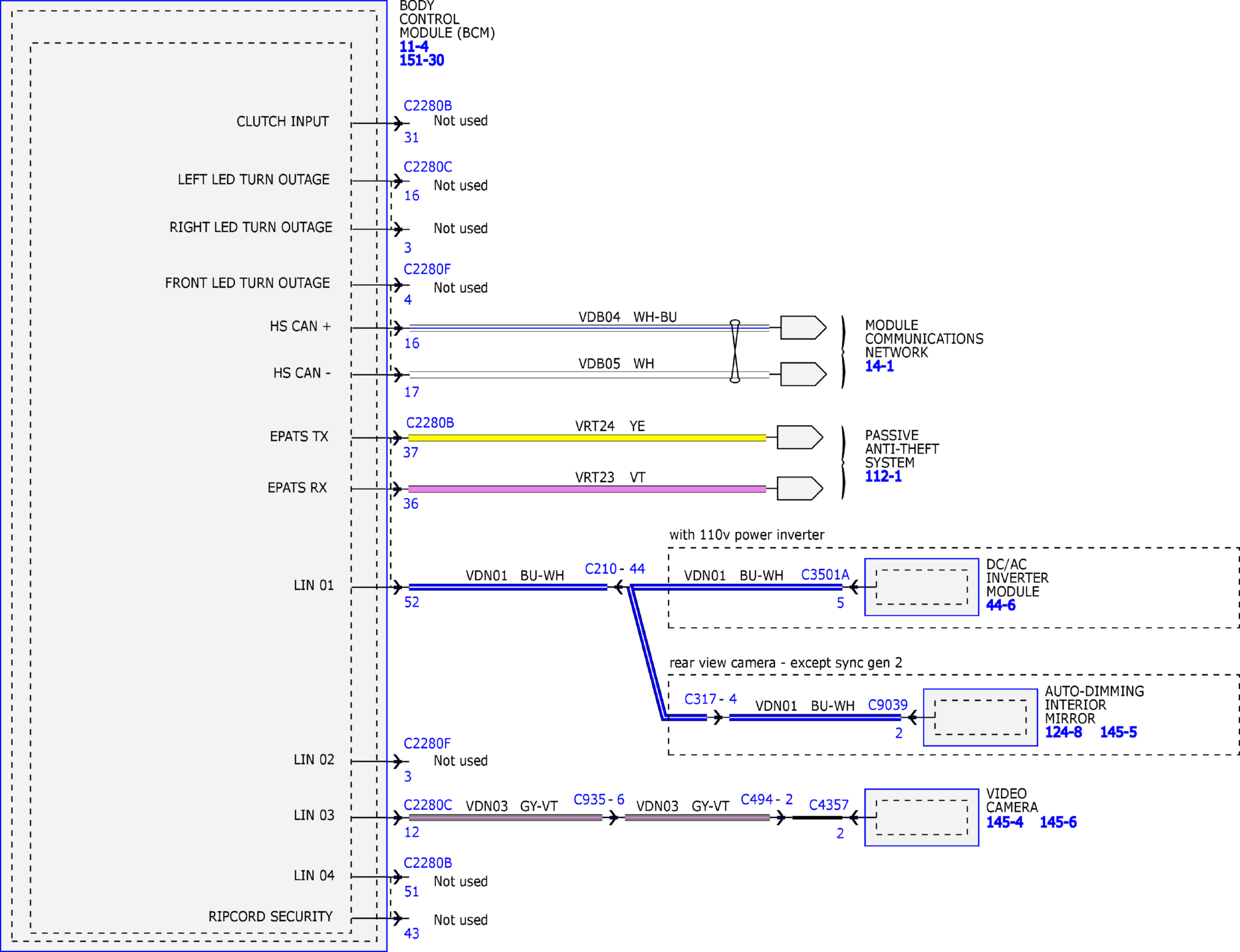

Fig 43: Power Distribution/BCM System Wiring Diagrams (43 Of 48)

GFDW12543

Courtesy of FORD MOTOR COMPANY

Fig 44: Power Distribution/BCM System Wiring Diagrams (44 Of 48)

GFDW12544

Courtesy of FORD MOTOR COMPANY

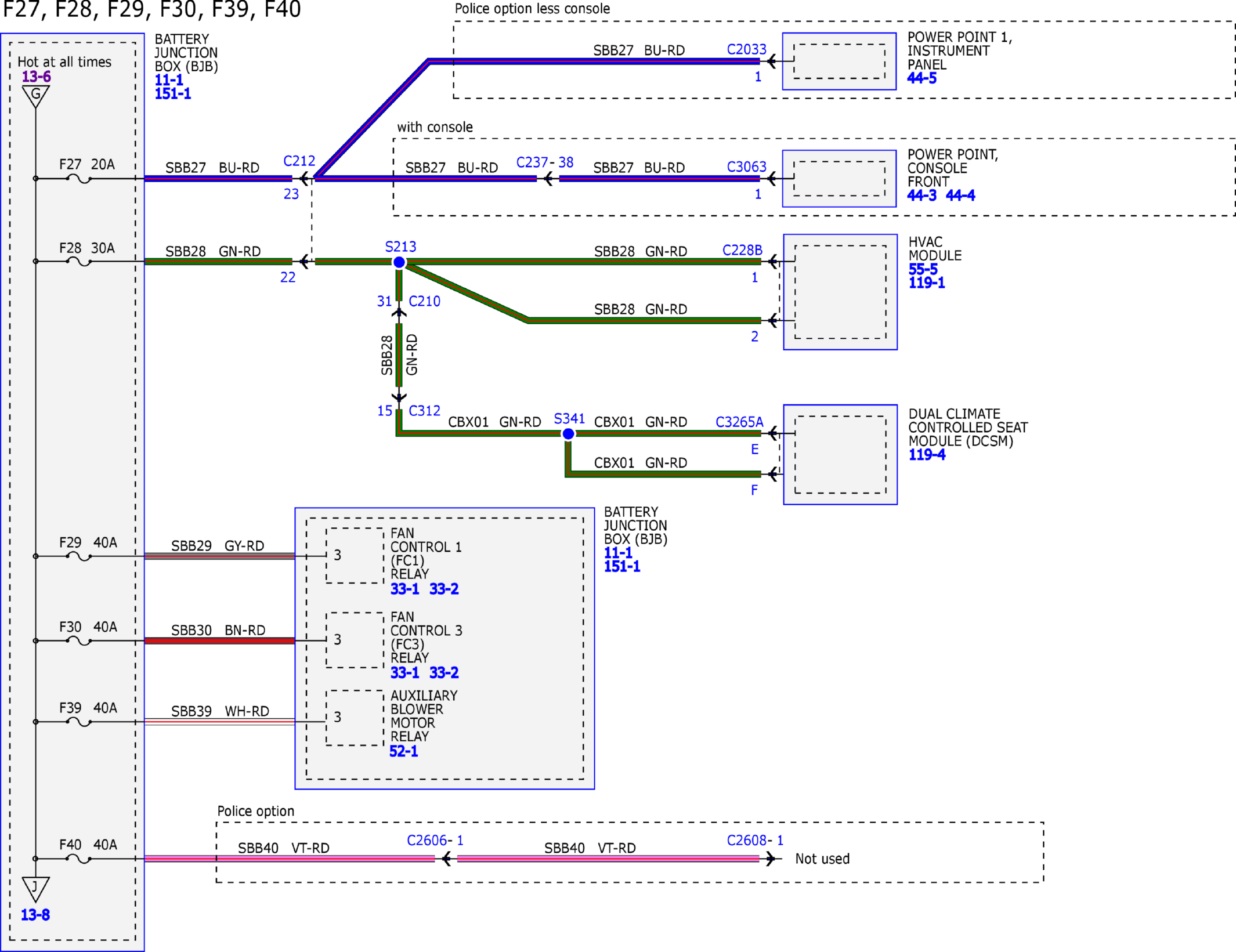

Fig 45: Power Distribution/BCM System Wiring Diagrams (45 Of 48)

GFDW12545

Courtesy of FORD MOTOR COMPANY

Fig 46: Power Distribution/BCM System Wiring Diagrams (46 Of 48)

GFDW12546

Courtesy of FORD MOTOR COMPANY

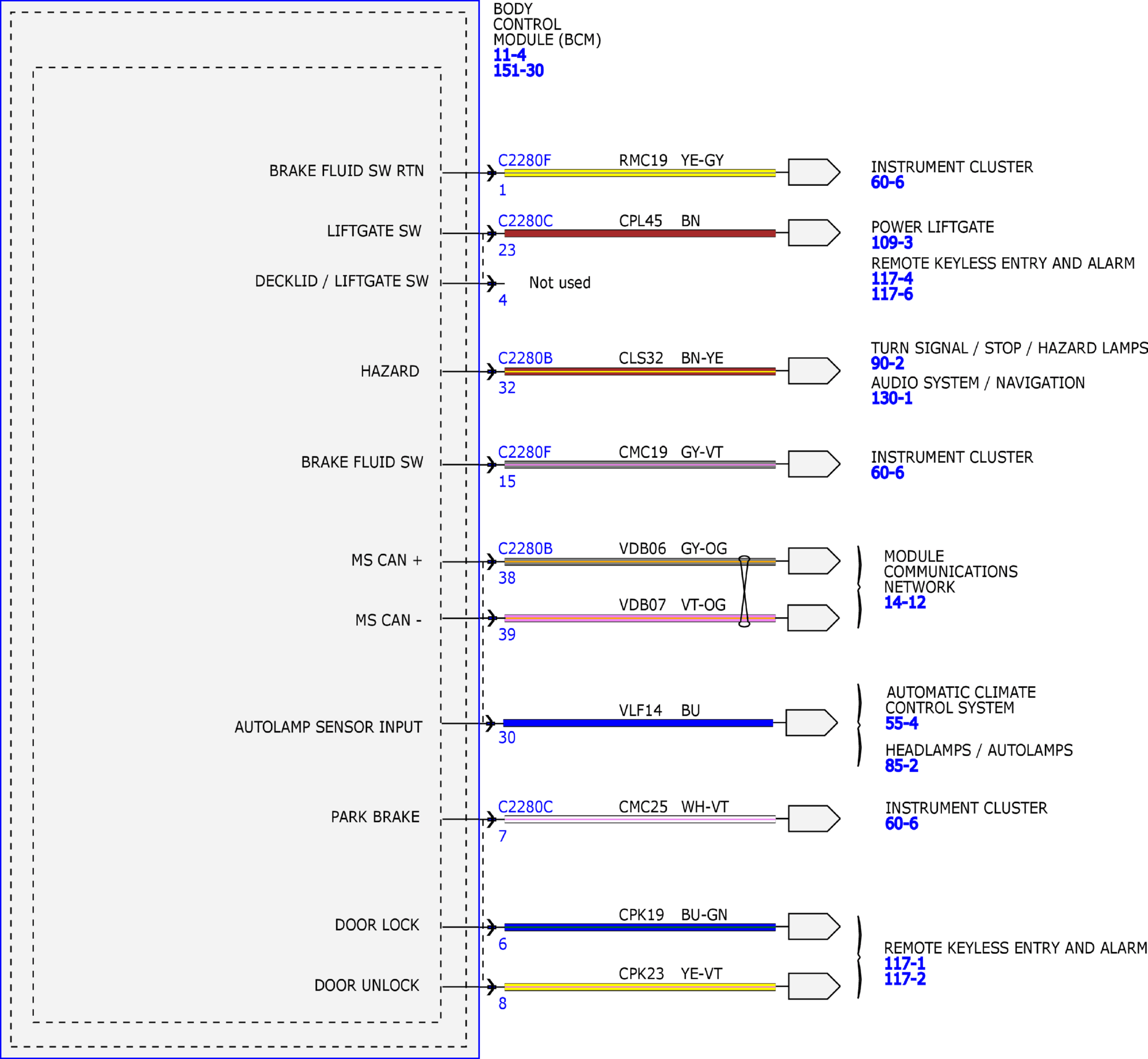

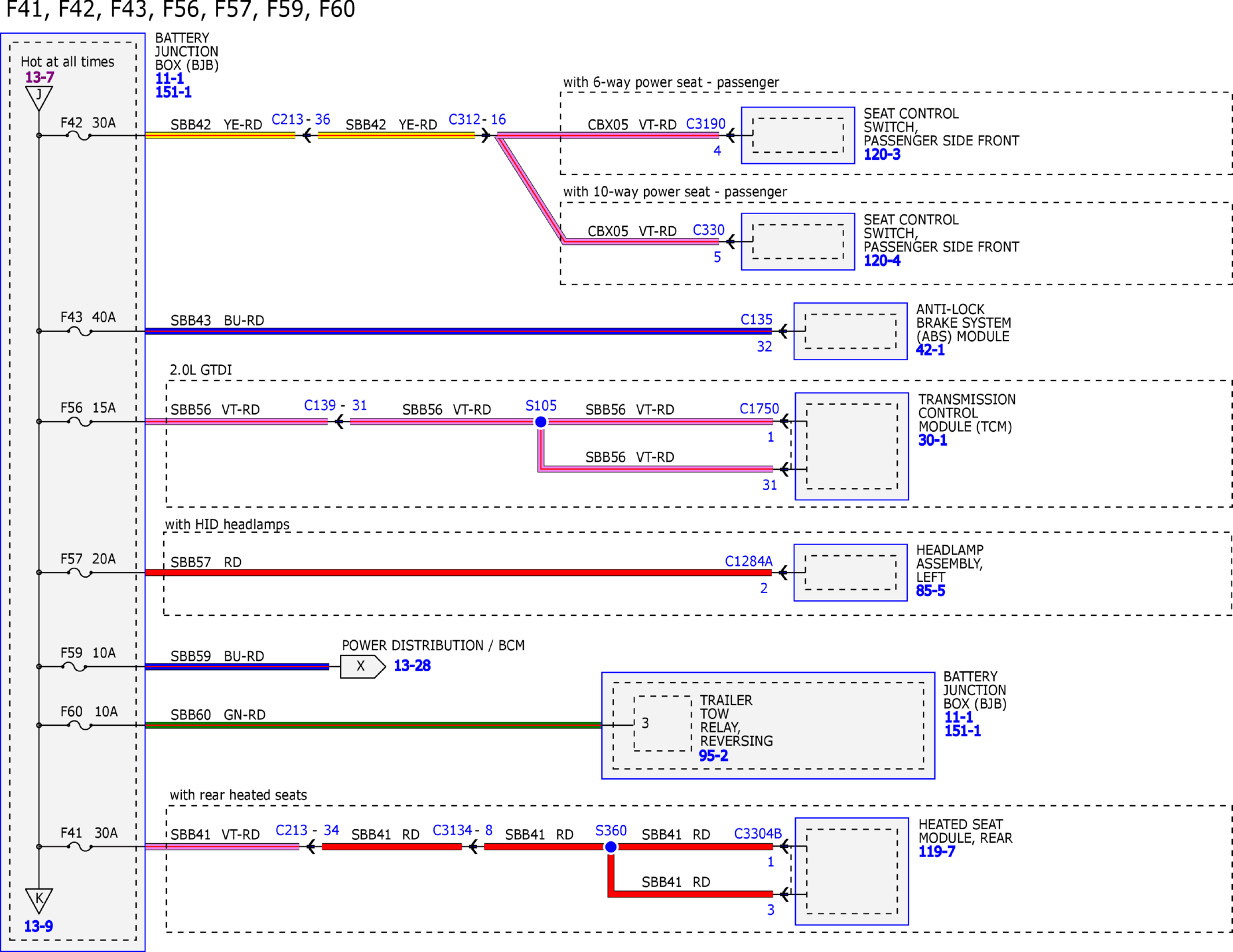

Fig 47: Power Distribution/BCM System Wiring Diagrams (47 Of 48)

GFDW12547

Courtesy of FORD MOTOR COMPANY

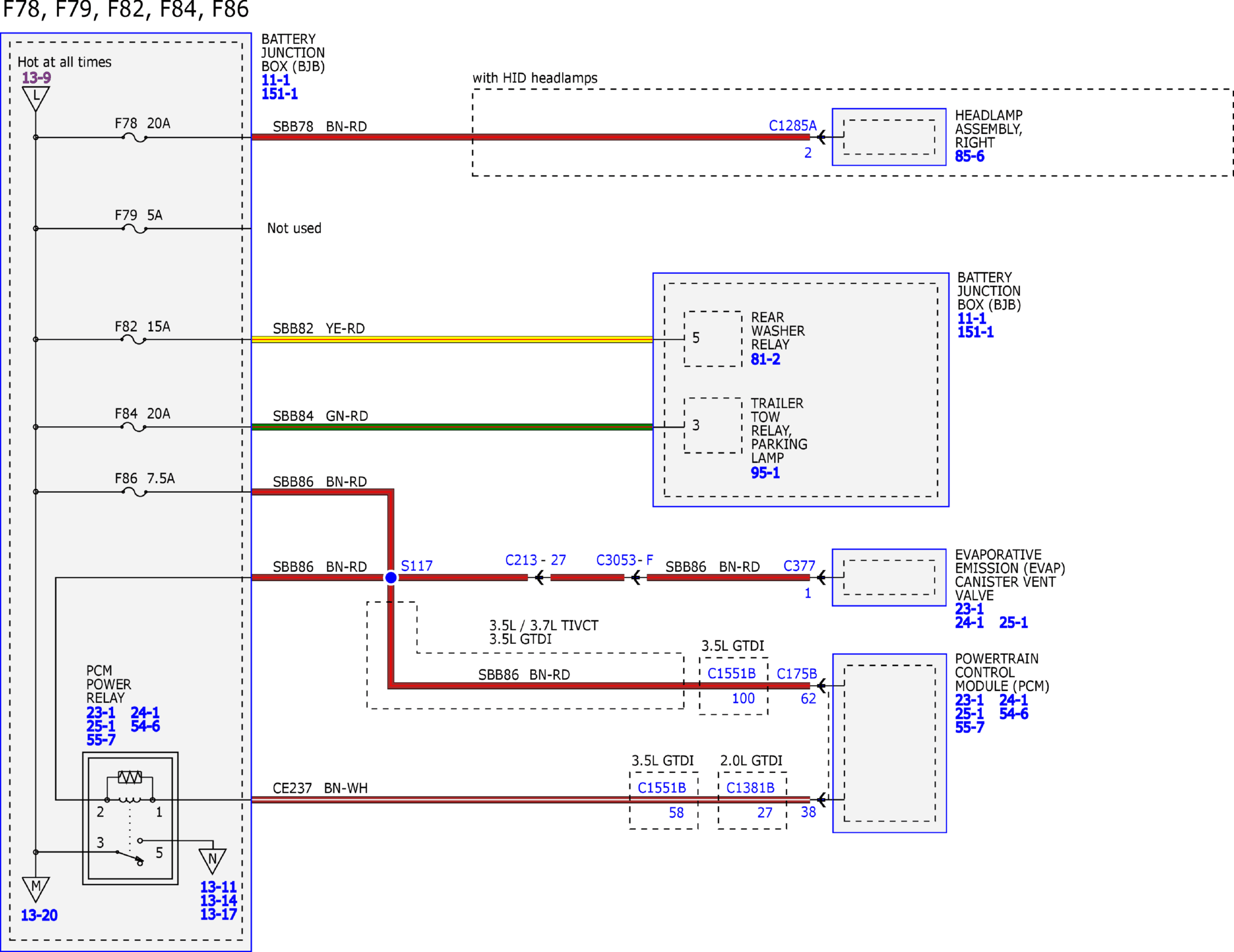

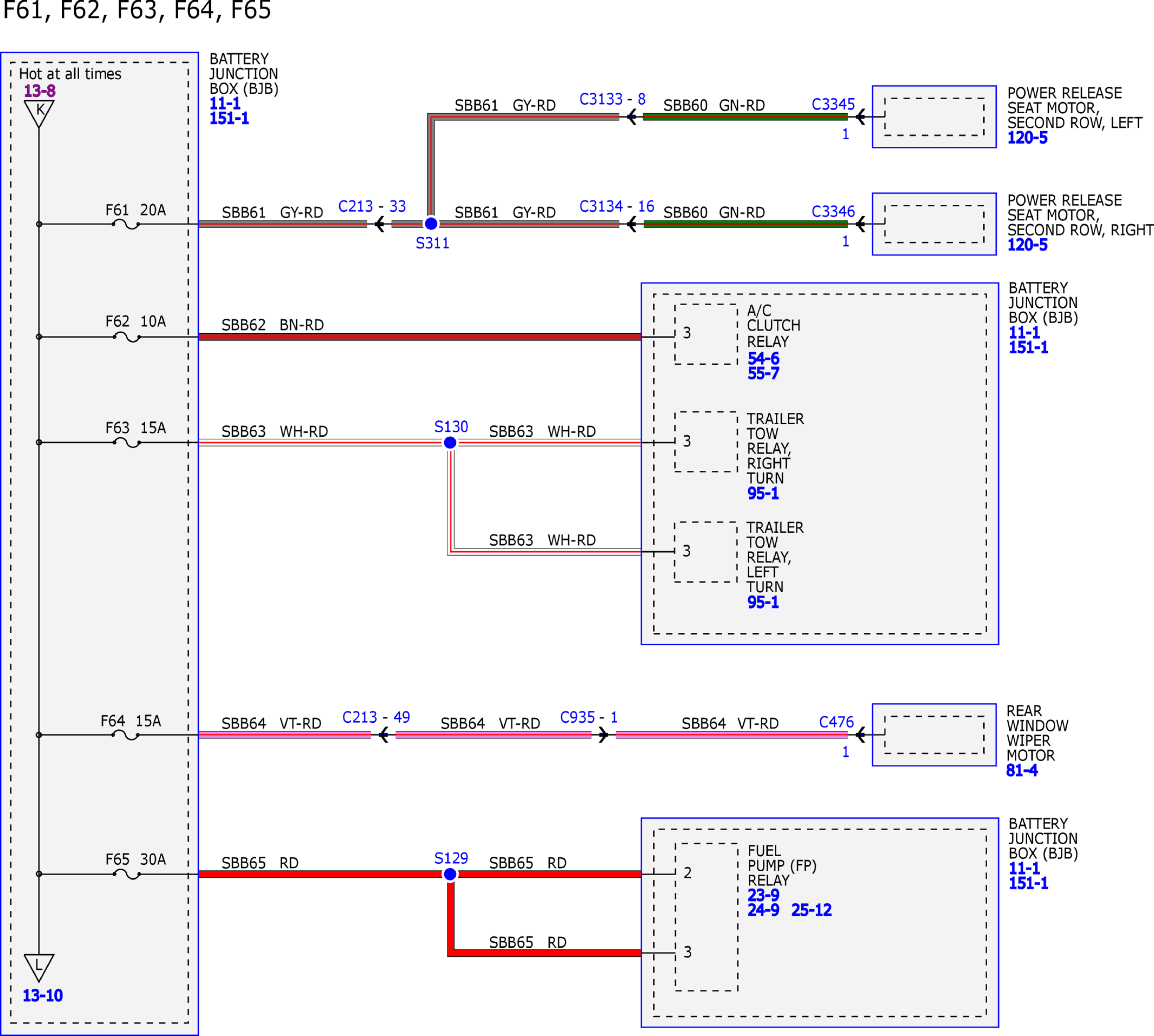

Fig 48: Power Distribution/BCM System Wiring Diagrams (48 Of 48)

GFDW12548

Courtesy of FORD MOTOR COMPANY
