Explorer Limited, 3.5L Eng VIN 8, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Wipers System And Washers System
Wipers System And Washers System

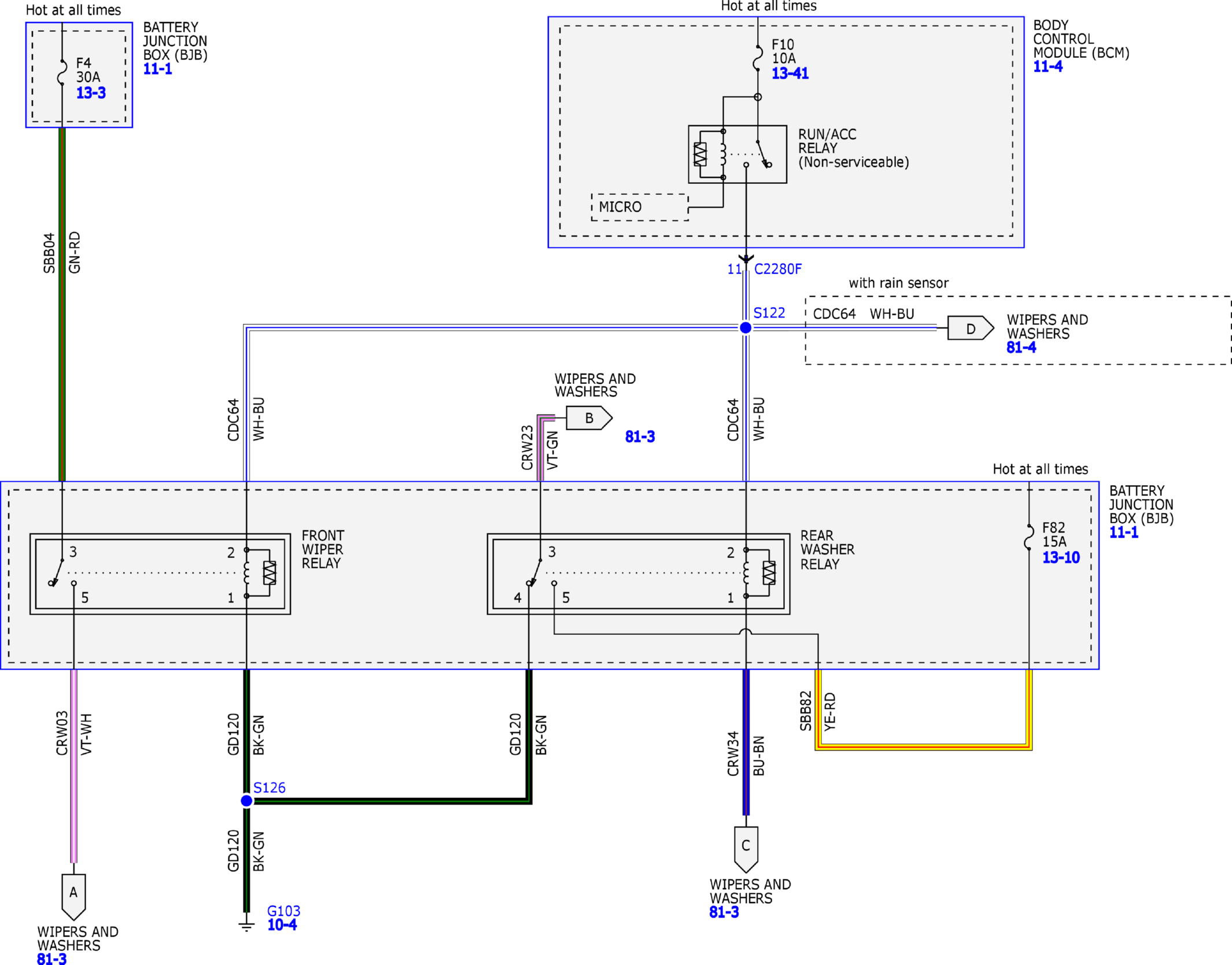

Fig 1: Wipers System And Washers System Wiring Diagrams (1 Of 4)
Courtesy of FORD MOTOR COMPANY

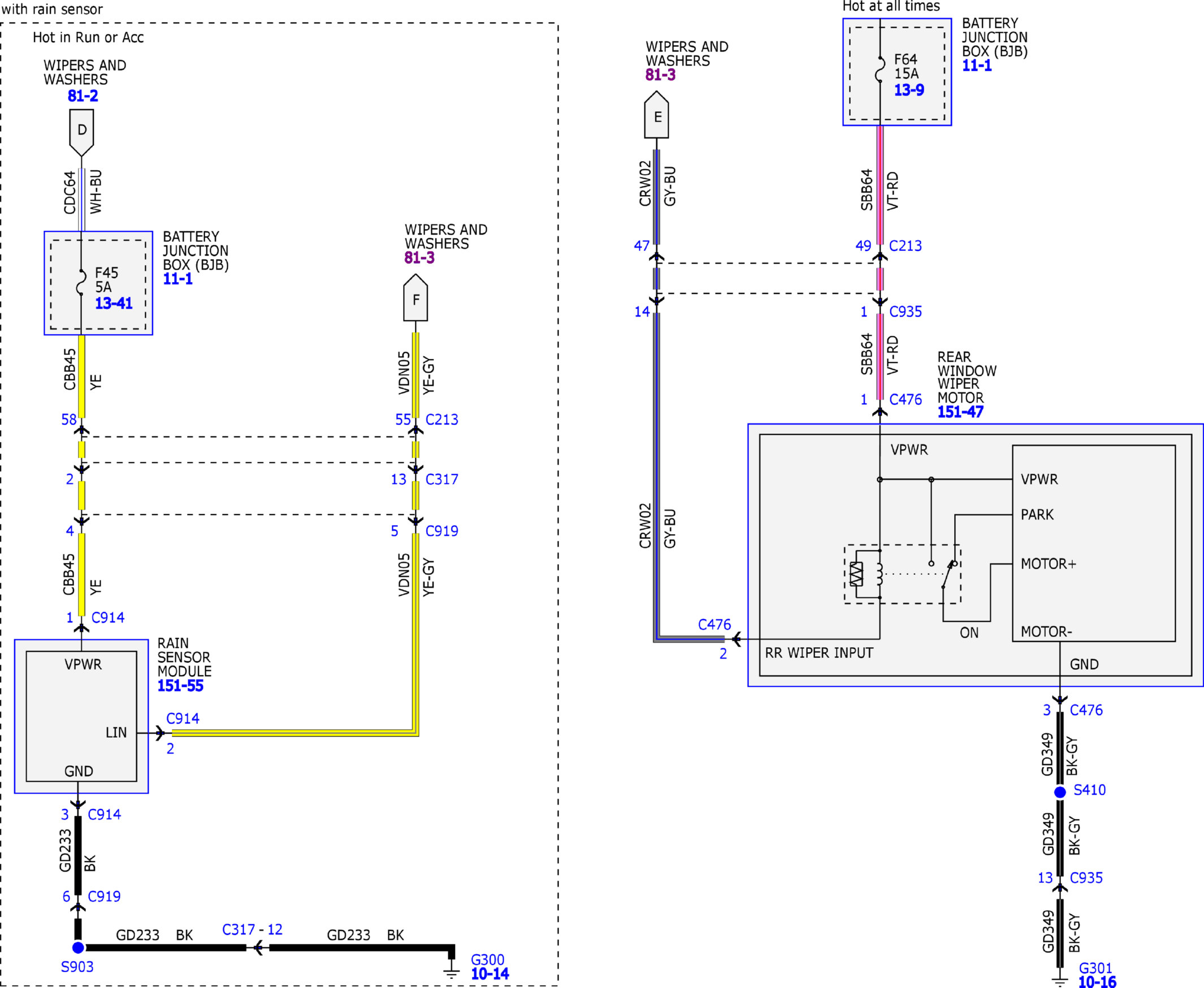

Fig 2: Wipers System And Washers System Wiring Diagrams (2 Of 4)
Courtesy of FORD MOTOR COMPANY

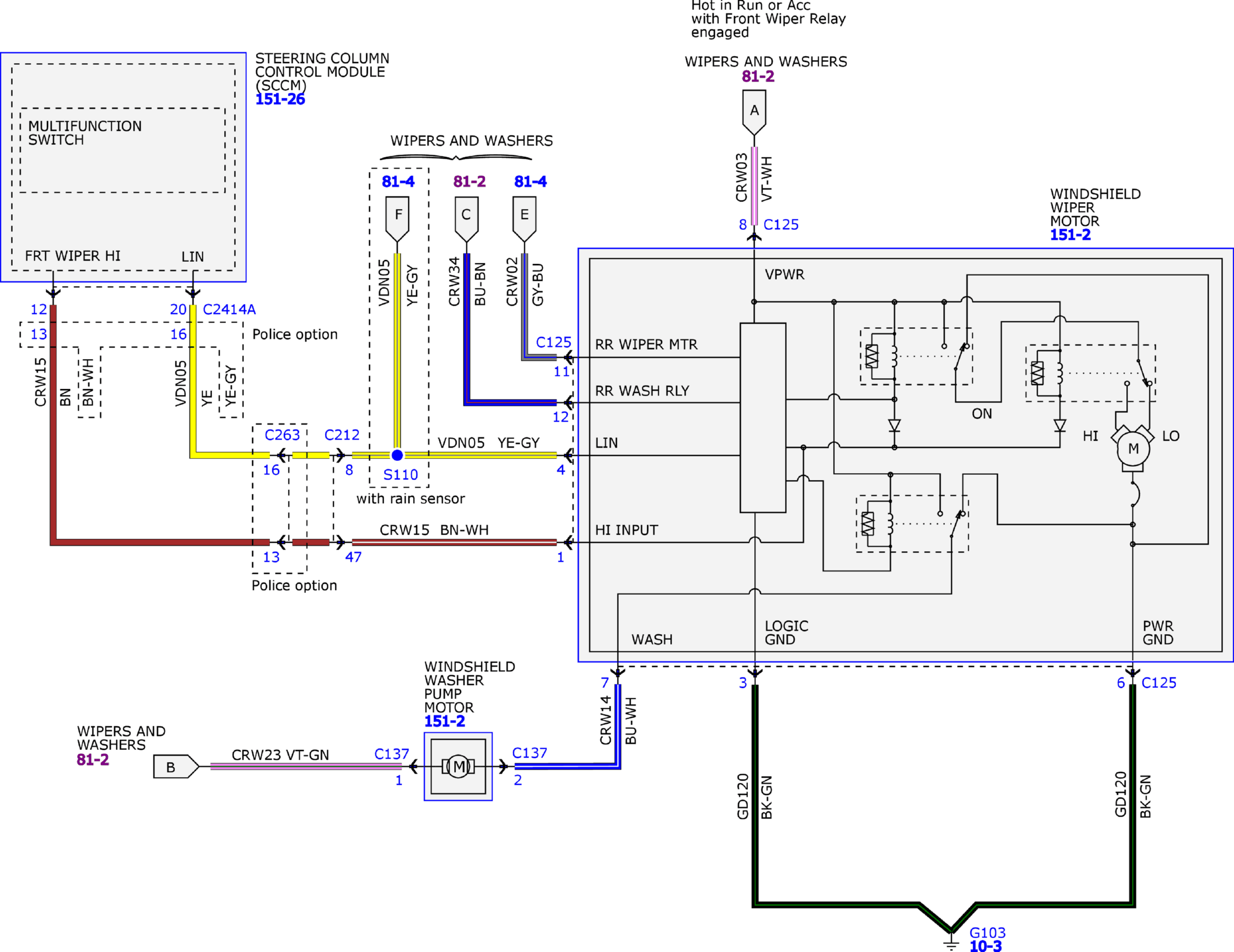

Fig 3: Wipers System And Washers System Wiring Diagrams (3 Of 4)
Courtesy of FORD MOTOR COMPANY

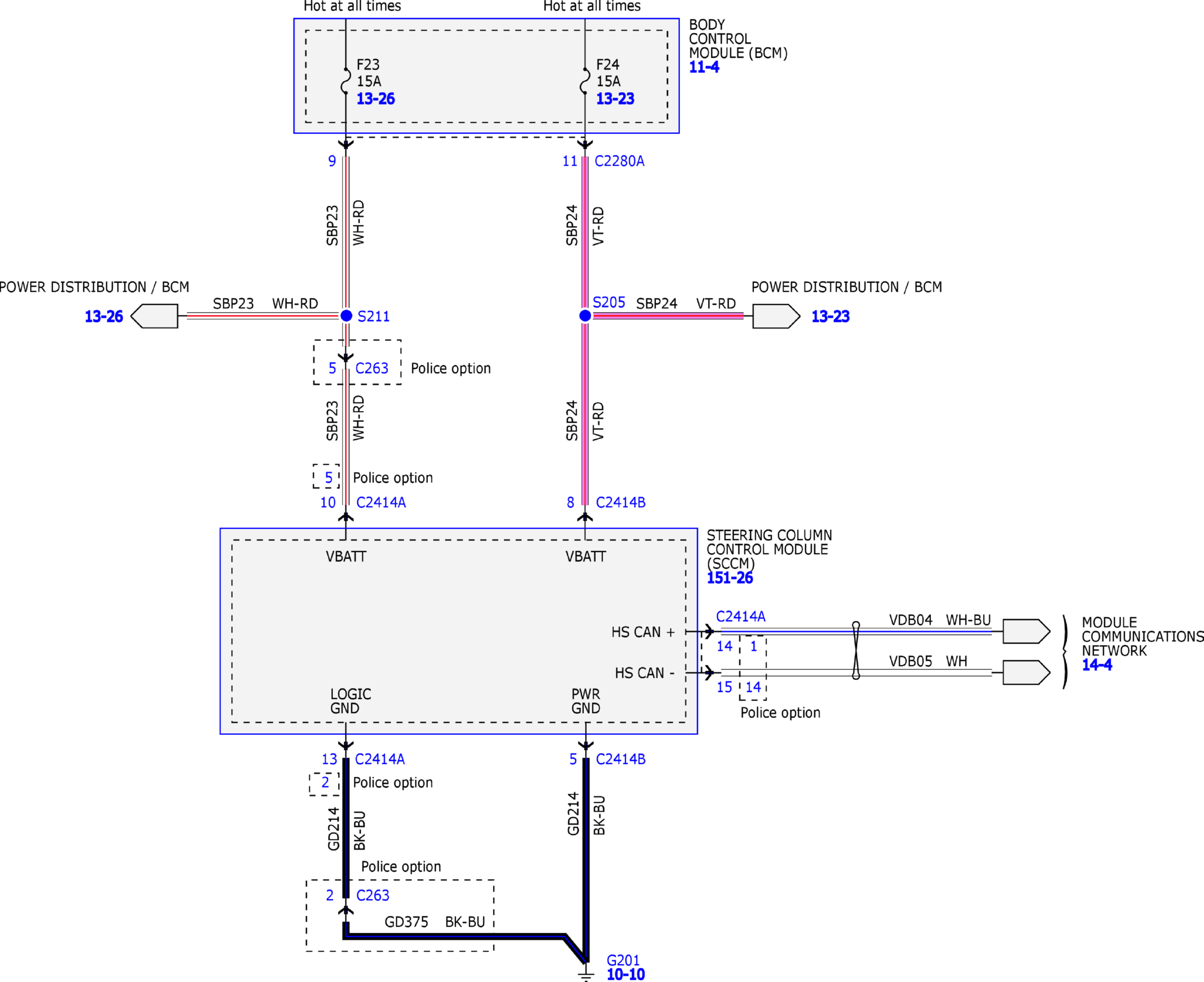

Fig 4: Wipers System And Washers System Wiring Diagrams (4 Of 4)
Courtesy of FORD MOTOR COMPANY
