Auxiliary Blower Motor: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

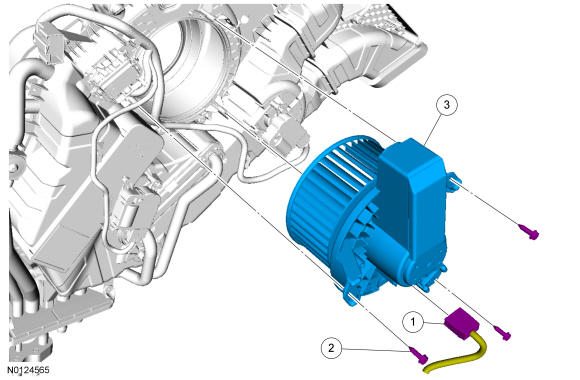

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | Auxiliary blower motor electrical connector (part of 19949) | - | - | - | |
| 2 | W701696 | Auxiliary blower motor screw (3 required) | - | - | - |
| 3 | 19805 | Auxiliary blower motor | - | - | - |
