Auxiliary Climate Control Housing: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft® PAG Refrigerant Compressor Oil YN-12-D | WSH-M1C231-B |

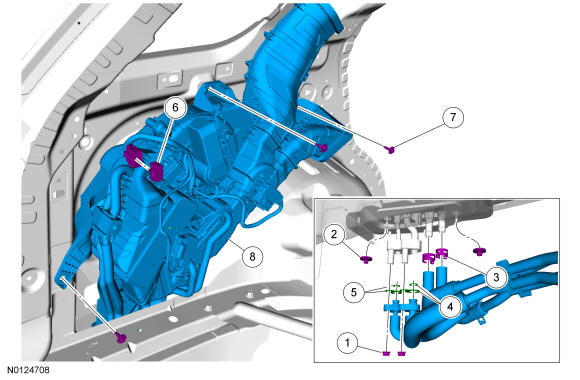

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W520413 | Auxiliary evaporator outlet and inlet line floorpan fitting nut (2 required) | - | - | 15 Nm (133 lb-in) |
| 2 | N800889 | Auxiliary climate control housing floorpan bracket nut (2 required) | - | - | 9 Nm (80 lb-in) |
| 3 | W527359 | Auxiliary heater outlet and inlet line clamp (2 required) | - | - | - |
| 4 | 19B596 | O-ring seal and gasket seal kit | - | - | - |
| 5 | 19B596 | O-ring seal and gasket seal kit | - | - | - |
| 6 | - | Auxiliary climate control housing wire harness electrical connector (part of 19949) | - | - | - |
| 7 | W710330 | Auxiliary climate control housing bolt (3 required) | - | - | 9 Nm (80 lb-in) |
| 8 | 18C424 | Auxiliary climate control housing | - | - | - |
