Auxiliary Heater Core: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

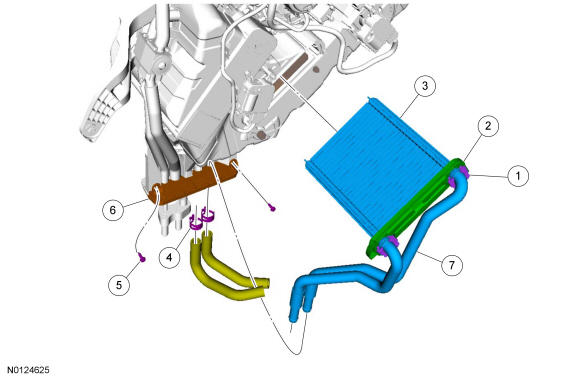

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | Auxiliary heater core tube clip (2 required) (part of 18476 kit) | - | - | - |
| 2 | 18B299 | Auxiliary heater core access cover | - | - | - |
| 3 | 18476 | Auxiliary heater core | - | - | - |
| 4 | W527359 | Rear auxiliary heater outlet and inlet line heater hose clamp (2 required) | - | - | - |
| 5 | W701696 | Auxiliary line floorpan bracket screw (2 required) | - | - | - |
| 6 | - | Auxiliary line floorpan bracket (part of 18C424) | - | - | - |
| 7 | - | Heater core tube (part of 18476 kit) | - | - | - |
