Auxiliary Heater Outlet and Inlet Line: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft® PAG Refrigerant Compressor Oil YN-12-D | WSH-M1C231-B |

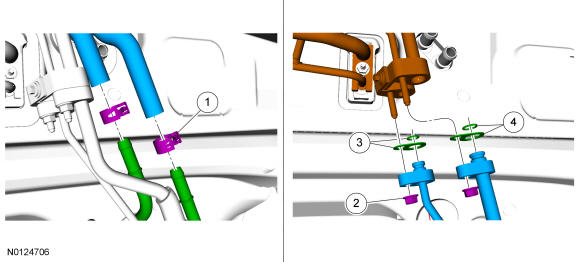

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W527359 | Front auxiliary heater outlet and inlet line heater hose clamp (2 required) | - | - | - |
| 2 | W520413 | Front auxiliary evaporator outlet and inlet line fitting nut (2 required) | - | - | 15 Nm (133 lb-in) |
| 3 | 19B596 | O-ring seal and gasket seal kit | - | - | - |
| 4 | 19B596 | O-ring seal and gasket seal kit | - | - | - |

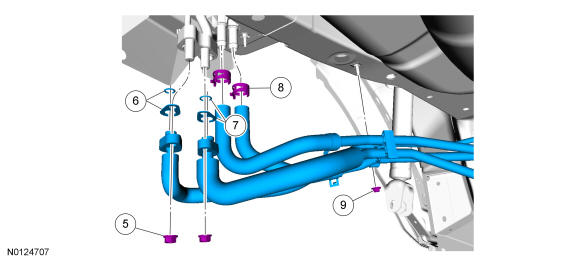

| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 5 | W520413 | Rear auxiliary evaporator outlet and inlet line fitting nut (2 required) | - | - | 15 Nm (133 lb-in) |
| 6 | 19B596 | O-ring seal and gasket seal kit | - | - | - |
| 7 | 19B596 | O-ring seal and gasket seal kit | - | - | - |
| 8 | W527359 | Rear auxiliary heater outlet and inlet line clamp (2 required) | - | - | - |
| 9 | W707137 | Rear auxiliary line bracket nut | - | - | 5 Nm (44 lb-in) |

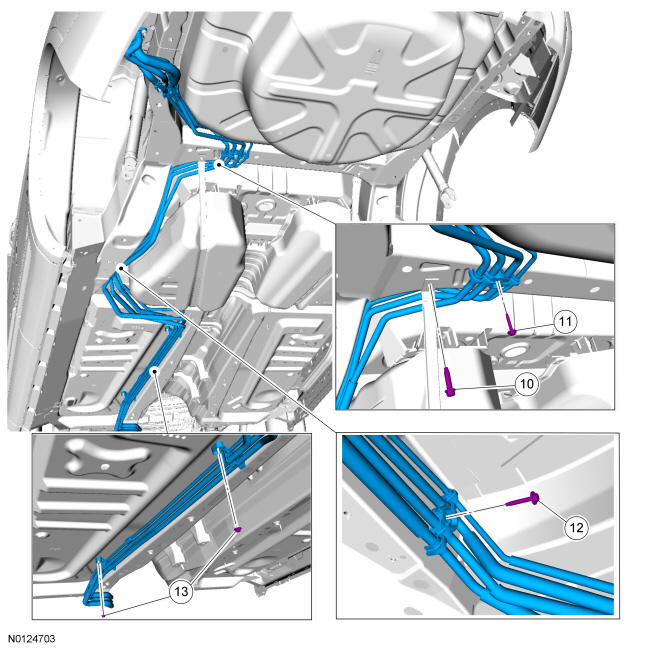

| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 10 | N811781 | Fuel tank strap bolt | - | - | 35 Nm (26 lb-ft) |
| 11 | W505427 | Auxiliary line bracket bolt | - | - | 5 Nm (44 lb-in) |
| 12 | W505427 | Auxiliary line bracket bolt | - | - | 5 Nm (44 lb-in) |
| 13 | W707137 | Auxiliary line bracket nut (2 required) | - | - | 5 Nm (44 lb-in) |
