Connector End View (C4242) - THIRD ROW POWER SEAT LATCH SWITCH, RIGHT

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CPSC0 (BU-GY)

20

SWITCH - 3RD ROW SEAT LATCH RIGHT

2

RPSB0 (BN-WH)

20

SWITCH - 3RD ROW SEAT LATCH RETURN

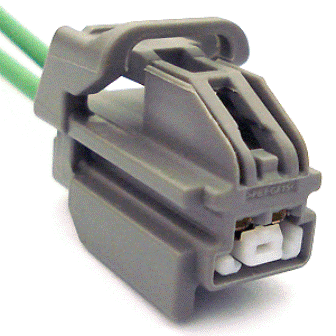

Available Pigtail Kits

Pigtail Kit Part Number

WPT-965

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-AEB

Gauge:

14

Pin material:

Silver

Cavities:

2

Vehicle Uses

Actuator - Door Lock - Decklid/Liftgate

Element - Heated Seat

Lamp - CHMSL (Center High Mount Stop Lamp)

Module - Heated Seat

Motor - Adjustable Pedal

Motor - Decklid / Liftgate

Sensor - Air Charge Temperature

Sensor - EATC In Car Temperature

Speaker - Subwoofer

Switch - Adjustable Pedal

Switch - Brake Deactivation

Switch - Brake Pressure

Switch - Clutch Pedal Position

Switch - Stop Lamp

Switch - Third Row Power Folding Seat
