Auxiliary Temperature Blend Door Actuator: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

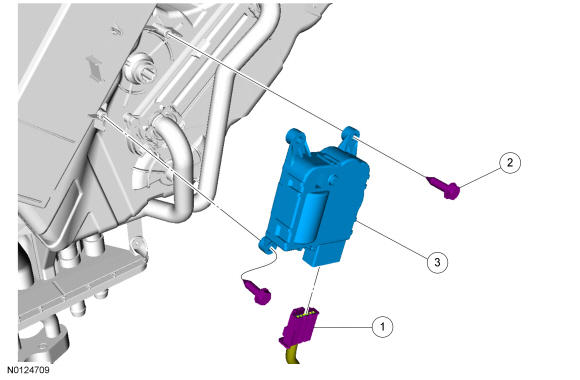

Exploded View
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | Auxiliary temperature blend door actuator electrical connector (part of 19949) | - | - | - |
| 2 | W701696 | Auxiliary temperature blend door actuator screw (2 required) | - | - | - |
| 3 | 19E616 | Auxiliary temperature blend door actuator | - | - | - |
