Thermostatic Expansion Valve: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft® PAG Refrigerant Compressor Oil YN-12-D | WSH-M1C231-B |

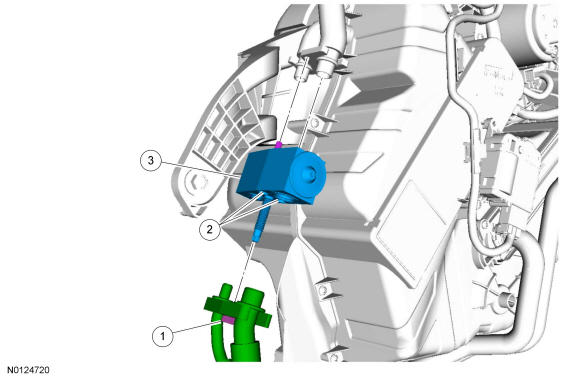

Exploded View
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W520413 | Auxiliary TXV fitting nut | 15 Nm (133 lb-in) | - | - |
| 2 | - | TXV bolt (2 required) (part of 19849 kit) | 8 Nm (71 lb-in) | - | - |
| 3 | 19849 | TXV | - | - | - |
