Axle Assembly: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

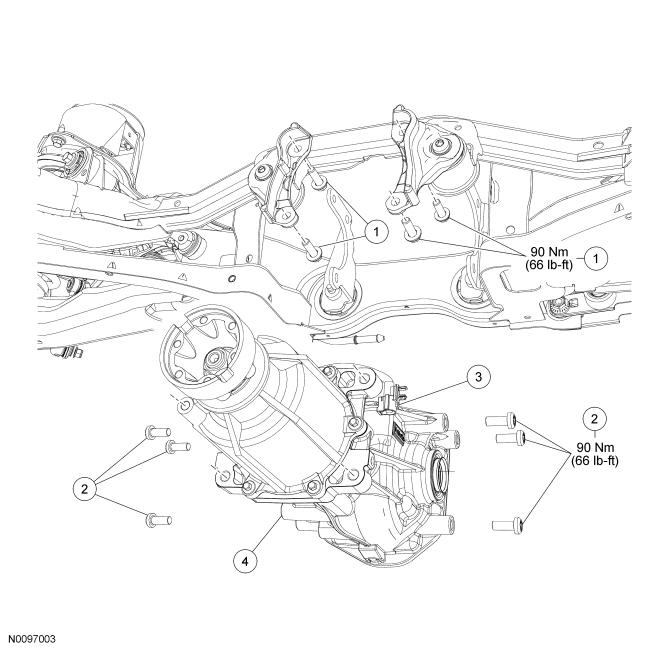

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W713482 | Differential housing-to-front insulator bracket bolts (4 required) | - | - | 90 Nm (66 lb-ft) |
| 2 | W709862 | Side insulator bracket-to-rear axle differential bolts (6 required) | - | - | 90 Nm (66 lb-ft) |
| 3 | - | ATC electrical connector (part of 4000) | - | - | - |
| 4 | 4000 | Rear axle assembly | - | - | - |
