Drive Pinion Seal: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

SPECIAL TOOL(S)

Courtesy of FORD MOTOR COMPANY	2 Jaw Puller 205-D072D97L-4221-A
Courtesy of FORD MOTOR COMPANY	Holding Fixture, Drive Pinion Flange 205-126T78P-4851-A
Courtesy of FORD MOTOR COMPANY	Installer, Drive Pinion Oil Seal 205-133T79P-4676-A
Courtesy of FORD MOTOR COMPANY	Remover, Torque Converter Fluid Seal 307-309T94P-77001-BH
Courtesy of FORD MOTOR COMPANY	Slide Hammer 100-001T50T-100-A

MATERIAL

Item	Specification
Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada)	ESA-M1C75-B

Exploded View

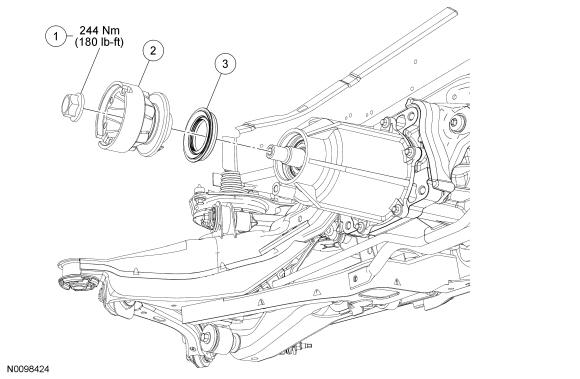

Fig 1: Exploded View Of Drive Pinion Seal With Torque Specifications

GFD33793

Courtesy of FORD MOTOR COMPANY

Item	Service Part Number	Description	Tool Number	Material Name	Notes
1	4320	Pinion nut	205-126 T78P-4851-A	-	244 Nm (180 lb-ft)
2	4851	Pinion flange	205-D072 D97L-4221-A	-	-
3	4N046	Pinion seal	307-309 T94P-77001-BH, 100-001 T50T-100-A, 205-133 T79P-4676-A	-	-
